ASUS Azoth X 75% Mechanical Keyboard - NX Storm V2, Per-key RGB, Tri-mode (BT/2.4/Wired)
  • 1000Hz, N-key rollover, All keys programmable, Hot-swap, OLED

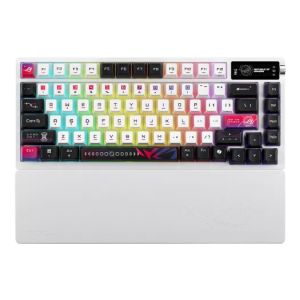

IMG 1 of 1
Our Price:
$393.80
RRP:
$403.92
You Save:
$10.12
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
556548
(?) Brand:
ASUS Web Site
Manuf No:
ROG AZOTH X STORM SWITCH
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
4711387897546, 6516746, ROG AZOTH X STORM SWITCH

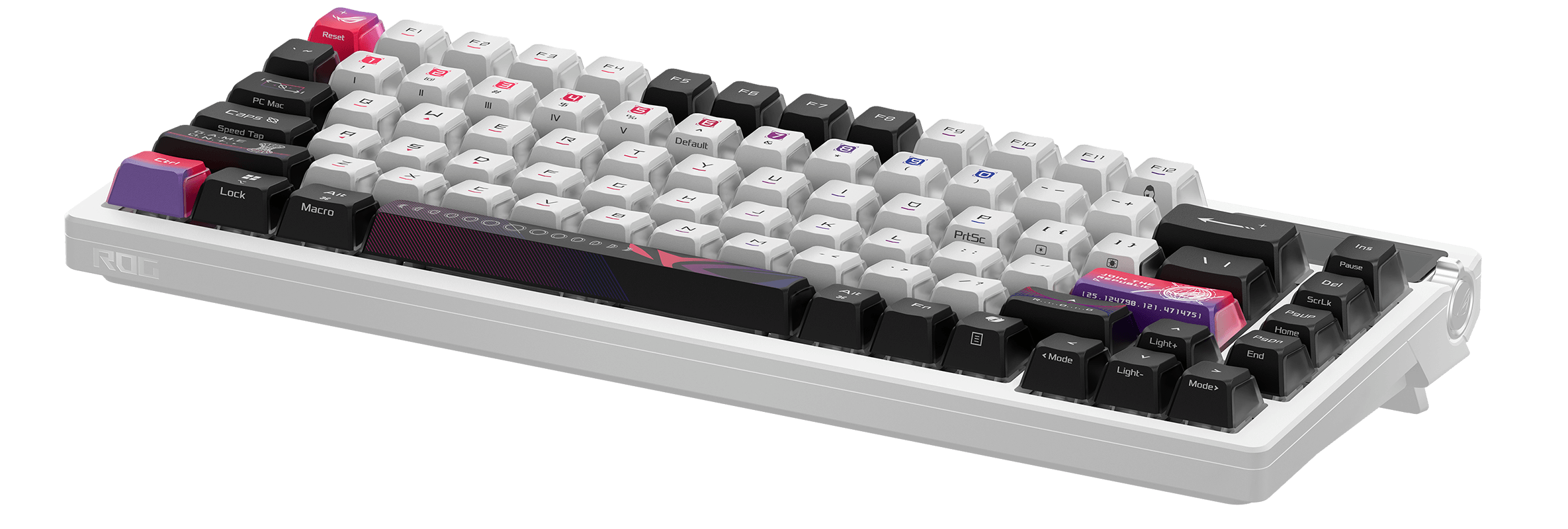

ROG Azoth X Gaming Keyboard

ROG Azoth X 75% custom gaming keyboard with hot-swappable ROG NX mechanical switches V2, dye-sublimated and semi-translucent keycaps, metal top cover, gasket mount, five-layer dampening foam, FR4 positioning plate, south-facing PCB, tri-mode connection with 2.4 GHz SpeedNova technology, OLED display, three-way control knob, wrist rest, three tilt angles, and Mac support

  • Stellar-themed ROG keycaps:Special dye-sublimated keycaps are semi-translucent, allowing RGB lighting to pass through on three sides for a striking aesthetic
  • South-facing PCB:Optimized for keycap compatibility and customization, allowing for personalized setups with custom keycaps and advanced lighting effects
  • FR4 positioning plate:Provides a more flexible typing feel and low-pitched, crisp typing acoustics
  • Silicon wrist rest:Extended design ensures comfortable typing experiences while providing firm support over time
  • OLED display:Shows system info and a variety of setting indicators, with a three-way knob for intuitive control over various keyboard settings
  • Hot-swappable ROG NX Snow Mechanical Switches V2:Support more keycap profiles and deliver softer acoustics and a more refined typing feel
  • Gasket mount and five-layer dampening design:One silicone and four PORON layers absorb vibrations and switch pinging noises for sublime acoustics
  • Tri-mode connection:Connect via Bluetooth (up to three devices simultaneously), 2.4 GHz with ROG SpeedNova wireless technology, or wired USB

style, but not in product class, rather than a complete upgrade of the original Azoth.

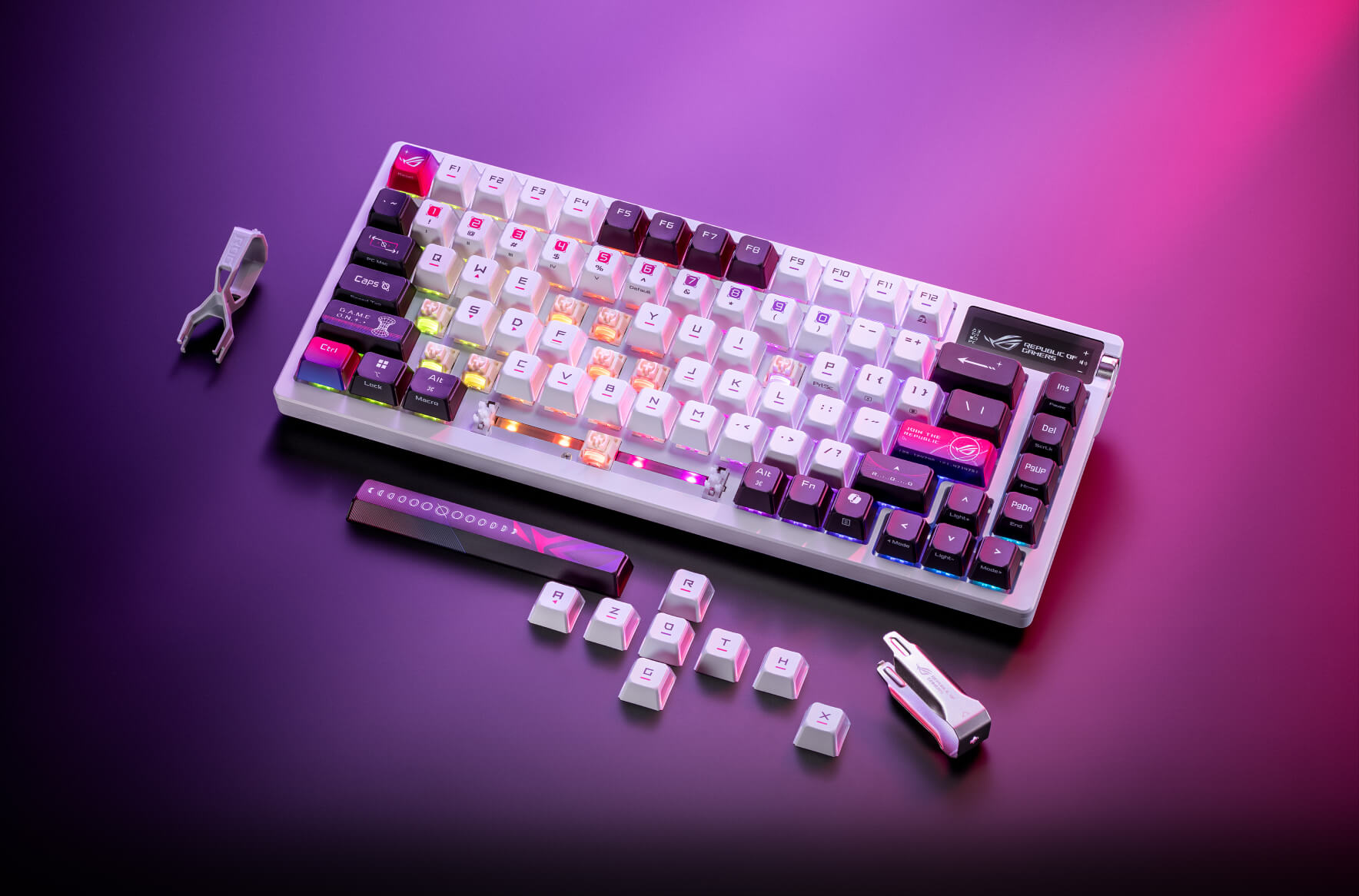

ROG Azoth X with certain keycaps removed to showcase hot-swappable feature.

CRAFTED FOR IMMERSION

The ROG Azoth X is a 75% custom gaming keyboard built for discerning gamers and keyboard enthusiasts who demand precision and versatility. It features hot-swappable ROG NX Mechanical Switches V2 and dye-sublimated Stellar-themed ROG keycaps for enhanced durability and aesthetics. A south-facing PCB ensures compatibility with a broad range of switches and keycaps, while five dampening players, a gasket mount, and an FR4 positioning plate work in unison to provide refined typing experiences. The Azoth X boasts an OLED display with intuitive controls, tri-mode connectivity including 2.4GHz ROG SpeedNova technology, a silicone wrist rest, three tilt angles, andMac support.

Three-Side Translucent &br aria-hidden="true">Dye-Sublimated Keycaps

Stylish and functional, the keycaps on Azoth X feature a three-sided semi-translucent design that amplifies RGB shine-through for a stunning visual display. The front and top of each keycap is dye-sublimated with the ROG Stellar theme, giving it a signature look while ensuring legends stay sharp and vibrant even after countless gaming sessions.

ROG Azoth X on a clean surface with blue and purple ambient light

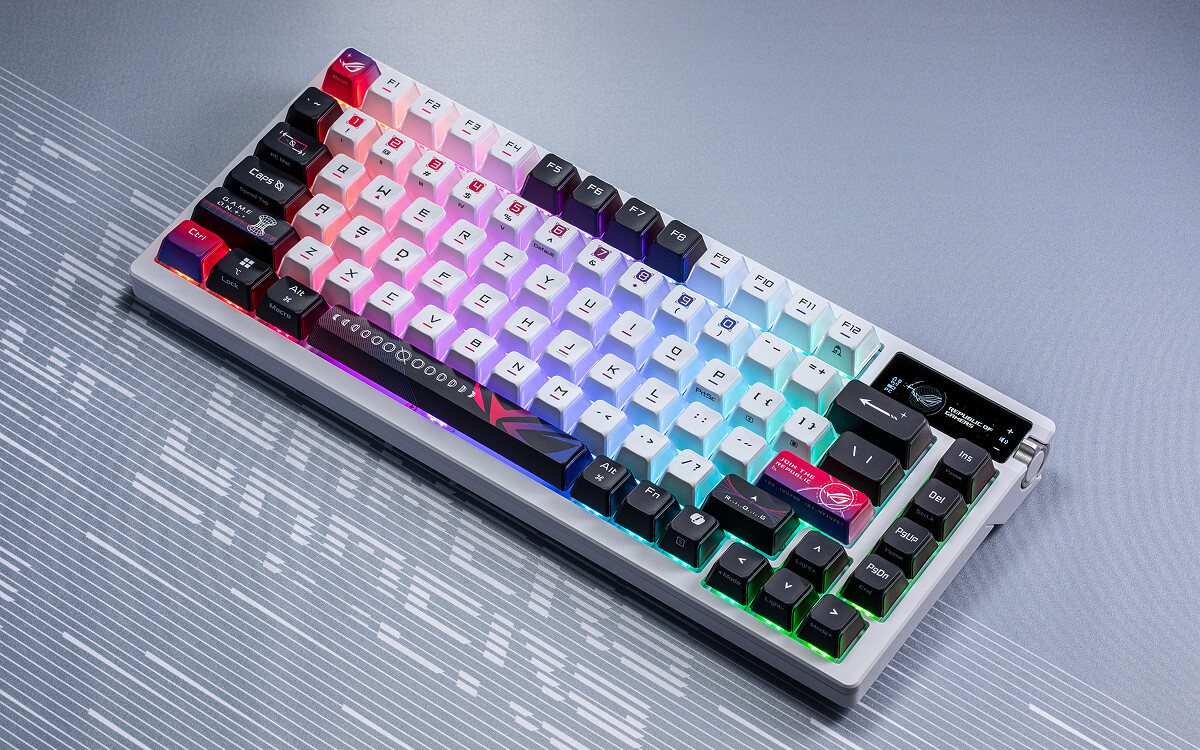

ROG Azoth X on Scabbard II Arctic Gray XXL mousepad

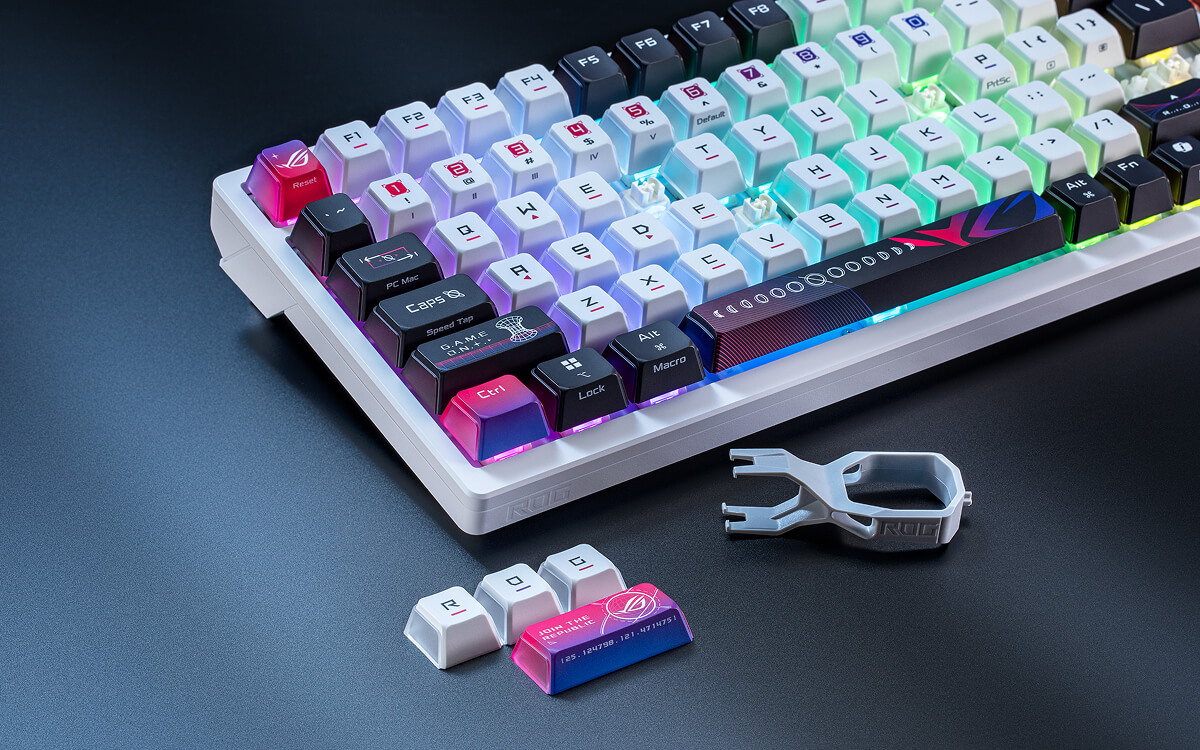

ROG Azoth X focus view with R,O,G, and enter keycaps removed and placed next to a keycap remover

OLED Display &Three-WayControl Knob

  • Animation
  • Setting Indicators
  • Audio Visualizations
  • System Monitoring

The innovative 2-inch OLED panel can show keyboard status, including Caps Lock, connection type, and PC/Mac mode indicators. It can also be used to display battery level, multimedia info, custom animations, or other system parameters such as CPU temperature. A side button and a three-way control knob provide intuitive control when selecting and adjusting various keyboard settings.

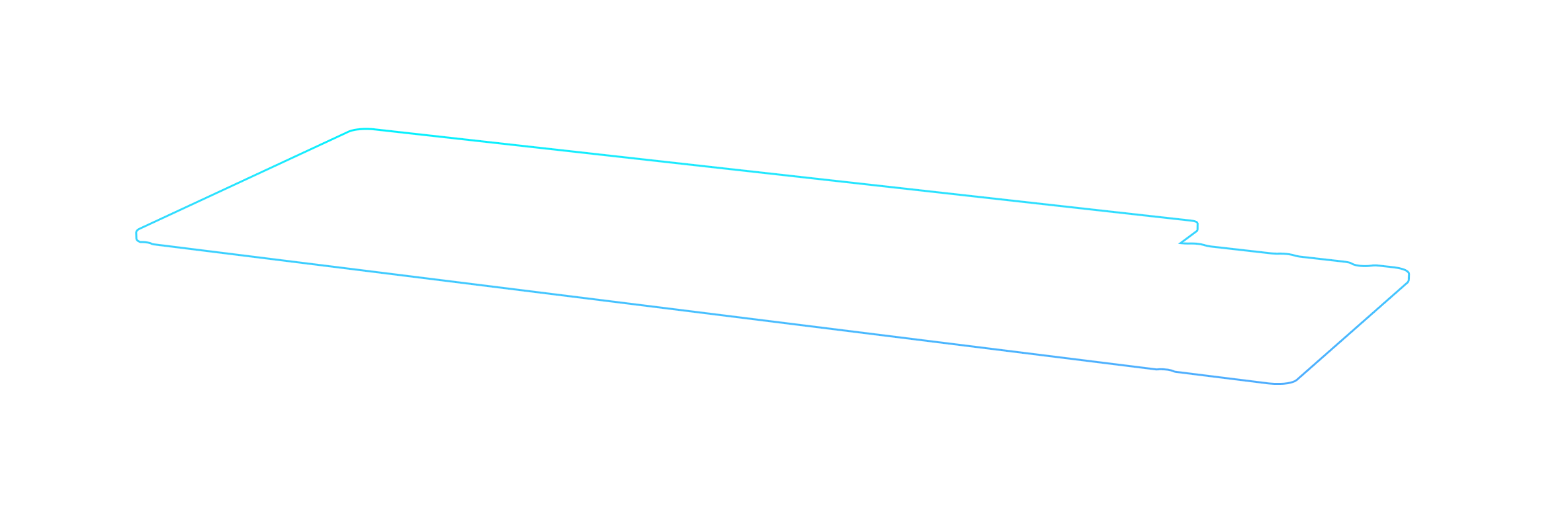

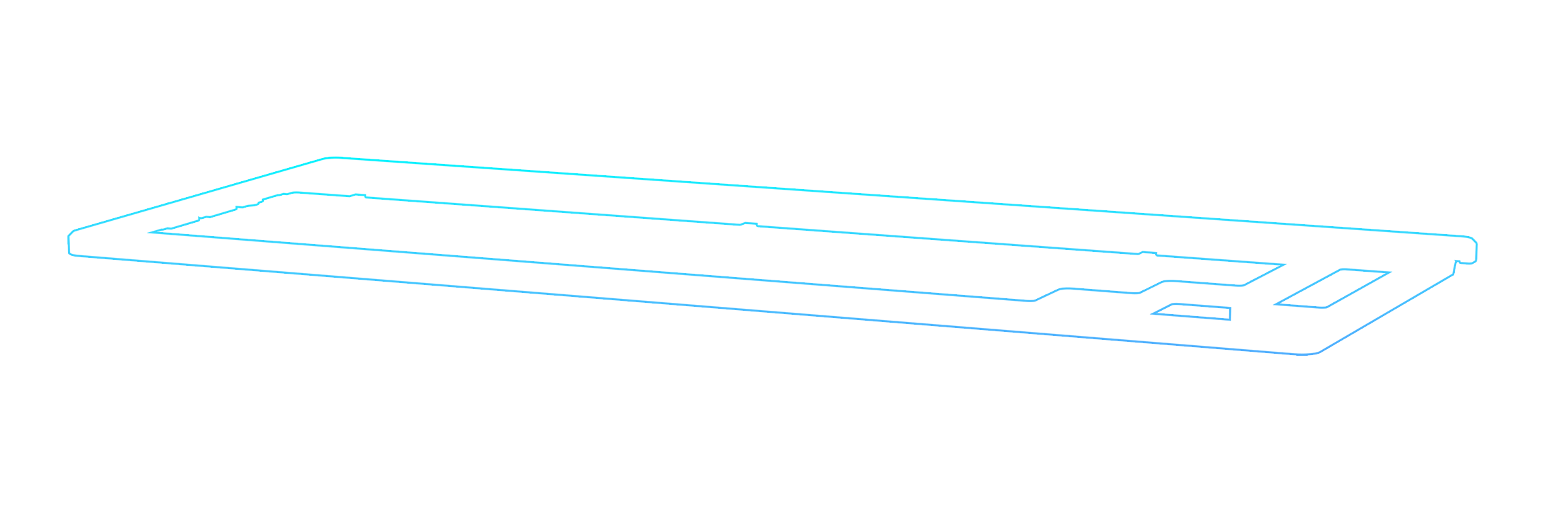

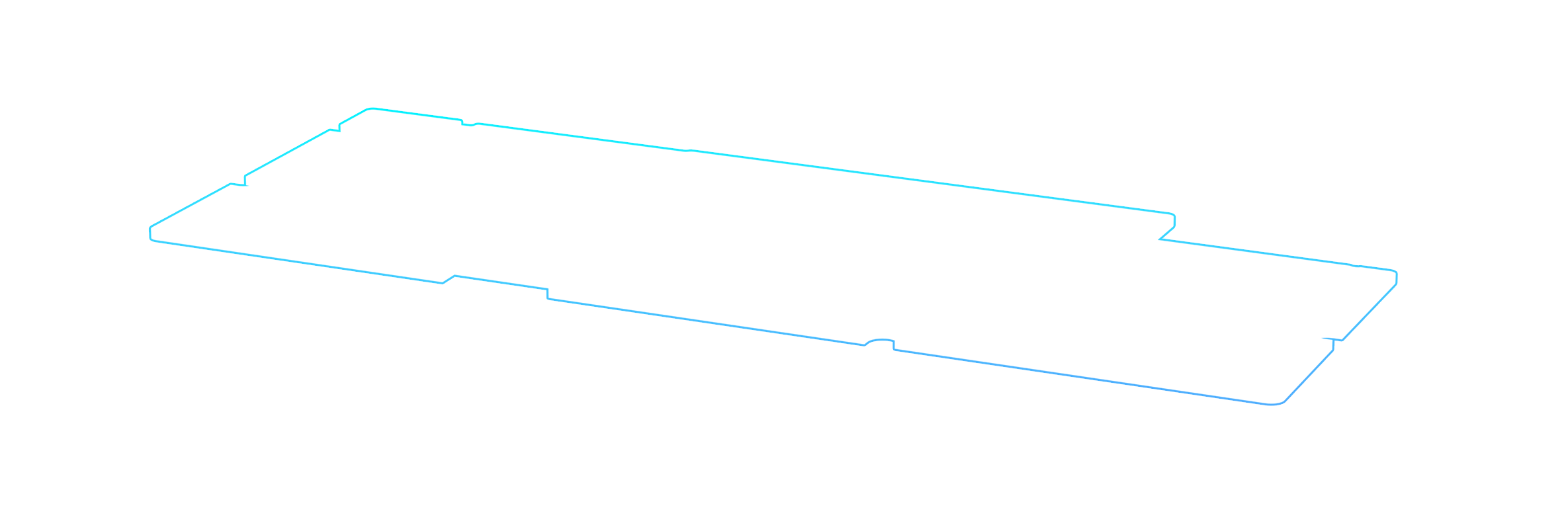

ROG Azoth disassembly into different layers of parts in an explosive view, demonstrating each of the following important layers: the gaskets layer, the silicon pad dampening layer, the PORON pad dampening layer and the bottom silicone foam dampening layer.

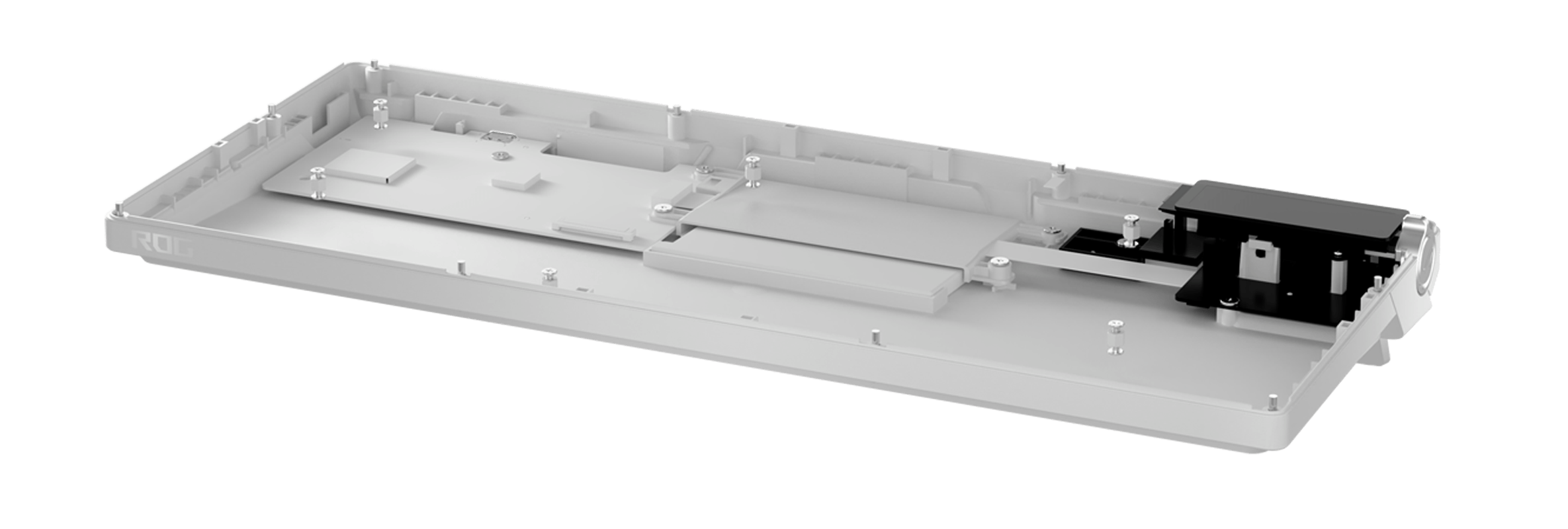

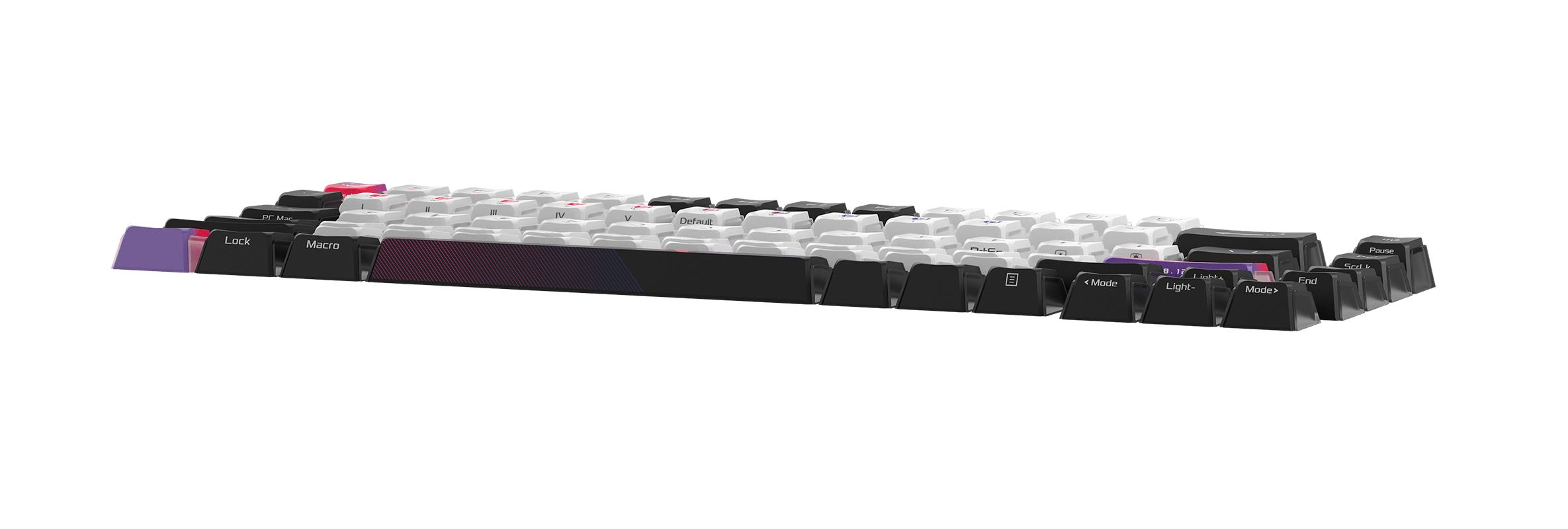

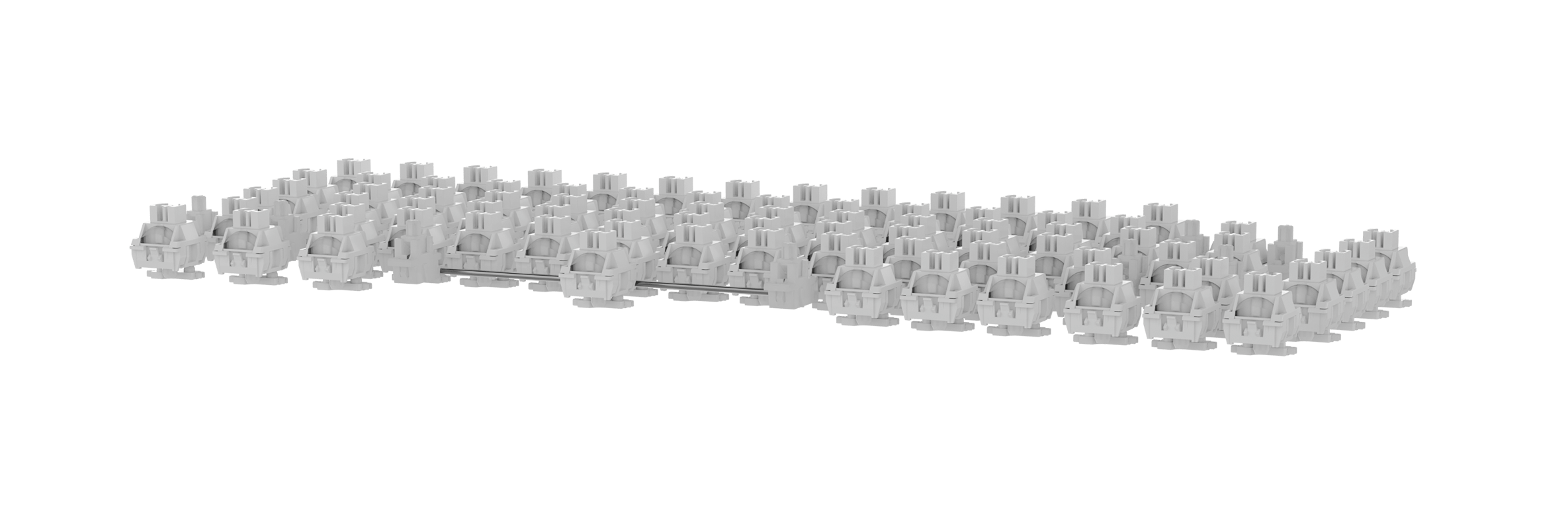

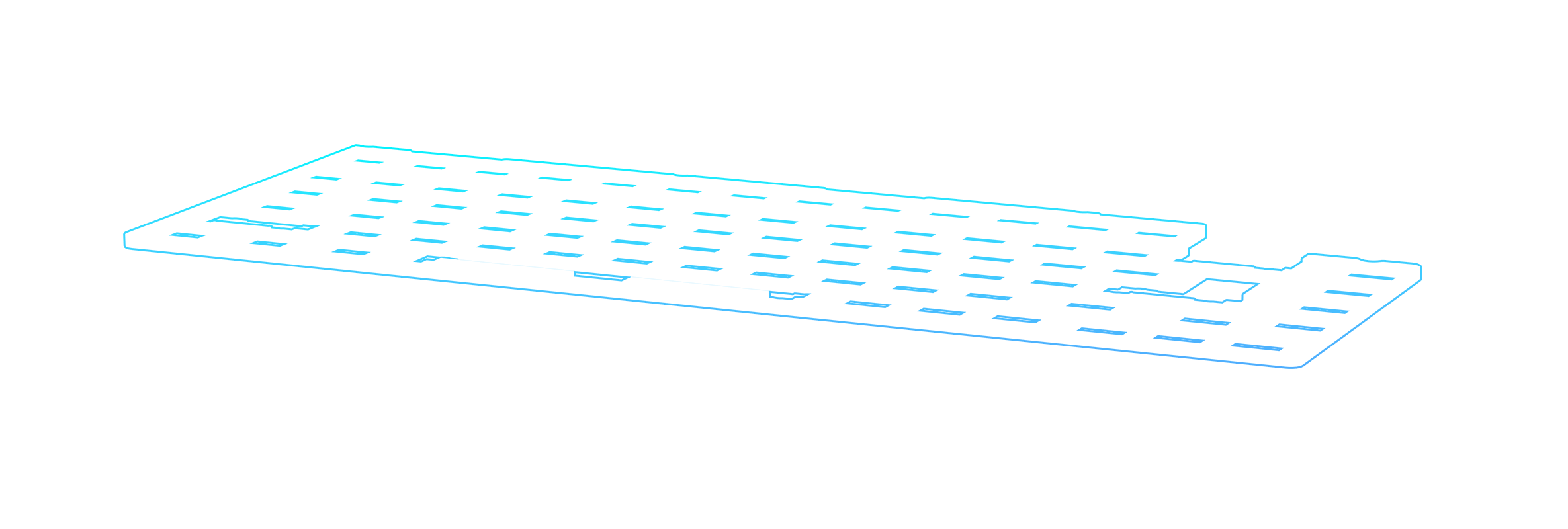

Bottom CaseSilicone PadTwo-Layer PORON Dampening FoamSouth-Facing PCBPORON Switch PadPORON Plate FoamFR4 Positioning PlatePORON GasketsTop CoverSwitchesKeycaps

Inside the Build

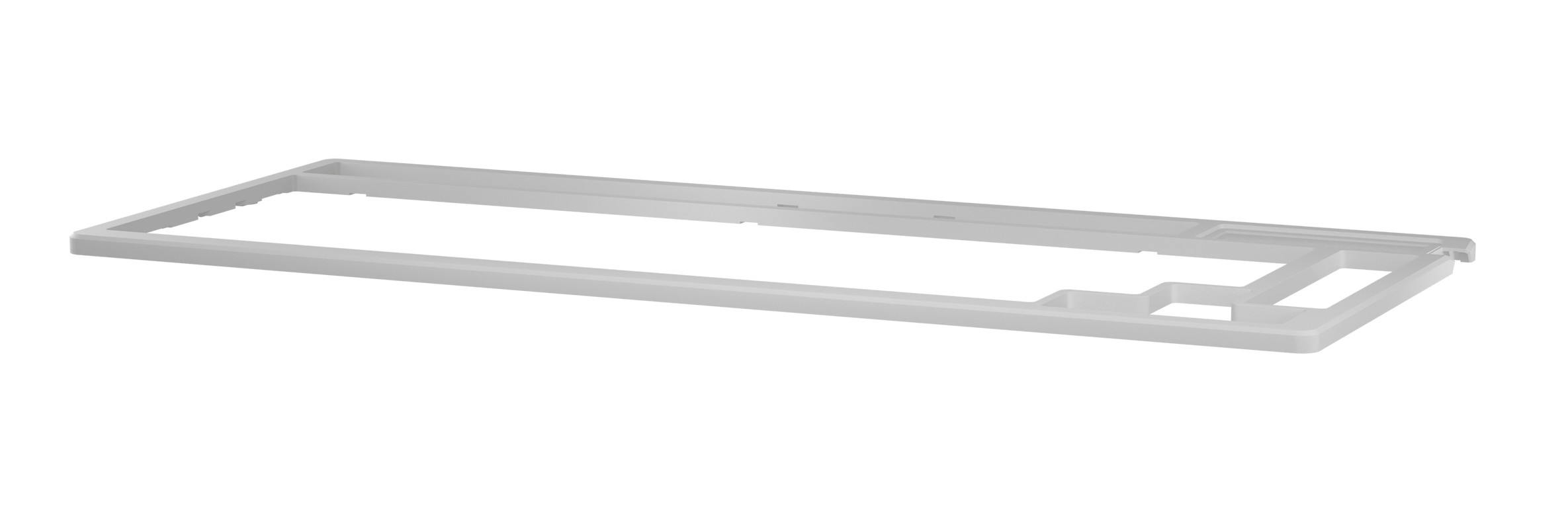

  • Top Cover

    CNC-machined aluminum top cover

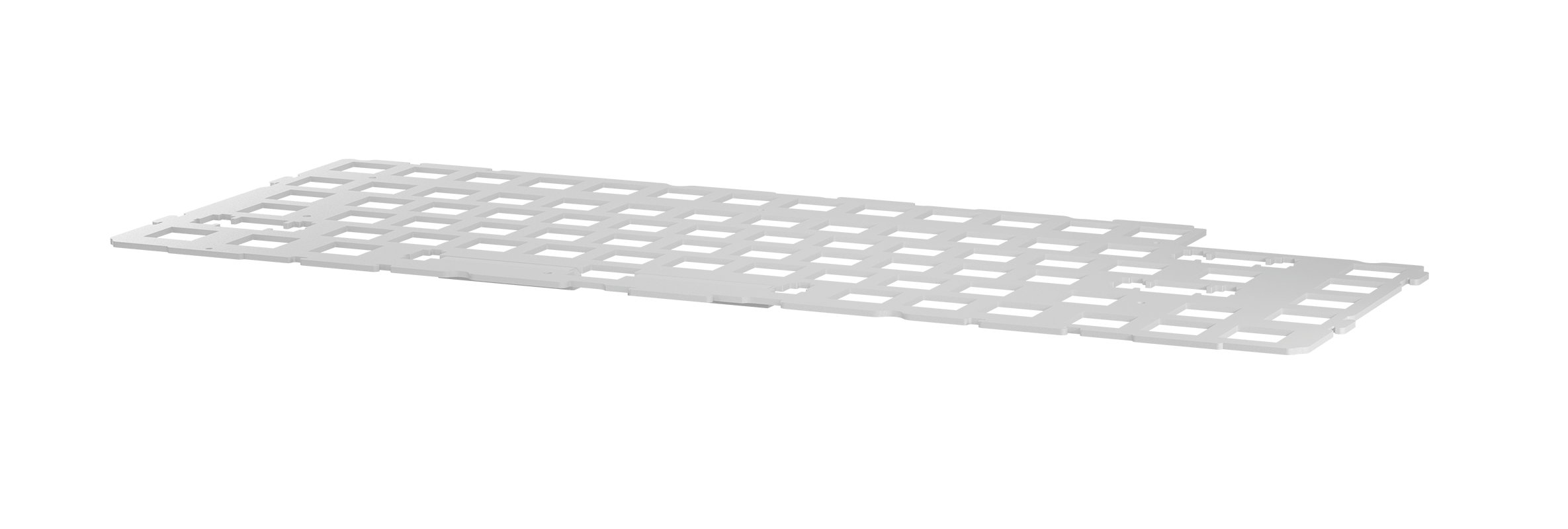

  • FR4 Positioning Plate

    Provides a moderate balance between flexibility and stiffness to dampen high-pitched noises

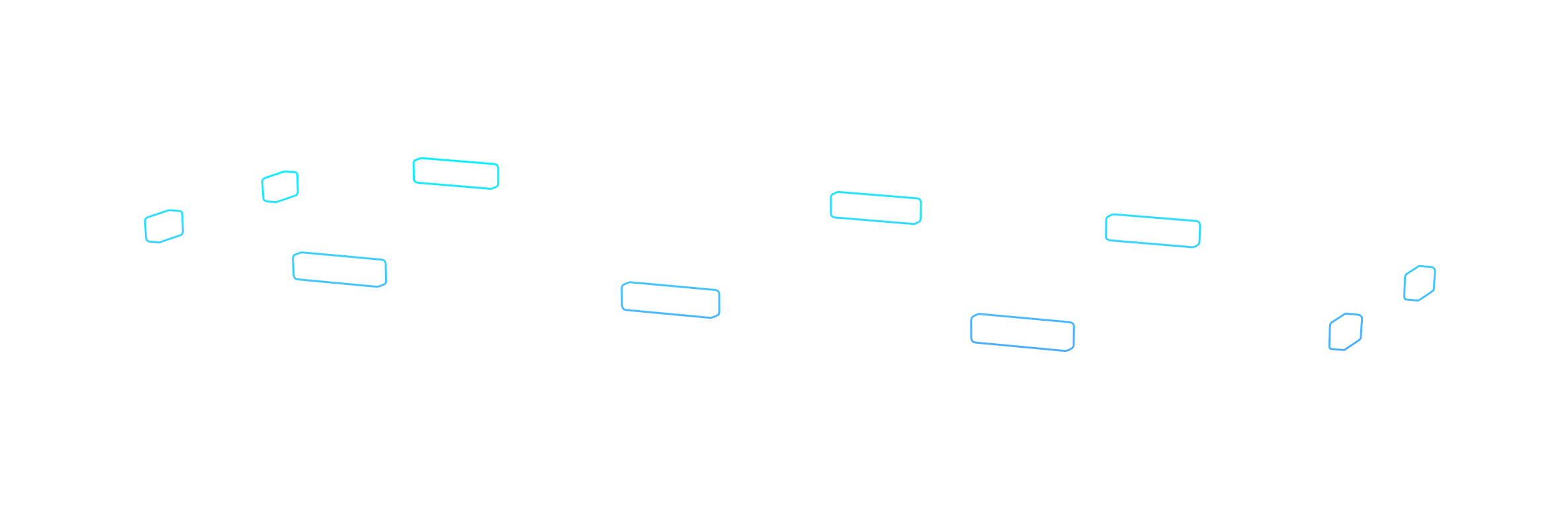

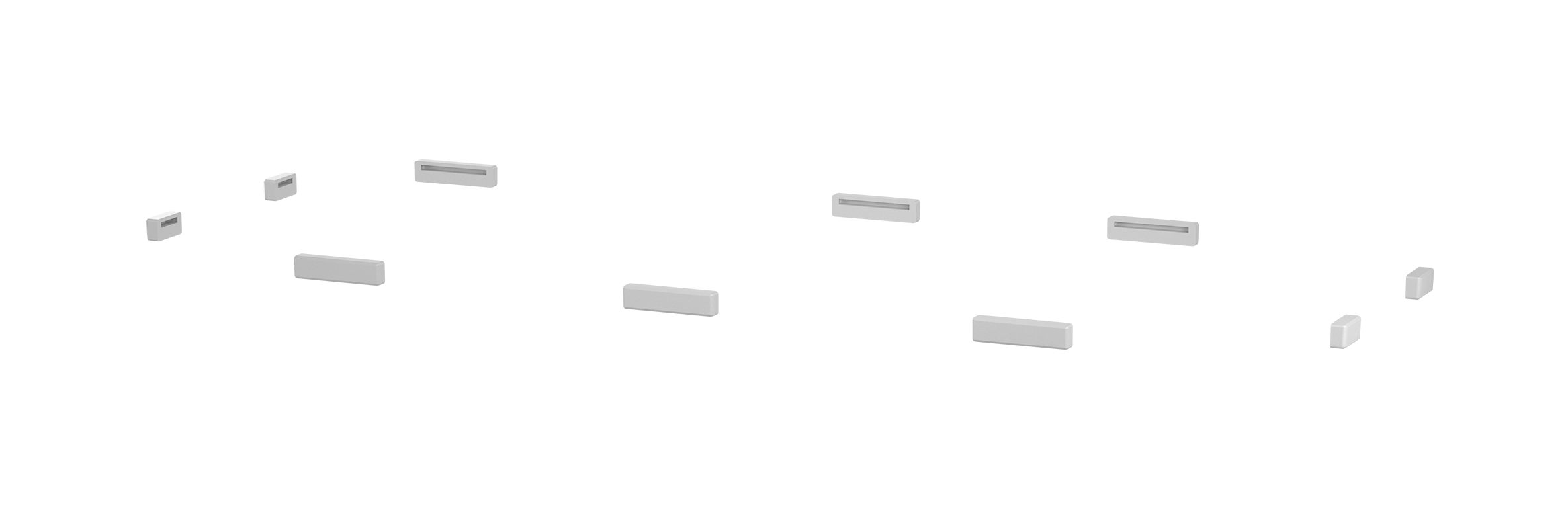

  • PORONGaskets

    Enable a more cushioned and pleasant typing feel than traditional mechanical keyboards

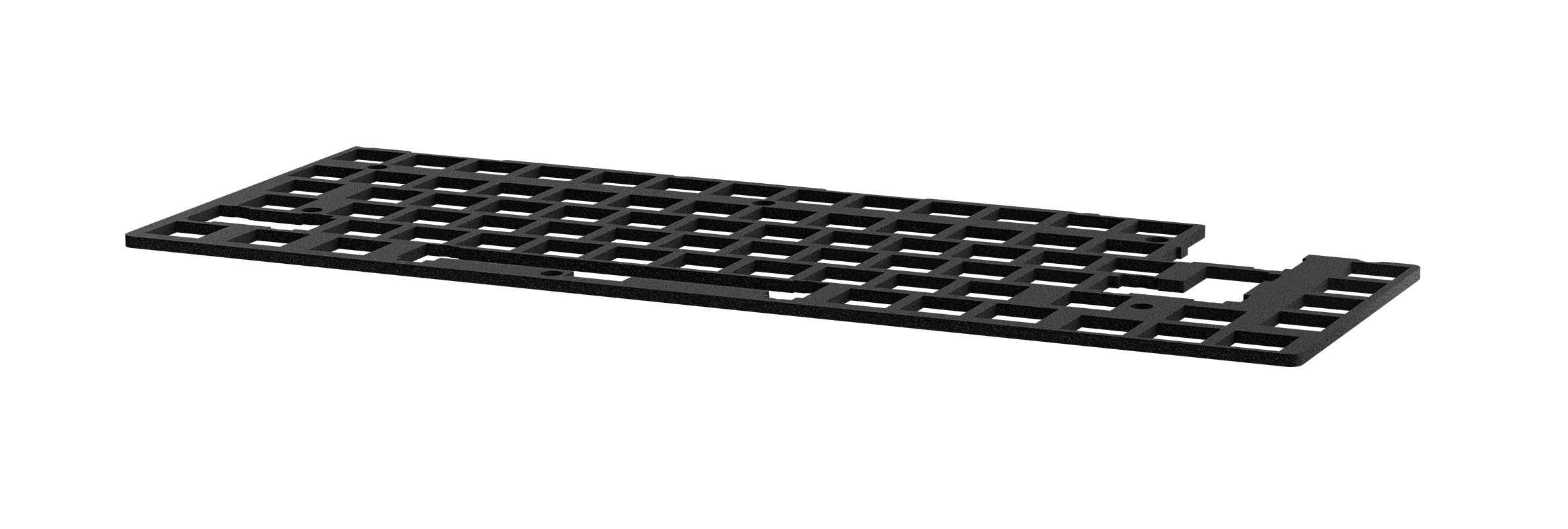

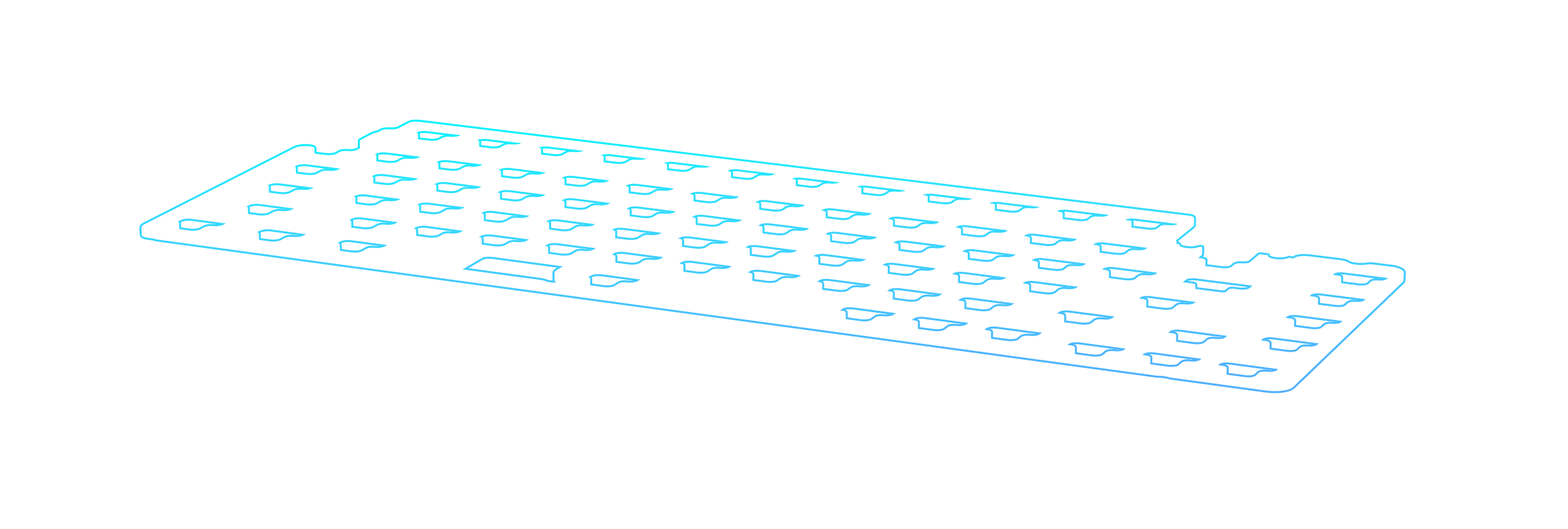

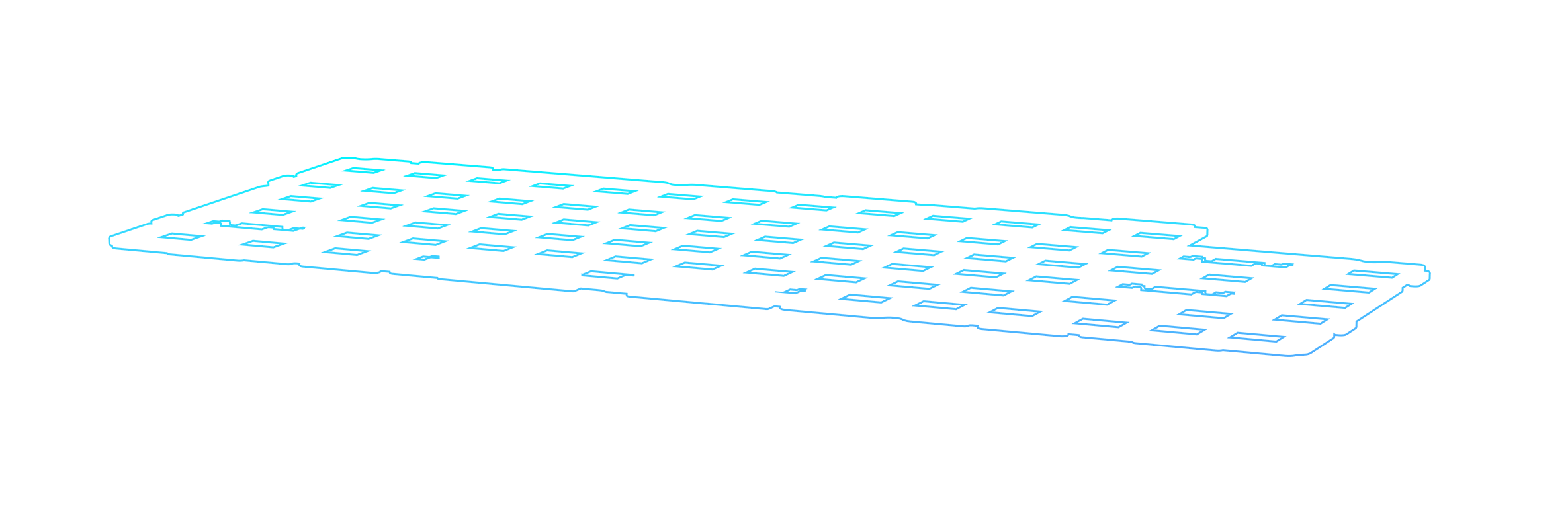

  • PORONPlate Foam

    Effectively absorbs switch pinging and hollowness

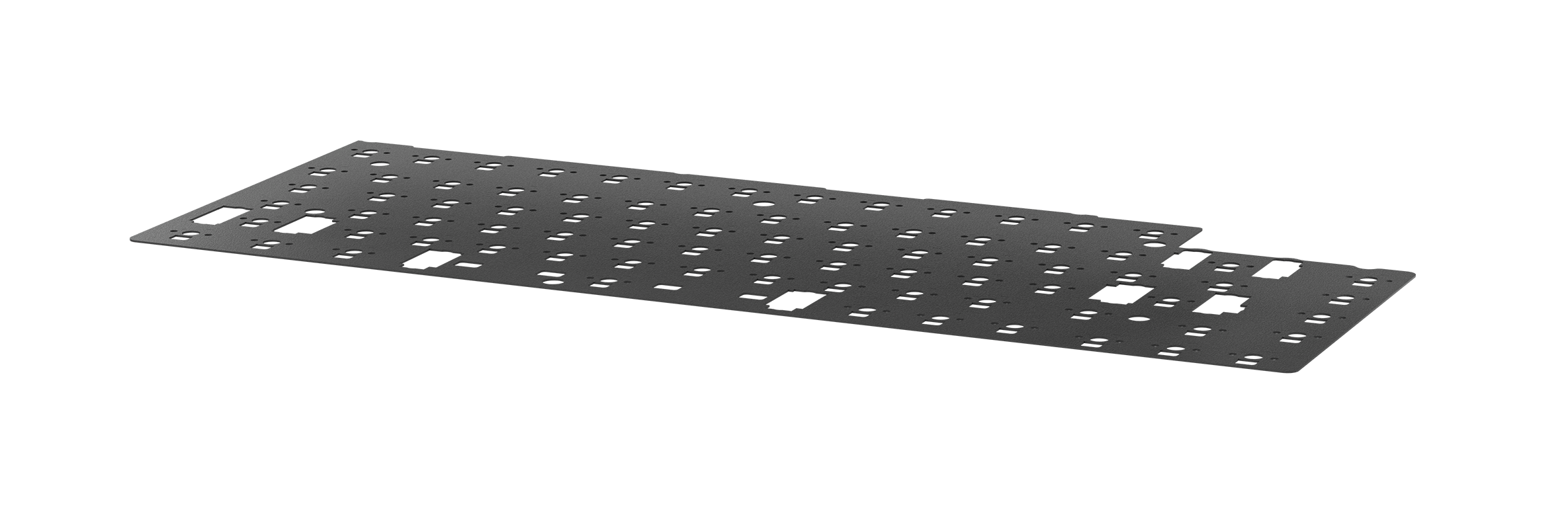

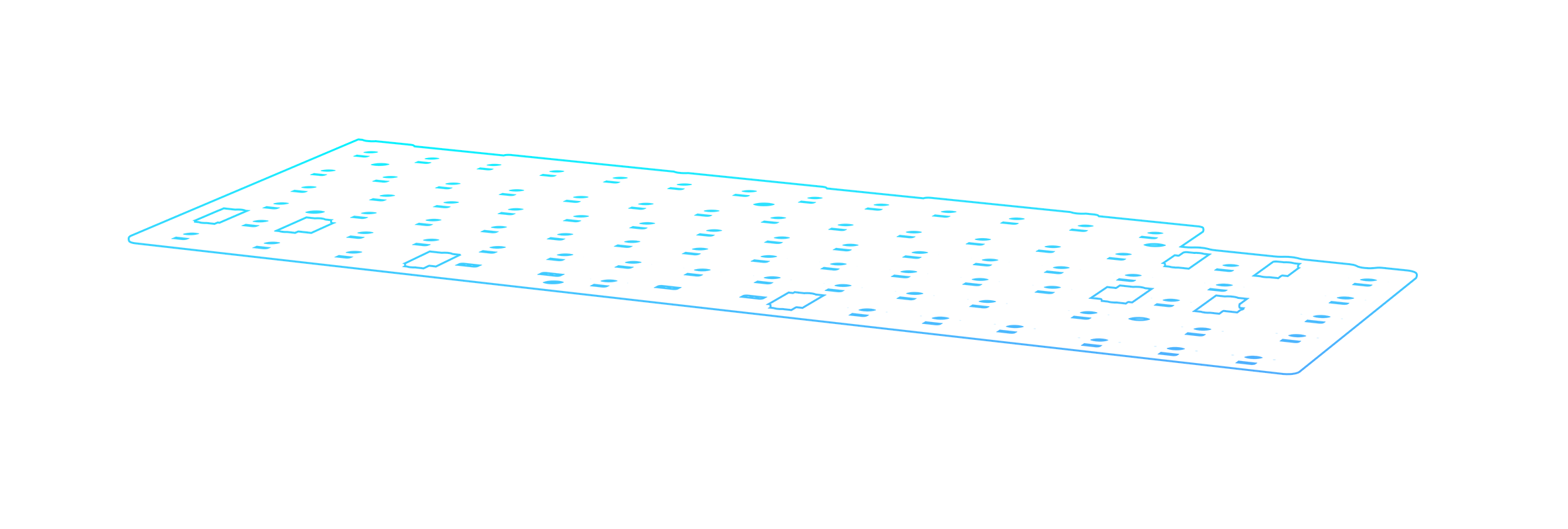

  • PORONSwitch Pad

    Cushions every keystroke, reducing the impact on the PCB

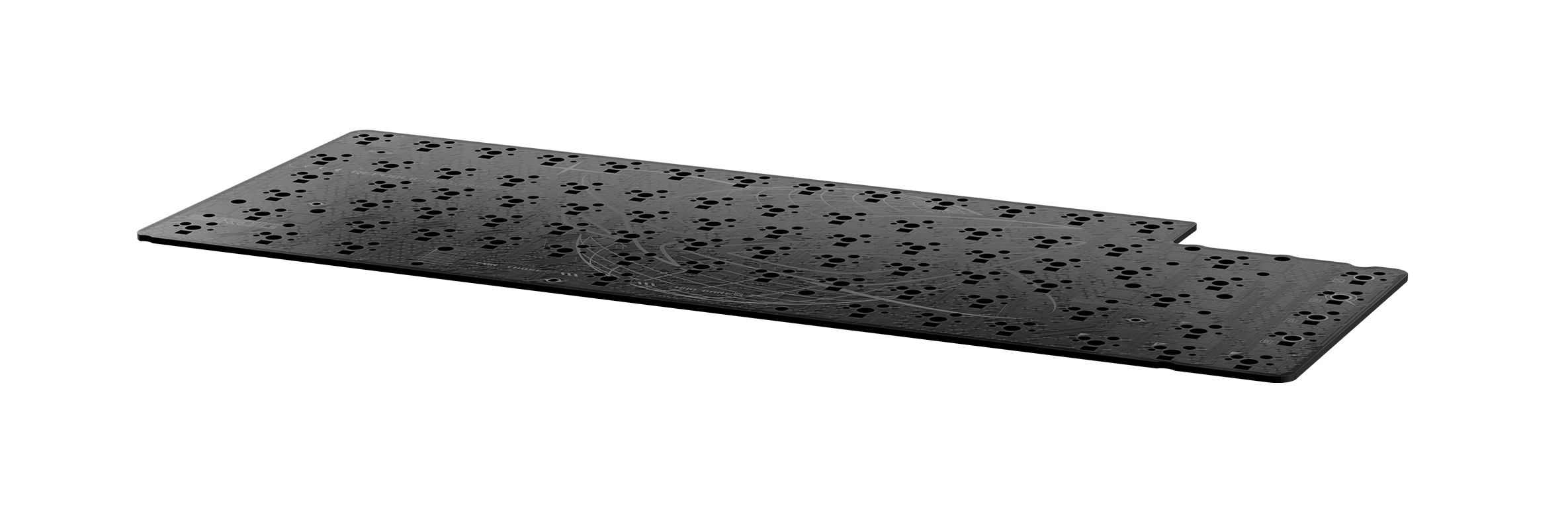

  • South-Facing PCB

    Optimizes keycap compatibility and improves lighting aesthetics

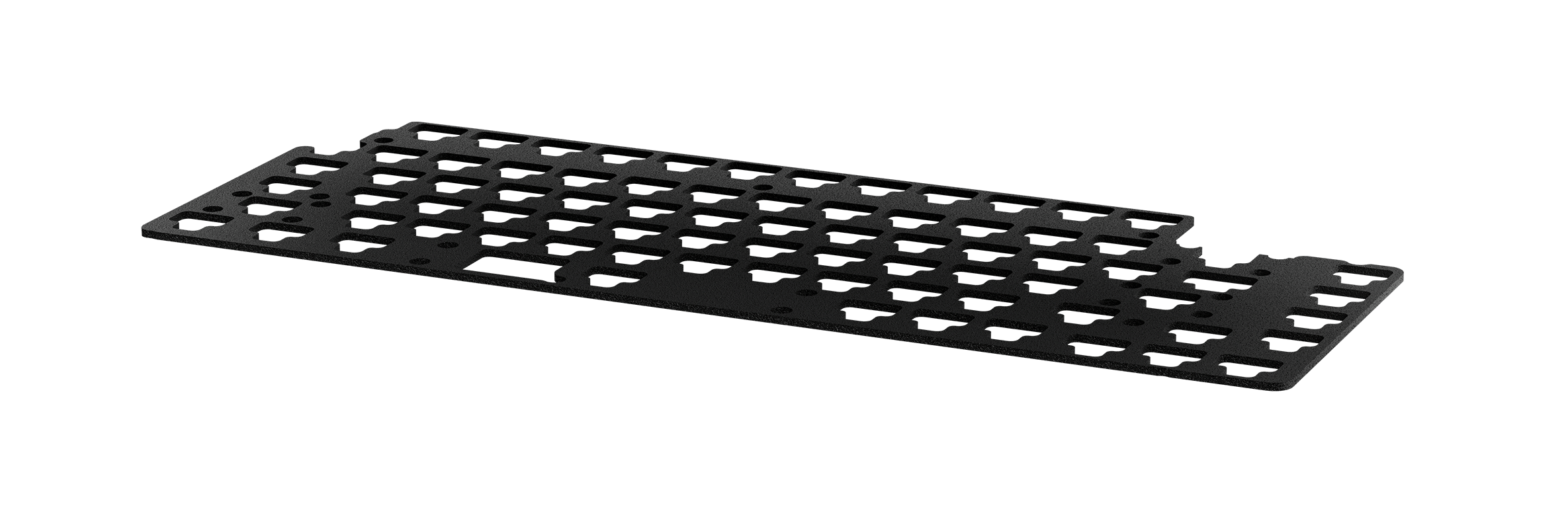

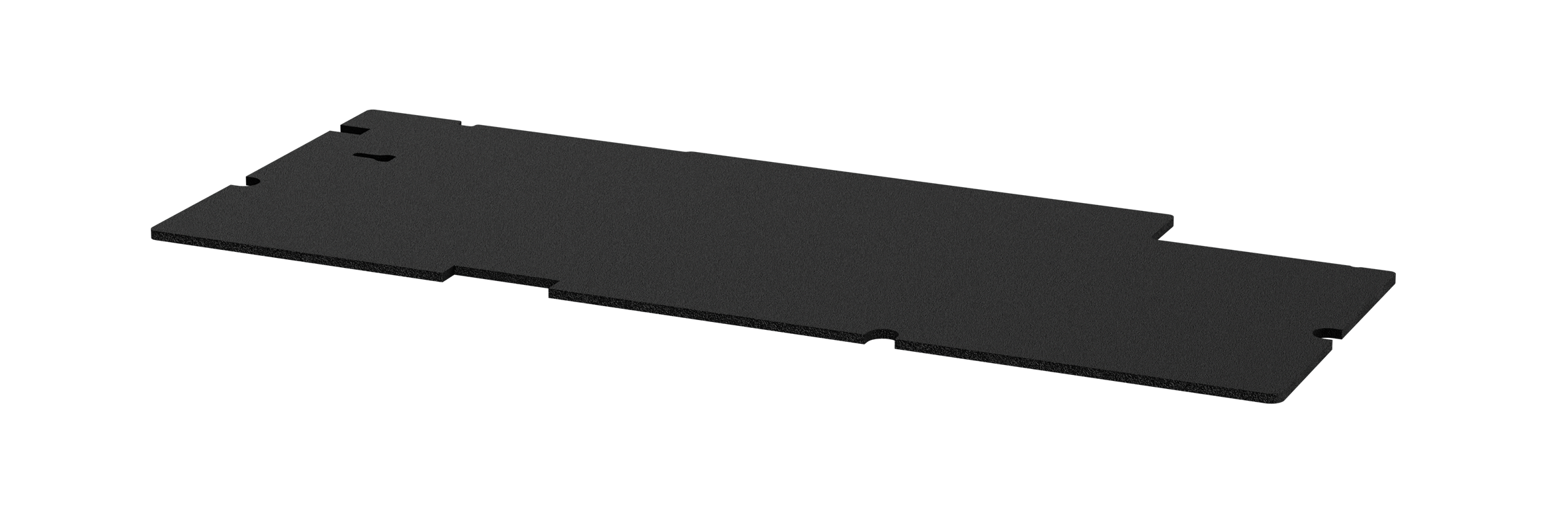

  • Two-Layer PORONDampening Foam

    Absorbs vibration and enhances stability

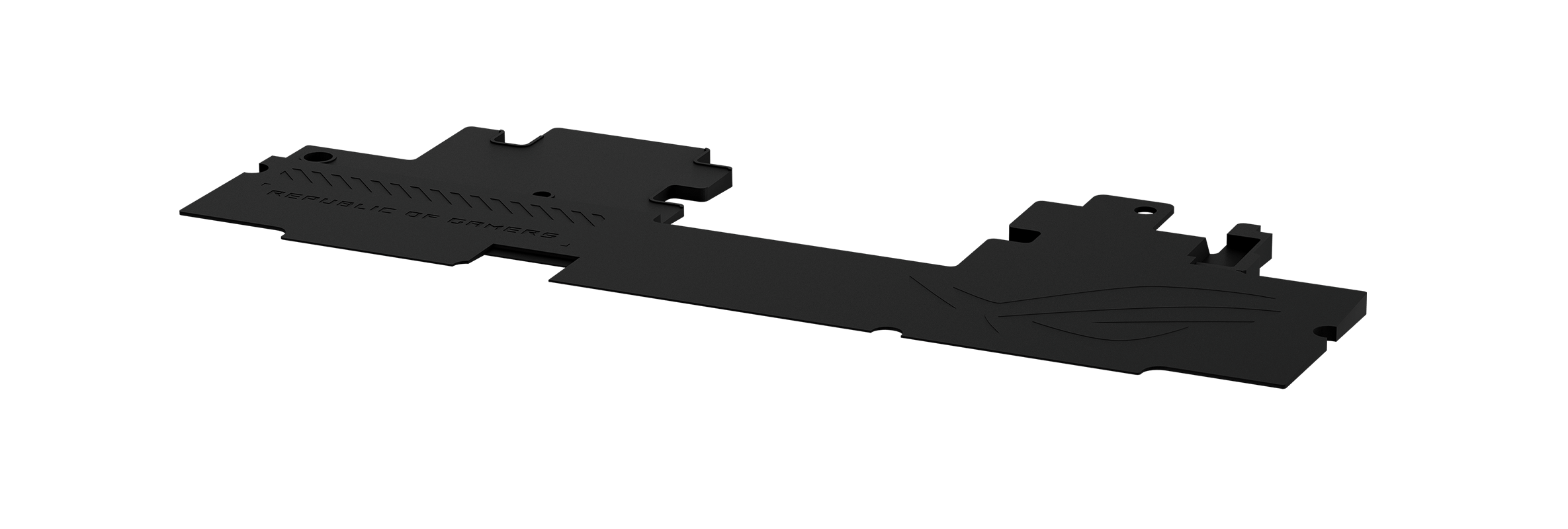

  • Silicone Pad

    Completely eliminates echoes and provides a flat surface for the PORONdampening layer

ROG NX Mechanical Switches V2

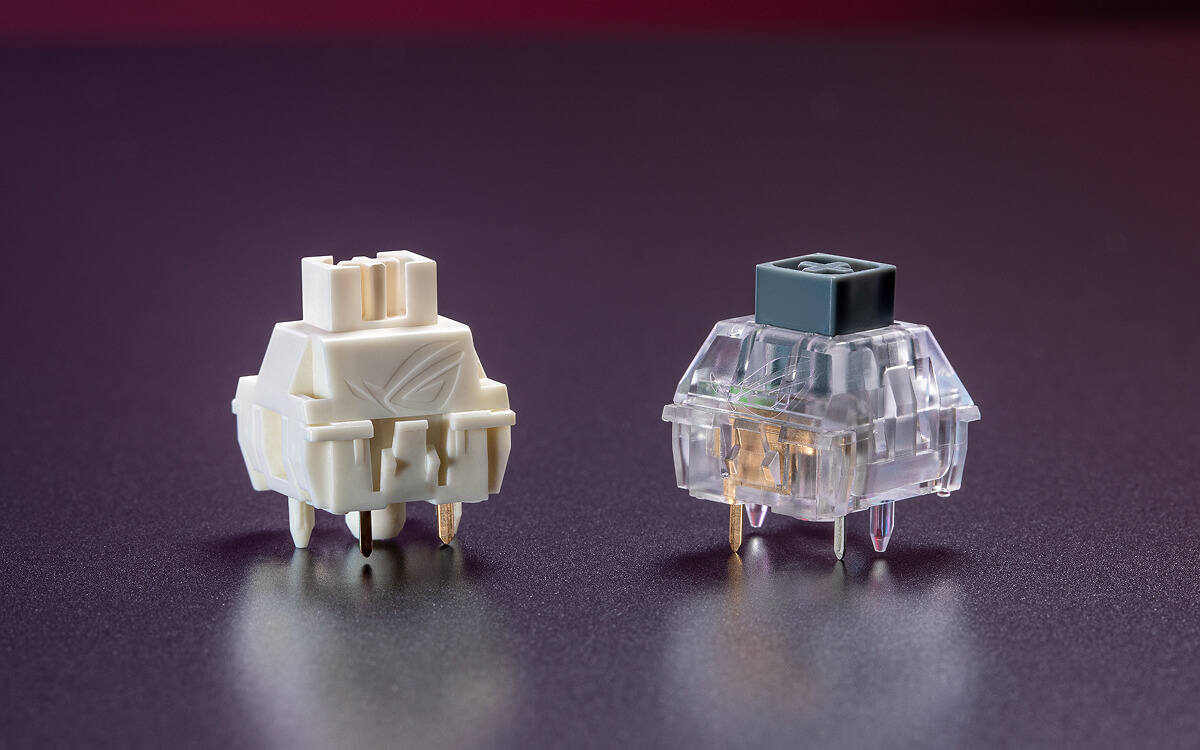

ROG NX Snow and NX Storm Mechanical Switches V2

  • SNOW

  • STORM

Speed Tap Mode

When activated, Speed Tap mode prioritizes the latest input and automatically releases the previous one when two keys are pressed. This means that in FPS games, pressing two opposing directional keys (e.g., A and D) will no longer cause the in-game character to stop moving. Instead, directional changes can now be made immediately without having to release the previous key, eliminating any time gap for counter-strafing and ensuring precise aimevery time.

*Speed Tap feature is turned off by default. Simultaneously press Fn + Caps keys to activate.

Versatile Tri-Mode Connection

ROG SpeedNova wireless technology offers up to 1600+ hours of stable, uninterrupted near-zero-latency gameplay in 2.4 GHz RF mode (RGB and OLED off). Alternatively, you can use Bluetooth mode to connect to up to three devices at the same time, or charge and play simultaneously in wired USB mode.

  • An icon for Bluetooth

    Bluetooth

  • An icon for Wired USB

    Wired USB

  • RF 2.4 GHz

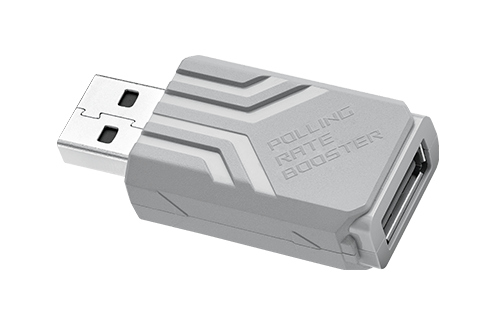

  • The Azoth X also supports ROG Polling Rate Booster an ROG-exclusive accessory that upgrades your keyboard polling rate up to true 8000 Hz in both wired and wireless mode.

    *ROG Polling Rate Booster sold separately.

  • The ROG Omni Receiver allows wireless connection to one compatible keyboard and one compatible mouse at the same time with just one single USB receiver.

Three Tilt Angles

Two pairs of keyboard feet of differing heights give Azoth X three ergonomic tilt angles to suit user preferences.

Wrist Rest

The extended silicone wrist rest is tailored to perfectly complement the ROG Azoth X. Its ergonomic design ensures comfortable typing experiences while providing firm support.

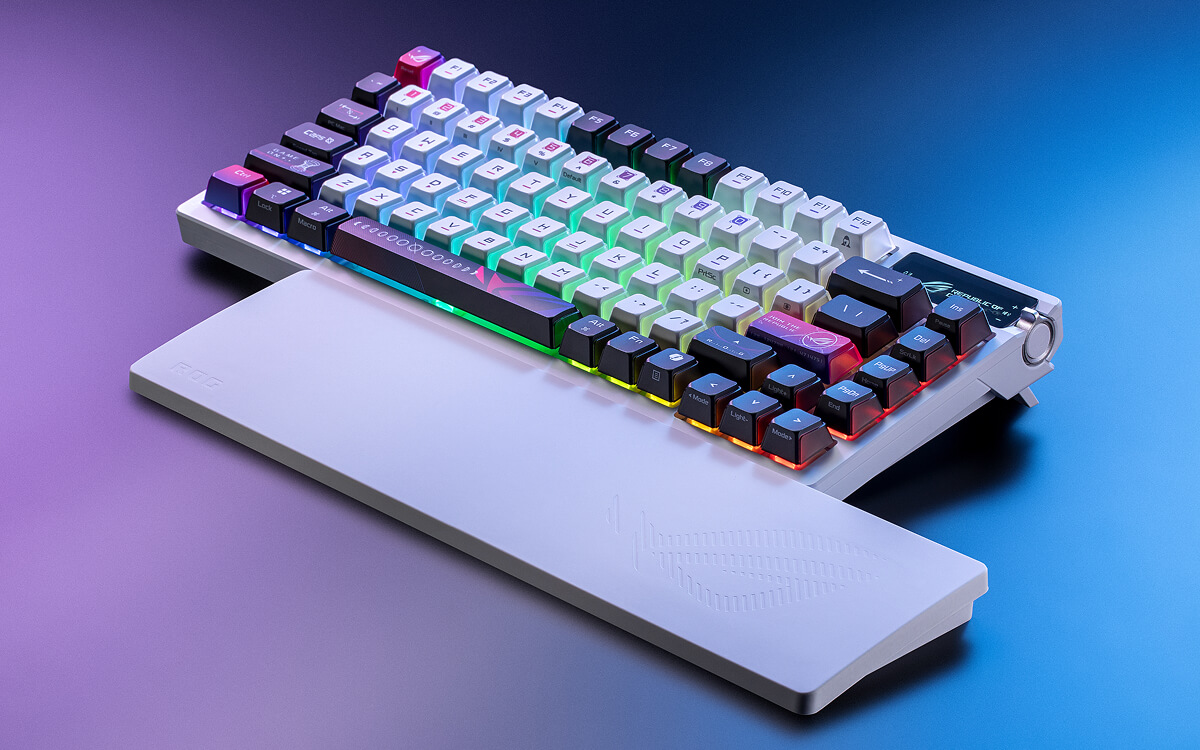

Azoth X with silicone wrist rest

Extra Tuning

The spacebar has extra lubing and modifications for enhanced acoustics and feel. Additionally, five RGB LEDs under the spacebar create stunning lighting effects.

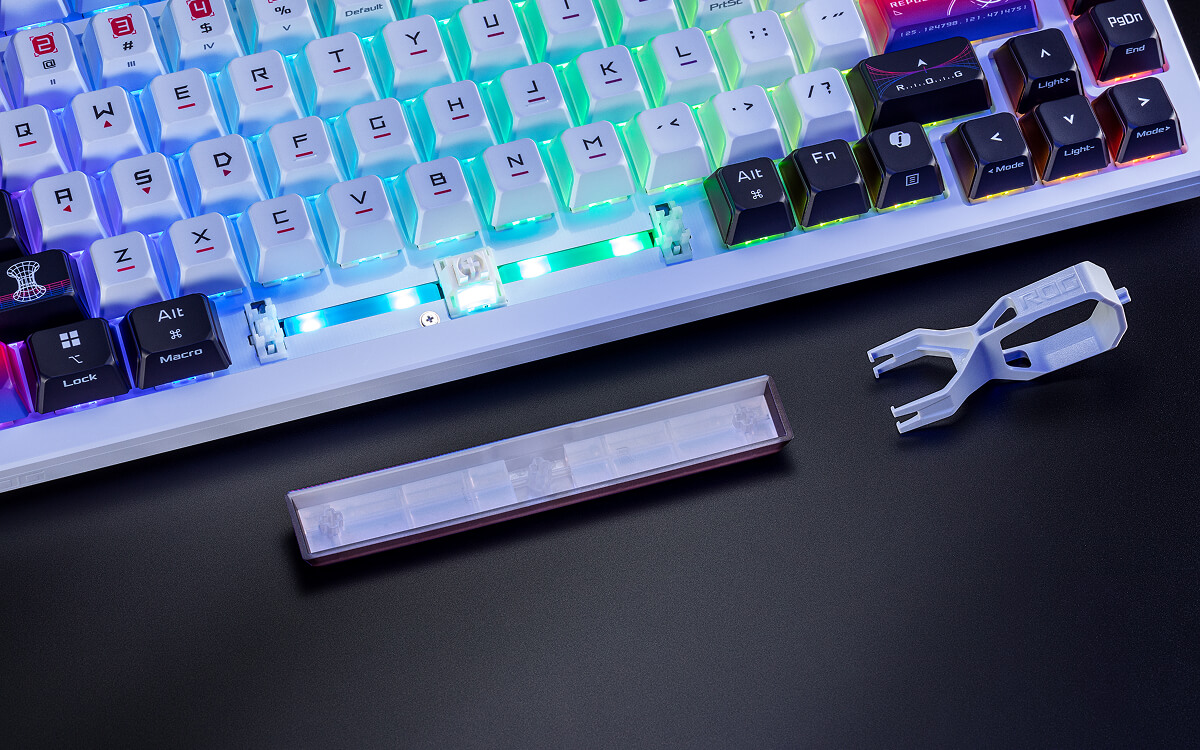

Azoth X with 5 LEDs under the space bar, modded space bar keycaps and keycap puller

Keyboard Stabilizer

The pre-lubed keyboard stabilizer has been specially tuned with gamers in mind: it produces less friction, allowing long keys such as Spacebar, Shift and Enter to deliver keystrokes that stay true to the original switch feel.

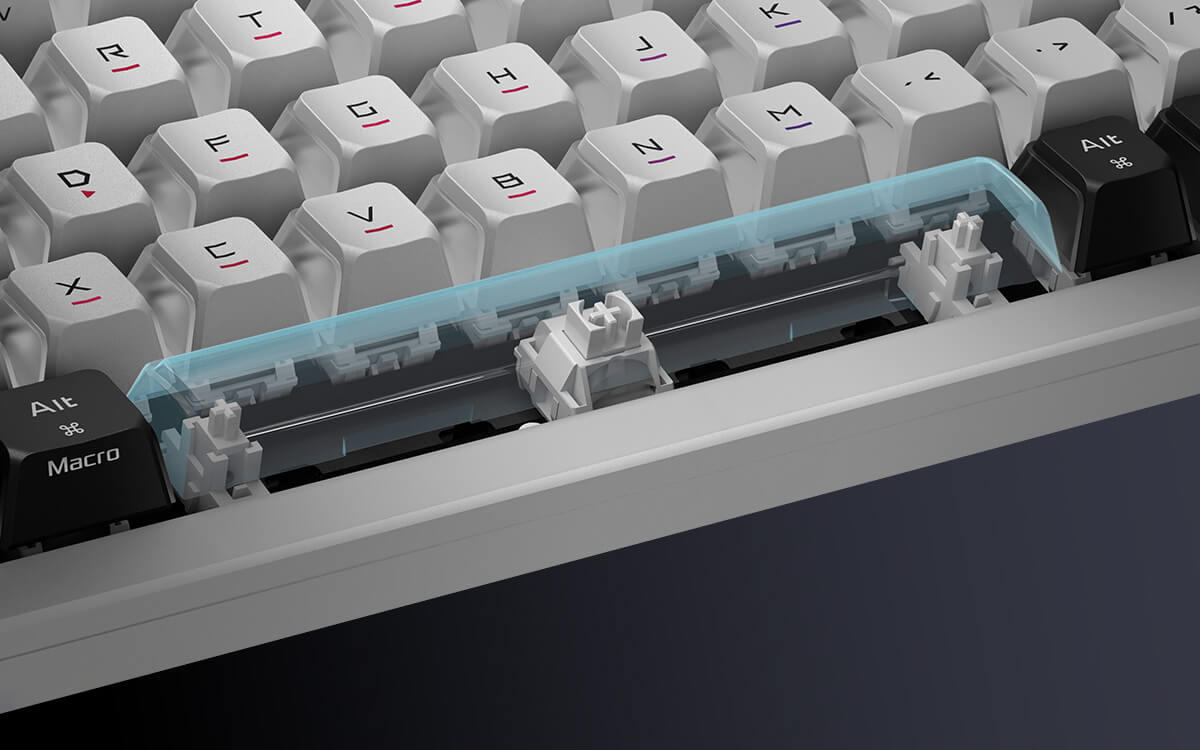

Transparent view of Azoth X stabilizers

Hot-Swappable Switches

Users can swap and install their preferred switch type for a unique, customized feel.

*Even though the switches are hot swappable, it is not recommended to swap out switches when the keyboard is on as it could cause a short circuit.

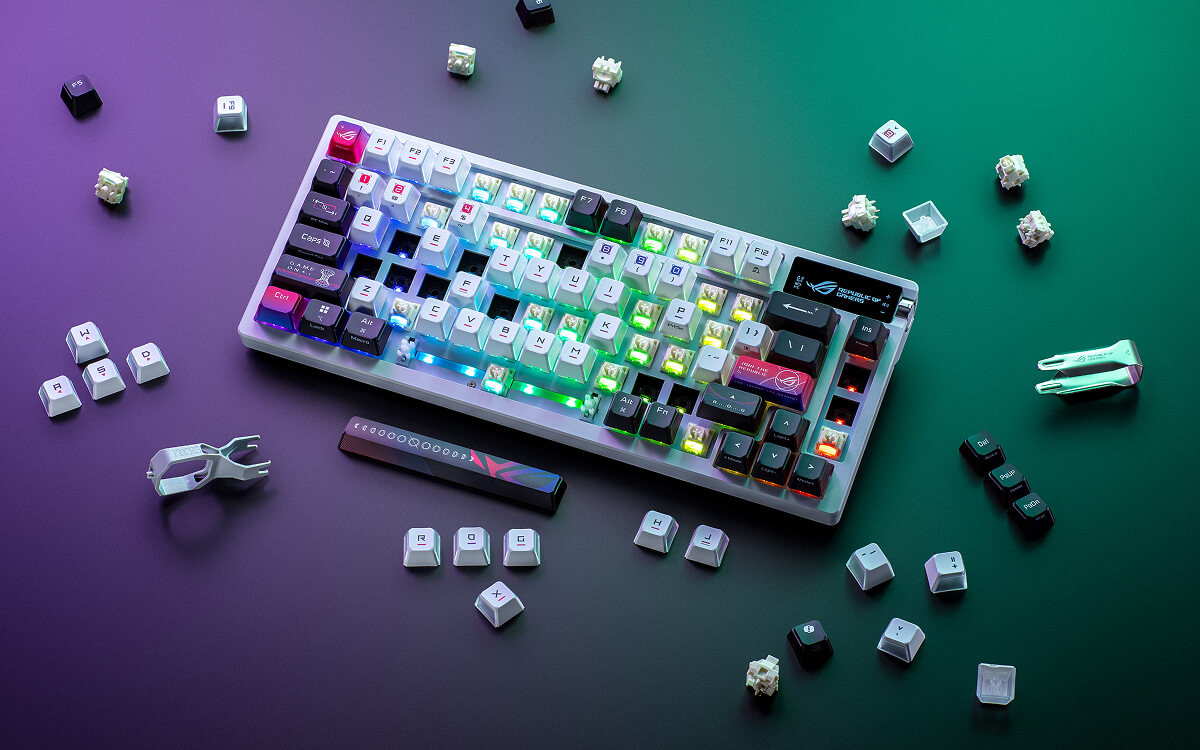

ROG Azoth X with many keycaps and switches removed scattered around the keyboard.

Other Features

  • On-the-fly macro recordings

    Record macros on the fly and map them to fully programmable keys.

  • Onboard memory

    Save up to six profiles, including up to five custom schemes, and use themanytime, anywhere.

  • 100% anti-ghosting &N-key rollover

    Every keystroke is registered accurately, no matter how many keys are pressed.

  • MacOS Support

    Easily toggle MacOS mode to remap the keys for use with MacBooks and Macs.

    *Armoury Crate is currently not compatible with MacOS.

Key Switch

ROG NX Mechanical Switch (Snow V2 / Strom V2)

Connectivity

USB 2.0 (TypeC to TypeA)
Bluetooth 5.1
RF 2.4GHz

Lighting

RGB Per keys

AURA Sync

Yes

Anti-Ghosting

N Key Rollover

Macro Keys

All Keys Programmable

USB Report rate

(USB Report rate)1000 Hz

Cable

2M USB type A to C braided cable

OS

macOS 10.11 or later
Windows 11

Software

Armoury Crate

Dimensions

325.4 x 136.2 x 40 mm

Weight

1600g (with wrist rest)

Color

White

Contents

ROG Azoth X
Wrist rest
ROG keycap puller
ROG switch puller
Ctrl keycap
ROG NX switches * 3
USB dongle
USB extender
USB C to USB A cable (2m)
ROG sticker
Quick start guide
Warranty booklet
ROG thank you card
