Gigabyte AORUS Gen5 14000 SSD 2TB PCIe5x4 NVMe2.0 M.2 3D TLC LPDDR4 4GB 14500/12700MB/s 80×22×3.5mm MTBF1.6M 11.5W 5yr/1400TBW

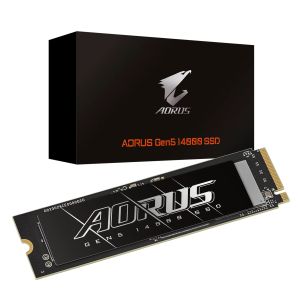

IMG 1 of 4
Our Price:
$580.65
RRP:
$669.00
You Save:
$88.35
or quickly purchase this product
Backorder
Part Number:
559727
(?) Brand:
Gigabyte Web Site
Manuf No:
AG514K2TB
Shipping Weight:
0.08 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
AG514K2TB, SSD AG514K2TB M2 2TB, HBGAG514K2TBM22TB, HBG-AG514K2TBM22TB
Gigabyte AORUS Gen5 14000 SSD 2TB PCIe5x4 NVMe2.0 M.2 3D TLC LPDDR4 4GB 14500/12700MB/s 80223.5mm MTBF1.6M 11.5W 5yr/1400TBW

Interface PCI-Express 5.0x4, NVMe 2.0
Form Factor M.2 2280
Total Capacity 2000GB
NAND 3D TLC NAND Flash
External DDR Cache LPDDR4 4GB
Sequential Read speed Up to 14,500 MB/s
Sequential Write speed Up to 12,700MB/s
Dimension 80 x 22 x 3.5 mm
Mean time between failure (MTBF) 1.6 million hours
Max. Operating Power Read : 11.5W; Write : 11.5W
Power Consumption (Idle, PS3) < 144mW
Power Consumption(PS4, L1.2) < 85mW
Temperature (Operating) 0C to 70C
Temperature (Storage) -40C to 85C

Warranty
1. Limited 5-years or 1400TBW.
2. Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note
Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
Speeds based on internal testing. Actual performance may vary.
1GB = 1 billion bytes. Actual useable capacity may vary.


* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

No additional files, specification sheets, guides or documentation found for product.
