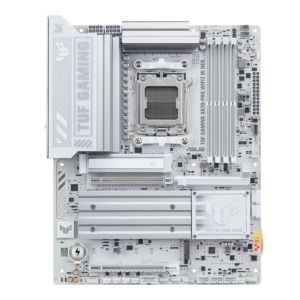

ASUS ASUS AMD TUF GAMING X870-PRO WIFI7 W NEO, AM5,X870,4DDR5 256GB,PCIe5.0,M.2x4,WiFi7,BT5.4,5GbE,USB4x2,HDMI,ATX,3yr wty

IMG 1 of 4
Our Price:
$534.70
or quickly purchase this product
Backorder
Part Number:
561650
(?) Brand:
ASUS Web Site
Manuf No:
TUF GAMING X870-PRO WIFI7 W NEO
TUF GAMING X870PRO WIFI7 W NEO
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
MBAX870PROWF7WNEO, MBA-X870-PRO-WF7-W-NEO, TUF GAMING X870PRO WIFI7 W NEO, TUF GAMING X870-PRO WIFI7 W NEO
Model
TUF GAMING X870-PRO WIFI7 W NEO
CPU
AMD Socket AM5 for AMD Ryzen 9000 &8000 &7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD X870 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to
8600+MT/s(OC)*/8200+MT/s(OC)** with Ryzen 9000 Series Processors,
9600+MT/s(OC)*/9000+MT/s(OC)** with Ryzen 8000 Series Processors,
8000+MT/s(OC)*/8000+MT/s(OC)** with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM***
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
Supports DIMM Fit and DIMM Fit Pro
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)
* Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialised hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.
** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and
can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/.
*** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
*** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Graphics
1 x HDMI port**
2 x USB4 (40Gbps) ports support USB Type-C display outputs***
* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
Expansion Slots
AMD Ryzen 9000 &7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)***
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** PCIEX16(G4) slot shares bandwidth with the The M.2_4 slot. When either the PCIEX16(G4) or M.2_4 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen 9000 &7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*

AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**

AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)***
2 x SATA 6Gb/s ports
* The 2 x USB4 (40Gbps) ports share bandwidth with the M.2_2 slot. The USB4 Controller runs at PCIe 4.0 x2 mode when a device is installed in the M.2_2 slot. The M.2_2 slot runs at PCIe x2 mode by default. You can switch M.2_2 to M.2_2 X4 mode in the BIOS, but this will disable the USB4 (40Gbps) ports.
** Specifications vary by CPU types.
*** The M.2_4 slot shares bandwidth with the PCIEX16(G4) slot. When either the PCIEX16(G4) or M.2_4 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode. You can enter the BIOS to adjust the default settings as required.
RAID Support
AMD RAIDXpert2 Technology
Ryzen 9000 &8000 &7000 Series Processors: RAID 0/1/5/10
Ethernet
1 x Realtek 5Gb Ethernet
TUF LANGuard
Wireless &Bluetooth
Wi-Fi 7 (Realtek RTL8922AE)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth v5.4 (suppport LE Audio)***
* Wi-Fi features may vary depending on the operating system.
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)*
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)

Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge )**
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A.
* The 2 x USB4 (40Gbps) ports share bandwidth with the M.2_2 slot. The USB4 Controller runs at PCIe 4.0 x2 mode when a device is installed in the M.2_2 slot. The M.2_2 slot runs at PCIe x2 mode by default. You can switch M.2_2 to M.2_2 X4 mode in the BIOS, but this will disable the USB4 (40Gbps) ports.
** USB Type-C power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2.0.
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback**

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports
2 x USB4 (40Gbps) ports (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors

Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports

USB
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Special Features
Asynchronous Clock
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- Dual DIMM clips
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2.0A
- Compatible with PD3.0
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- WiFi Q-Antenna
- MLO Wizard
ASUS DriverHub
- ASUS MB Manager
- ASUS AI Advisor
- TUF GAMING CPU-Z
- ASUS GlideX
- USB Wattage Watcher
- TurboV Core
- Norton 360 for Gamers (60 Days Free Trial)
- WinRAR (40 Days Free Trial)
DTS Audio Processing
Adobe Creative Cloud (Free Trial)**
b UEFI BIOS
Integrated WiFi Driver Support
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
BIOS
64MB (512Mb) Flash ROM
UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF Gaming sticker
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Operating System
Windows 11
Form Factor
ATX Form Factor
30.5 cm x 24.4 cm
