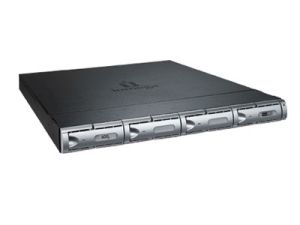

Simple, scalable storage expansion for Iomega StorCenter Pro NAS 400r Series. Add up to 3TB of storage to your highperformance NAS 400r, via a simple SCSI connection. A highly economical solution that allows your RAID arrays to expand as your business grows. Fits seamlessly into Windows Storage Server 2003 environment.

What You Get

  • Discovery and Web Management Utility
  • Iomega StorCenter Pro NAS 400e/1TB
    • Intel Pentium 4 Processor 3.0GHz, 128KB L2 Cache
    • 1GB ECC DDR RAM
    • RAID 0, 1, 5 and JBOD via NAS 400r system
    • 4 x 250 GB Serial ATA150 Hot Swap, Hard Disk Drive, 7200RPM, 8MB Cache
    • Two PCI Ultra 320 SCSI Connectors (One 68Pin VHDCI and one High Density)
  • 1U, 19" Rack Mount with Mounting Bracket
  • Quick Start Guide
  • One Iomega StorCenter Pro NAS Solutions CD
    • StorCenter Pro NAS Discovery Utility
    • Iomega Automatic Backup Software
    • HTML User Manual and Help Files
  • One Power Cord
  • One SCSI Cable
  • One SCSI Terminator
  • Service & Support: One year next business day onsite support, limited three year parts and labor, 24x7 telephone support and email with 4 hour response time. Extended Gold Plus Service available.

What You Need

For Initial Installation:

    PC Users:

    • Microsoft Windows 98SE / Me / 2000 / NT / XP / Windows Storage Server 2003
    • Novell Netware 3.x,4.x, 5.x and greater
    • Network adapter 10/100 on discovery computer
    • Microsoft Internet Explorer 4.01 or higher

    Mac Users:

    • Mac OS 8.x, 9.x and OS X

    To View Users Manual:

    1. Microsoft Internet Explorer 5.0 or higher Netscape Navigator 6.1 or higher

Specifications

    Note: All specifications are subject to change without notice and may change depending upon your computer performance and specifications.

Operating System
  • Microsoft Windows Storage Server 2003

Included Software
  • 400r NAS Update Patch
  • Iomega NAS Discovery Tool



Hardware Specifications:

    Processor
    • Intel Pentium 4 3.0GHz Processor

    CPU and RAM
    • Intel FW80219 400 MHz I/O processor
    • 128MB onboard DDR200 SDRAM with ECC protection

    SCSI Connections/Cables/Terminator
    • One (1) Ultra 160 SCSI LVD (68pin HD Connector)
    • One (1) Ultra 160 SCSI LVD (68pin VHDCI Connector)
    • One (1) SCSI Cable Included (68Pin HD to 68Pin VHDCI)
    • One (1) SCSI Terminator Included (68Pin VHDCI)

    Disk Specifications
    • Four (4) Hot Swap 250 GB SATA Drives (Up to 150 MB/s Mounted on removable trays)
    • 7200 RPM
    • 8MB Cache

    Supported RAID Configurations
    • JBOD (Default Setting)
    • Software RAID 5
    • Software RAID 1

    Additional Interfaces
    Back Panel:

    • One (1) Serial (COM) Port

    Physical Dimensions
    • Width: 17.31 in(43.97 cm)
    • Length: 21.25 in(53.98 cm)
    • Height: 1.63 in(4.13 cm)

    Weight
    • 24.91 lbs (11.3 kg)

    Power Rating
    • One (1) 300W Power Supply

    Agency Certifications
    • UL, CUL, CE, ICES, FCC Class A

Environmental Specifications:

    Operating Environments
    • Ambient Temperature: Operational: 5 C To 40 C (41 F to 104 F) / NonOperational: 10 C to 60 C (14 F to 140 F)
    • Max Temperature Gradient: Operational: 10 C (50 F)/hr / NonOperational: 20 C (68 F)/hr
    • Max Wet Bulb: Operational: 30 C (86 F) / NonOperational: 40 C (104 F)
    • Relative Humidity: Operational: 20 % to 85% / NonOperational: 20% to 90 %
    • Altitude (from mean sea level): Operational: 300m to 3100m (984.24 ft to 10,170.48 ft) / NonOperational: 300m to 12,500m (984.24 ft to 41,010.00 ft)

    Shock and Vibration Performance
    • Operational Vibration: 5200 Hz, 0.21Grms, xyz axis, 15 min
    • Operational Shock: 2G, 2.5 MS, 100 PULSES, 3 SEC SPACING
    • NonOperational Vibration: 101000 Hz, 0.50 Grms, xyz axis, 30 min
    • NonOperational Shock: 95G, 2.5 ms, 6 pulsed, 1 per axis
    • Acoustic (idle): 54 dbA Max at 0.45m / 49 dbA Max at 1.5m
    • Acoustic (operational): 59 dbA Max at 0.45m / 53 dbA Max at 1.5m (72 deg F less than 30% humidity, Junior data xfer)

    Thermal Output
    • Maximum Heat Output: 680 BTU per hour

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (iOmega) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
