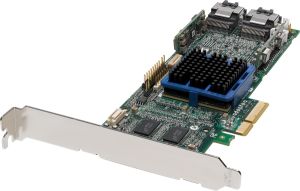

Adaptec RAID 3805 Controller - 8-Port Internal SAS, 128MB, Low Profile - PCI-Ex4, Single OEM (No Cable)
RAID 0,1,1E,5,5EE,6,10,50,60

No Longer Available

Part Number:

73328

(?) Brand:

Adaptec Web Site

Manuf No:

ASAR3805-SGL-128
ASAR3805SGL128

Shipping Weight:

1.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

ASAR3805SGL128, ASAR3805-SGL-128

Most advanced PCIe connectivity and data protection for SATA and SAS disk drives

8-port MD2 low-profile PCI Express (PCIe) Unified Serial controller supporting RAID 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, Copyback Hot Spare, and optional Snapshot Backup for pedestal and high-density rack mount servers

Choose an Adaptec Unified Serial controller to leverage cost-effective, high-capacity Serial ATA (SATA) disk drives or high-performance Serial Attached SCSI (SAS) drives, or both, in a single storage system. With Adaptec Unified Serial controllers, you can scale up to 60TB (using 500GB drives) and increase performance for SATA and SAS storage.

The Adaptec RAID 3805 is an 8-port controller that supports SATA and SAS drives and next-generation PCIe connectivity. It features Adaptec RAID Code (ARC) with RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD, as well as Copyback Hot Spare and optional Snapshot Backup. With an MD2 low-profile form factor, this card will fit into any server, including high-density rack mount and blade servers.

The card has 128MB of DDR2 memory and a battery unit is optional.Adaptec Storage Manager provides one-view, centralized management for all Adaptec RAID controllers.

Highlights

	8 ports support up to 8 SATA and SAS drives
	PCIe host interface
	3 Gb/s per port
	RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD
	Copyback Hot Spare and optional Snapshot Backup
	LED header for drive activity and failure indication
	SES2 and SGPIO enclosure management
	128MB DDR2 fixed data cache
	MD2 low-profile form factor
	RoHS compliant
	Optional battery backup module

Supported Operating Systems
	Microsoft Windows Red Hat Linux SUSE Linux Novell NetWare SCO OpenServer UnixWare Sun Solaris FreeBSD VMware ESX Server

Key Differentiators
	Affordable Unified Serial RAID controllers support both SATA and SAS devices. Ideal for workstations, and entry to mid-range servers.

Customer Needs
	Affordability and performance with an advanced feature set for customers needing storage flexibility and capacity growth.

System Environment
	Intel IA32, EM64T, and AMD64

Form Factor
	MD2 Low-profile

Cache Memory
	128MB of DDR2 memory

RAID Levels
	RAID 0, 1, 1E, 5, 5EE, 6, 10, 50, 60, JBOD

Key RAID Features

Supports up to 128 SAS or SATA devices (depending on server design)
RAID Levels 0, 1, 10, 5, 50, JBOD
Advanced Data Protection Suite
RAID Levels 1E (Striped Mirror), 5EE (Hot Space), 6
and 60 (Dual Drive Failure Protection)
Copyback Hot Spare
Snapshot Backup (optional)
Dynamic caching algorithm
Online Capacity Expansion
RAID Level Migration
Optimized Disk Utilization
Quick Initialization
Native Command Queuing (NCQ)
Hot spares global, dedicated, and pooled
Background initialization
Automatic/manual rebuild of hot spares
SAF-TE enclosure management support
Configurable stripe size
S.M.A.R.T. support
Up to 512TB array sizes
Multiple arrays and types per disk drive
Bad stripe table
Dynamic sector repair
Staggered drive spin-up
Bootable array support
Hot-plug drive support
Redundant path failover

Bus System Interface Type
	4-lane PCIe

Internal Connectors
	2 internal connectors (SFF-8087)

Data Transfer Rate
	3 Gb/s per port

Package Contents
	Adaptec RAID 3805 Controller Additional low-profile bracket Quick Installation Guide (English/French/German/Italian/Spanish) Software and documentation CDs Mini SAS to SATA fanout cable w/ sideband (2)

Warranty
	3years

Management Utilities

Adaptec Storage Manager (ASM)
Java-based GUI Management Utility
Remote configuration, monitoring & notification
ASM OS Support: Windows, Linux, SCO, Solaris, NetWare
Microsoft VDS Support
SNMP, SMTP
Simultaneous remote firmware updates

ARCCONF
Command Line Interface

Adaptec BIOS Configuration Utility (ACU)
BIOS level configuration utility
Flashable BIOS support

Physical Size

2.5" H x 6.6" L (64mm x167 mm)

Operating Temperature (incl. battery)

0C to 45C (without airflow)
0C to 55C (with airflow

Operating Voltage

1 amp @ 3.3V

Regulatory Certification

FCC, C-tick, CE, VCCI

Accessories

Snapshot Backup Key (2228200)
Adaptec Battery Module ABM-800 (2248000-R)
