No Longer Available

Part Number:
73454
Usually Ships:
(?) Brand:
Manuf No:
AAR1220SA-SGL
AAR1220SASGL
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Rating:

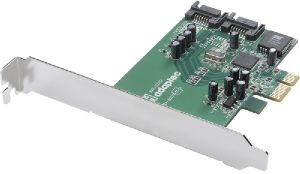

Adaptec 1220SA SATA II RAID Controller - 2 Port, PCI-Ex1, RAID 0,1,JBOD, Low Profile, OEM (No Cable)

PCI Express x1, 2-Port SATA 3Gb/s supporting RAID 0, 1, and JBOD 2 Serial ATA 3Gb/s ports, PCIe x1, low-profile form factor with Native Command Queuing, RAID 0, 1, and JBOD for desktops, workstations and entry-level servers


Serial ATA 3Gb/s, the successor technology to SATA for data storage, is a point-to-point connection that delivers full throughput to each storage device by allowing multiple ports to be managed by a single controller.

The Adaptec RAID 1220SA card is a two-port, PCI Express x1 controller featuring Adaptec HostRAID - an integrated RAID technology that maximizes system performance and uptime. The Adaptec 1220SA supports up to two 3Gb/s Serial ATA drives, Native Command Queuing, and offers RAID levels 0, 1, and JBOD (individual drive). The Adaptec 48-bit logical block addressing (LBA) support enables use of disk drives exceeding 137 GB in capacity. The Adaptec 1220SA supports Windows 2000, Windows Server 2003, Windows XP, RedHat Linux, SuSE Linux, and NetWare.

Highlights
2 Serial ATA 3Gb/s Ports for support of up to 2 SATA disk drives
PCI Express x1 host interface
RAID 0, 1, and JBOD
Native Command Queuing
48-bit LBA support for drives above 137GB
Low-profile form factor
Bootable array support
SATA tape support
RoHS compliant

Supported Operating Systems
  Windows 2000
Windows XP
Windows Server 2003
Novell NetWare 6.5
SUSE Linux
Red HatLinux
Benefits
  Low-cost Serial ATA RAID cardfor data protection and increased performance
Key Differentiators

  • RAID 0, 1, and JBOD
  • Native Command Queuing (NCQ)
  • SATA tape support
  • PCI Express x1
  • Supports bootable arrays
  • 48-bit LBA supports large capacity drives
  • Low-profile form factor
  • RoHS compliant
Customer Needs
  Ideal for desktop and workstations as well as entry-level servers requiring RAID mirroring or striping
System Environment
  Small office and home office as a boot device for print, file, and storage servers. Enhanced performance for video editing, video/audio streaming, and gaming applications.
Number of devices
  Up to2 Serial ATA drives

Bus System Interface Type

  PCI Express x1
Data Transfer Rate
  Up to 3 Gb/s
System Requirements


Intel or AMD architecture with available PCI Express x1 slot

Package Contents

  • Adaptec 1220SA controller with full-size bracket
  • Two 1-meter Serial ATA cables
  • Low-profile replacement bracket
  • Quick Install Guide
  • Bootable Installation CD containing:
    -- Operating system drivers
    -- Complete user documentation (pdf)
  • Adaptec Storage Manager CD containing:
    -- Adaptec Storage Manager GUI software
    -- Complete user documentation (pdf)
Warranty
  3 years


Board Dimensions

2.5 inch H x3.5 inch L
6.4 cm H x 8.5 cm L

Operating Temperature

0 to 55 C

Power consumption

0.9 [email protected] 3.3V

No additional files, specification sheets, guides or documentation found for product.

Warranty: 36

Full manufacturers warranty details are available at the manufacturers (Adaptec) web site.
