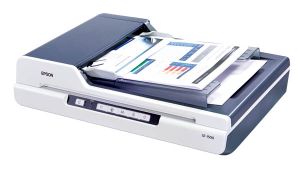

| Epson GT-1500 |
B11B190031 |
| SCANNER TYPE |
Sheetfed & Flatbed A4 colour image scanner |
| OPTICAL RESOLUTION |
Flatbed: 1,200 x 2,400 dpi with Micro Step Drive
ADF: 600 x 600 dpi |
| OUTPUT RESOLUTION |
50 dpi to 4,800 dpi (50 ~ 2400dpi in 1dpi increment, 3200dpi, 3600dpi, 4800dpi) |
| SUB-SCANNING METHOD |
Fixed document and carriage moving |
| MAXIMUM EFFECTIVE SCAN AREA |
| REFLECTIVE |
Flatbed: 216 x 297mm (8.5 x 11.7 inches)
ADF: 216 x 356mm (8.5 x 14.0 inches) |
| PHOTOELECTRIC DEVICE |
3 lines colour CCD |
| PIXEL DEPTH |
In: 16 bit/pixel
Out: 1, 8, 16 bit / pixel |
| GRAYSCALE |
16-bit (65,536 greyscale levels) external
16-bit (65,536 greyscale levels) internal |
| COLOUR |
48-bit (281,474 billion colours) external
48-bit (281,474 billion colours) internal |
| INTERFACE |
USB 2.0++ |
| ++The functionality of the USB port(s) must be ensured by the vendor of the Host. |
| CONFIGURATION |
| LIGHT SOURCE |
White LED |
| SUB-SCANNING METHOD |
Fixed document and moving carriage |
| SCANNING SPEED* |
MONOCHROME
COLOUR |
A4 200dpi (PDF)
A4 200dpi (PDF) |
18ppm
12ppm |
| |
| |
*System Configuration of Scanning Speed
CPU: Pentium 4,3.2GHz
RAM: 1GB
I/F: USB2.0 Hi-Speed
OS: Windows XP Home Edition
Soft: Epson Scan Office Mode Standalone
|
| Scanning speed test results vary according to system configuration, dpi setting, and scan mode setting. |
| ADF |
| TYPE |
Sheet through, Simplex scanning |
| PAPER SUPPLY |
Paper Supply: Face up load
Paper Out: Face down eject |
| DOCUMENT SIZE |
A4, Letter, Legal, B5, A5, A6
Max. size: 216 x 356 mm
Min. size: 105 x 148.5 mm
|
| PAPER SETTING CAPACITY |
40 pages (75g/m2) |
| PAPER WEIGHT |
50-120g/m2 |
| FUNCTIONS |
| EASY DOCUMENT SCANNING |
4 Customisable push buttons
10 customisable job
Double sided scanning of PDF
Searchable PDF (Windows only)
Scan to Mutli PDF
Encrypted pdf
Compression pdf
Stand-Alone Application and Scan to File Feature
Multi Purpose User Interface
Auto Skew Correction
Multi Marquee
|
| DOCUMENT IMAGE ADJUSTMENT |
Text enhancement
Colour enhancement
Dropout colour
Unsharp Mask
De-Screening with Document Type Optimiser
Tone Curve Adjustment with Histogram
|
| SUPPORTED PLATFORMS |
USB1.1
|
USB2.0 High-Speed
*Microsoft Windows 2000 Professional / XP (Home Edition / Professional / Professional X64) / Windows Vista (Home Basic, Home Premium, Business, Enterprise, Ultimate)
Mac OS X v10.2.8 or later
*USB2.0 Host Driver by Microsoft is required |
| ENVIRONMENTAL CONDITIONS |
| TEMPERATURE |
10C to 35C (Operating)
-25C to 60C (Storage) |
| HUMIDITY |
10% to 80% without condensation (Operating)
10% to 85% without condensation (Storage) |
| ELECTRICAL SPECIFICATIONS |
| RATED VOLTAGE |
(AC100V model) AC100-120V 50-60Hz
(AC200V model) AC220-240V 50-60Hz |
| POWER CONSUMPTION |
Approx. 12.5W (Operating)
Approx. 2.4W (Sleep Mode)
Approx. 5.5W (Ready Mode)
Approx. 0.6W (Power Off)
|
| DIMENSIONS |
WIDTH
DEPTH
HEIGHT
WEIGHT |
470mm
318mm
121mm
Approx. 3.9kg |
