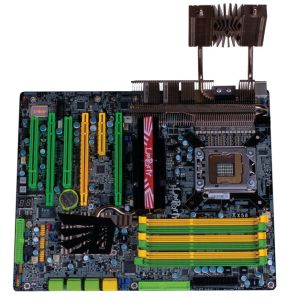

DFI LanParty UT X58-T3eH8 Motherboard
  • LGA1366, X58, ICH10R, QPI 6.4GT/s, 6x DDR3-1333MHz, 3x PCI-Ex16 v2.0, 8x SATA-II, RAID, GigLAN, 8Chl, Firewire - ATX

IMG 1 of 1
No Longer Available
Part Number:
100899
(?) Brand:
DFI Web Site
Manuf No:
LANPARTY LP UT X58-T3eH8
LANPARTY LP UT X58T3eH8
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
LANPARTYLPUTX58T3eH8, LANPARTY LP UT X58-T3eH8, UTX58T3EH8, UT-X58-T3EH8
LANPARTY UT X58-T3eH8

  • DFI new technology ABS provides you a convenient way to optimize your own system.
  • ABS Utility provides backup / load function, let customers are able to do; Backup OC profile / Load OC profile / Exchange OC Profile.
  • Auto Boost System AP file
  • User manual of Auto Boost System
  • Microsoft .Net Framework 2.0 32Bits ; Microsoft .Net Framework 2.0 64Bits

  • Overview:
  • The first CPU with a built-in memory controller of Intel, Core i7, running with X58 chipset of completely new configuration, will further improve performance of personal computers. X58 motherboard unveiled by LANParty this time also embodies the design philosophy of "performance first" and will bring supreme efficacy to players with top specification and material. It has 6 memory DIMMs, which support unprecedented 3-channel memory and can significantly expand the memory bandwidth; and also three PCI Express 2.0 slots, which, for the first time, simultaneously support Nvidia 3-Way SLI and ATI CrossFireX and can considerably improve the 3D processing capability of the system.
    •

  • Intel X58 with ICH10R
    Supports Intel Core i7 processors (LGA 1366, QPI 6.4GT/s)
    Supports 3-Way SLI & CrossFire X
    LANParty UT X58-T3eH8 brings the best gaming experience to you! It supports both Nvidia 3-Way SLI and ATI CrossFire X multi-rendering technology with 3 x16 PCI Express slots on board.

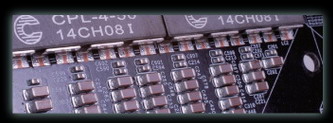

    8-Phase Volterra Full Digital PWM

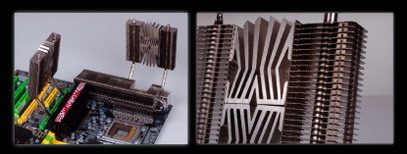

    Flame Freezer
    The cooling system of UT series is optimum for over-clocking! By nickel-plating sintered heat-pipe that solid soldered with aluminum fin, the redundant heat can be emitted efficiently. The "Flame Freezer" is an extended thermal module LANParty UT series. The base of Flame Freezer is connected with original cooling system when the top is outside of PC case.

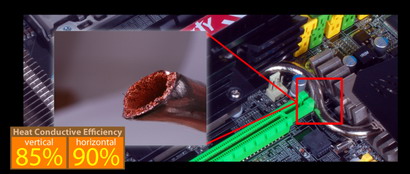

    Sintering Heat-pipe
    Great thermal conductivity & No directionality issue

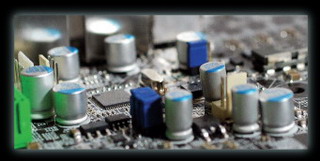

    		LANParty adopts solid capacitors & MLCC for the best stability.
    EZ Clear
    When you have to clear CMOS setting into default, you don't need to open the case anymore! There is a unique circuit in LANParty UT series, just press "Power" & "Reset" buttons in the motherboard or PC case at the same time, the CMOS will be set into default.
    		Realtek ALC885 for 8CH HD Audio in Bernstein card
    Debug LED
    How to know system status when crash or unstable? With LANParty digit diagnosis LED, user can get system status information immediately.

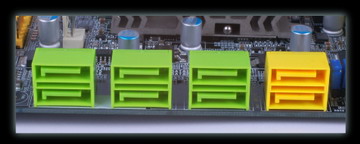

    8 SATAII Ports with RAID Function
    Supports Intel SATAII with RAID 0/1/0+1/5 and JMB363 controller supports additional 2 SATAII ports and 1 IDE port with RAID 0/1, which intends to provide multiple H.D.D RAID function for enthusiastic users.
    Dual Gbe LAN with Teaming by Marvell 88E8052+8053

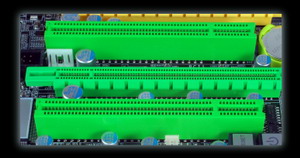

    Fluorescent Slot & Connectors
    We adopt fluorescent slots and connectors in all LANParty series. With installing UV light into PC case, LANParty motherboards become more stylish.
    Auto Boost System
    ABS is "two-step" over-clocking software. Simply install the software, reboot the computer, press to improve FSB frequency, and your CPU will be upgraded automatically! With ABS, you can enjoy the performance of the high-end CPU at the entry-level cost.
    Genie BIOS
    Genie BIOS is the best BIOS in the world. There are hundreds of setting of CPU, memory, FSB, multiple, and great voltage setting with the most intervals.
    CMOS Reloaded
    "CMOS Reloaded" helps you to backup or reload BIOS setting as text file under operation system. Wanna manage your OC records? Just try "CMOS Reloaded"
    1 PCIe x4, 2 PCI, 1 IDE
    2 IEEE1394 Ports & 12 USB 2.0 Ports
    LANPARTY UT X58-T3eH8
    CPU
  • LGA 1366 socket for Intel Core i7 processors
  • Intel QuickPath Interconnect (QPI) technology - point-to-point interface that connects to X58; providing a dynamically scalable interconnect for increased bandwidth, lower latency and stability
  • Integrated Memory Controller (IMC) supports 3 channels of DDR3
  • Intel Hyper-Threading Technology delivers 8-threaded performance
  • 8-phase digital PWM provides stable voltage to the CPU
    • Chipset
  • Intel chipset
    - Northbridge: Intel X58 Express chipset
    - Southbridge: Intel ICH10R
    • QPI
  • System bus - 4.8GT/s to 6.4GT/s
    • System Memory
  • Six 240-pin DDR3 DIMM sockets
  • DDR3 800/1066/1333/1600(O.C.) MHz DIMMs
  • Triple-channel memory architecture
  • Supports up to 24GB system memory
  • Delivers up to 43.2GB/s bandwidth
  • Unbuffered x8/x16, non-ECC and ECC, up to 4Gb DDR3 devices
    Windows 32-bit operating system is unable to accurately detect more than 4GB system memory. Therefore, if you are using this operating system, we strongly recommend that you install a less than 3GB system memory.
    • Expansion Slots
  • 3 PCI Express (Gen 2) x16 slots
    a. 2-way CrossFire at x16/x16 transfer rate lanes; or
    b. 3-way SLI at x16/x8/x8 transfer rate lanes
  • 1 PCI Express x4 slot
  • 2 PCI slots
    • BIOS
  • Award BIOS
  • 8Mbit SPI flash memory
  • CMOS Reloaded
    • Graphics
  • Multiple GPUs (Graphics Processing Unit)
    - 3 graphics cards in 3-way SLI or Quad CrossFireX configuration
    • Audio
  • Bernstein audio module
    - Realtek ALC889 8-channel High Definition Audio CODEC
    - Center/subwoofer, rear R/L and side R/L jacks
    - Line-in, line-out (front R/L) and mic-in jacks
    - 2 coaxial RCA S/PDIF-in/out jacks
    - 1 optical S/PDIF connector
    - 1 CD-in connector
    - 1 front audio connector
  • 108dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality
    • LAN
  • Marvell 88E8052 and Marvell 88E8053 PCIE Gigabit LAN controllers with Teaming technology
  • Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards
    • Storage
  • Intel ICH10R chip
    - Intel Matrix Storage technology
    - Supports up to 6 SATA devices
    - SATA speed up to 3Gb/s
    - RAID 0, RAID 1, RAID 0+1 and RAID 5
  • JMicron JMB363 PCI Express to SATA and PATA host controller
    - Supports up to 2 UltraDMA 100Mbps IDE devices
    - Supports 2 SATA devices
    - SATA speed up to 3Gb/s
    - RAID 0 and RAID 1
    • IEEE 1394
  • VIA VT6308P
  • Supports two 100/200/400 Mb/sec IEEE 1394a ports
    • Rear Panel I/O
  • 1 Mini-DIN-6 PS/2 mouse port
  • 1 Mini-DIN-6 PS/2 keyboard port
  • 1 IEEE 1394 port
  • 6 USB 2.0 ports
  • 2 RJ45 LAN ports
    • Internal I/O
  • 3 connectors for 6 additional external USB 2.0 ports
  • 1 connector for an external COM port
  • 1 connector for an IEEE 1394 port
  • 1 connector for the Bernstein audio module
  • 1 IrDA connector and 1 CIR connector
  • 8 Serial ATA connectors
  • 1 40-pin IDE connector and 1 floppy connector
  • 1 24-pin ATX power connector
  • 1 8-pin 12V power connector
  • 2 4-pin 5V/12V power connectors (FDD type)
  • 1 front panel connector
  • 8 fan connectors
  • 1 diagnostic LED
  • EZ touch switches (power switch and reset switch)
    • Power Management
  • ACPI and OS Directed Power Management
  • ACPI STR (Suspend to RAM) function
  • Wake-On-PS/2 / Wake-On-USB Keyboard/Mouse
  • Wake-On-LAN and Wake-On-Ring
  • RTC timer to power-on the system
  • AC power failure recovery
    • Hardware Monitor
  • Monitors CPU/system/Northbridge temperature and overheat alarm
  • Monitors Vcore/Vdimm/Vnb/VCC5/12V/V5sb/Vbat voltages
  • Monitors the speed of the cooling fans
  • CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat
    • PCB
  • 6 layers, ATX form factor;
  • 24.5cm (9.64") x 30.5cm (12")
    • All specifications above are subject to change without prior notice.
    CPU Support Description PCB Revision Bios Date Code
    Socket 1366
    Intel Core i7 920 BCLK : 133 MHz , Ratio : 20, 45nm , 8MB Cache , Quad Core,8 Threads,DDR3 Speed:800/1066MHz, 2.66GHz All The latest BIOS
    Intel Core i7 940 BCLK : 133 MHz , Ratio : 22, 45nm , 8MB Cache , Quad Core,8 Threads,DDR3 Speed:800/1066MHz, 2.93GHz All The latest BIOS
    Intel Core i7 965 Extreme BCLK : 133 MHz , Ratio : 24, 45nm , 8MB Cache , Quad Core,8 Threads,DDR3 Speed:1333MHz,3.20GHz All The latest BIOS
    Memory Chip Support Size Component Side
    Corsair
    DDR III 1333
    DDR III 1333 Corsair 2048 Corsair CM3X2048-1333C9DHX Double 2048 CM3X2048-1333C9DHX Double
    DDR III 1333 Corsair 1024 Corsair CM3X1024-1333C9 Single 1024 CM3X1024-1333C9 Single
    DDR III 1600
    DDR III 1600 Corsair 2048 Corsair CM3X2048-1600C9DHX Double 2048 CM3X2048-1600C9DHX Double
    DDR III 1600 Corsair 2048 Corsair CM3X2048-1600C7DHX Double 2048 CM3X2048-1600C7DHX Double
    DDR III 1600 Corsair 2048 Corsair XM3X2048-1600C7DHXIN Double 2048 XM3X2048-1600C7DHXIN Double
    DDR III 1800
    DDR III 1800 Corsair 1024 Corsair CM3X1024-1800C7D Single 1024 CM3X1024-1800C7D Single
    G.SKILL
    DDR III 1066
    DDR III 1066 G.SKILL 1024 G.SKILL F3-8500CL6D-2GBHK Single 1024 F3-8500CL6D-2GBHK Single
    DDR III 1066 G.SKILL 1024 G.SKILL F3-8500CL7D-2GBNQ Single 1024 F3-8500CL7D-2GBNQ Single
    DDR III 1333
    DDR III 1333 G.SKILL 1024 G.SKILL F3-10600CL9D-2GBNQ Single 1024 F3-10600CL9D-2GBNQ Single
    DDR III 1333 G.SKILL 2048 G.SKILL F3-10600CL8D-4GBHK Double 2048 F3-10600CL8D-4GBHK Double
    DDR III 1333 G.SKILL 1024 G.SKILL F3-10600CL9D-2GBPK Single 1024 F3-10600CL9D-2GBPK Single
    DDR III 1333 G.SKILL 2048 G.SKILL F3-10600CL9D-4GBPK Double 2048 F3-10600CL9D-4GBPK Double
    DDR III 1333 G.SKILL 1024 G.SKILL F3-1066CL8D-2GBHK Single 1024 F3-1066CL8D-2GBHK Single
    DDR III 1333 G.SKILL 2048 G.SKILL F3-10600CL9D-4GBNQ Double 2048 F3-10600CL9D-4GBNQ Double
    DDR III 1333 G.SKILL 1024 G.SKILL F3-10600CL7D-2GBPI Single 1024 F3-10600CL7D-2GBPI Single
    DDR III 1600
    DDR III 1600 G.SKILL 1024 G.SKILL F3-12800CL9D-2GBNQ Single 1024 F3-12800CL9D-2GBNQ Single
    Kingston Hyper
    DDR III 1625
    DDR III 1625 Kingston Hyper 1024 Kingston KHX13000D3LL/1G Single 1024 KHX13000D3LL/1G Single
    DDR III 1625 Kingston Hyper 1024 Kingston KHX130003LLK2/2GX Single 1024 KHX130003LLK2/2GX Single
    DDR III 1800
    DDR III 1800 Kingston Hyper 1024 Kingston KHX14400D3K2/2G Single 1024 KHX14400D3K2/2G Single
    OCZ
    DDR III 1600
    DDR III 1600 OCZ 1024 OCZ OCZ3FXT20002GK Single 1024 OCZ3FXT20002GK Single
    DDR III 1600 OCZ 2048 OCZ OCZ3P20004GK Double 2048 OCZ3P20004GK Double
    DDR III 1600 OCZ 1024 OCZ OCZ3P16002GK Single 1024 OCZ3P16002GK Single
    PATRIOT
    DDR III 1333
    DDR III 1333 PATRIOT 1024 PATRIOT PVS32G1333LLK Single 1024 PVS32G1333LLK Single
    DDR III 1333 PATRIOT 2048 PATRIOT PVS34G1333LLK Double 2048 PVS34G1333LLK Double
    DDR III 1600
    DDR III 1600 PATRIOT 2048 PATRIOT PVS34G1600LLK Double 2048 PVS34G1600LLK Double
    DDR III 1600 PATRIOT 1024 PATRIOT PVS32G1600LLK Single 1024 PVS32G1600LLK Single
    DDR III 1800
    DDR III 1800 PATRIOT 1024 PATRIOT PVS32G1800LLK Single 1024 PVS32G1800LLK Single
    PQI
    DDR III 1600
    DDR III 1600 PQI 2048 PQI PQI312800-4096DB Double 2048 PQI312800-4096DB Double
