HOME / Back -> Monitors -> 22" LCD -> LG

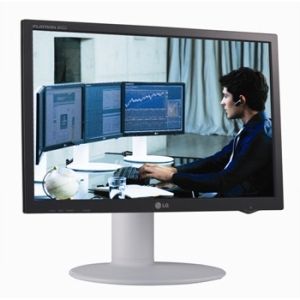

LG L226WU-PF LCD Monitor - Black
  • 22", Widescreen, 2ms, 1680x1050, 5000;1, 300cd/m2, VGA+DVI

IMG 1 of 1
No Longer Available
Part Number:
101435
(?) Brand:
LG Web Site
Manuf No:
L226WUPFAAU
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
L226WUPFAAU

Multi Screen, Multi Task! Easy to Connect, Easy to Use!



USB Input Interface for Multi Screen to Provide Easy User Experience



L226WU
Ergonomic Comfort

Height Adjustment
  • It includes a sliding stand control system and the latest picture enhancement technology.

Pivot 90
  • You can simply rotate the monitor from landscape to portrait and vice versa without using Pivot S/W through GUI (Graphic User Interface).

Easy USB Connection


  • You can make the multi screen environment with up to 8 monitors (USB Cables up to 6 / D-sub 1 / Laptop computer 1) by simply connecting USB cable into the USB port on the back of FLATRON L206WU without any graphic card installed.

USB Minimum Requirements

System Requirements
  • The software requires a USB 2.0 capable PC with a 1.2 GHz or higher processor clock speed and with at least 512 MB of memory.

O/S
  • Windows 2000 (Service Pack 4) or Windows XP (Service Pack 2). It does not support Windows 98, ME, NT, Macintosh, or Linux.

Software Installation Manual


  • - The 'LG USB Easy Connection' driver is automatically installed.

  • - If the 'LG USB Easy Connection' program is not automatically installed, install it manually as follows:

  • - If the system requirements are not met, press 'Confirm' to install the 'LG USB Easy Connection' program.

  • - Install the 'LG Easy Connection' program and disconnect the USB cable before rebooting the computer. If the computer is not rebooted, the "LG Easy Connection" program may not run properly.

  • - Once the USB cable is connected and the "LG USB Easy Connection" driver is installed, 'LG USB Easy Connection' is automatically executed from next time on.

Panel TN
Size 22W
Resolution 1680 x 1050
Pixel Pitch 0.282 x 0.282
Brightness 300 cd/㎡
Contrast Ratio DFC 5000:1
Viewing Angle H : 176˚ /V : 170˚(CR≥5)
Response Time 2ms (GTG)
Display Colors 16.7 M Colors
Sync Range
Horizontal Frequency 30~83Khz
Vertical Frequency 56~75Hz
Connectors
PC 15Pin D-Sub, DVI-D, USB
Plug & Play
DDC DDC CI
USB 1Up 2Down
Power Consumption
On 45W
Stand-by / Suspend 2W
DPM Off 2W
Mechanical
Dimension(W x H x D) 502 x 271 x 430
Weight 6.3Kg
Stand Pivot (90º), Height Adjustment, Tilt, Swivel
Regulations
EMC UL (cUL),TUV-GS,SEMKO
Low radiation FCC-B, CE
SPECIAL FEATURES FLATRON f Engine, HDCP, 4:3 in Wide, MultiLink Technology (Up to 6)

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (LG) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Please note: Most LCD monitors are covered by a 'dead pixel' policy that is manufacturer and model dependent, please contact the manufacturer for exact policy specifications.
