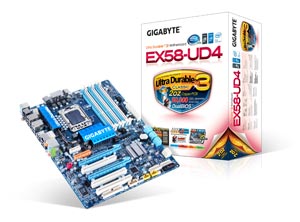

Gigabyte GA-EX58-UD4 Motherboard
LGA1366, X58, ICH10R, QPI 6.4GT/s, 6x DDR3-2000, 2x PCI-Ex16 v2.0, 6x SATA-II, RAID, GigLAN, 8Chl, FireWire, ATX


Product May Vary From Image
[Large image available]

Our Price:Discontinued

Techbuy Part No:102306
Usually Ships: No Longer Available Details
Brand:Gigabyte Web Site
Manuf No:GA-EX58-UD4
 GAEX58UD4
Shipping Weight:2 KG How Much?
Date Added:18/2/2009
Rating: Not Rated
Currency:AUD Convert

Product Description

GA-EX58-UD4 (rev. 1.0)
X58 + ICH10R Chipset
  1. 2 oz PCB design with copper cooled quality for lower working temperature
  2. Supports the newest Intel  Core i7 processors in socket LGA1366 with QPI 6.4 GT/s
  3. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 4-Gear switching
  4. Supports 3 channel DDR3 2000+ memory by 6 DIMMs
  5. 2 PCI-E 2.0 x16 graphics interface plus PCI-E x4 with ATI CrossFireX support for ultimate graphics performance
  6. Unique hardware control IC to provide more precision voltage control
  7. 100% 50,000 hour lifespan Japanese solid capacitors design
  8. Patented DualBIOS with dual hardware BIOS protection
  9. Features high speed Gigabit Ethernet connection
  10. Home theater quality 8-channel High Definition Audio
Overview

Introduction


The EX58-UD4 is the latest high performance X58 Series motherboards of GIGABYTE, designed from the ground up to unleash the awesome power of Intels new Core i7 processors. Equipped with a host of new features including the new QPI interface, 3 channel DDR3 support, CrossFireX support, Ultra Durable 3 (Classic) technology and the industrys most extensive range of overclocking features, the EX58-UD4 is bringing excitement back into the high performance motherboard industry.
    Intel  Core i7 Processor and X58 Chipset support


The EX58-UD4 was designed specifically to take advantage of the raw power of the next generation Intel  Core i7 processors and the Intel  X58 Express chipset, whose new evolution in computing architecture is able to deliver an amazing performance break through from past processor generations. Replacing the Front Side Bus is the new Quick Path Interconnect, or QPI, whose 25.6 GB/sec transfer rate (double the bandwidth of the 1600MHz FSB) eliminates the communication bottleneck between the processor and chipset.
The Intel  Core i7 processors also feature an integrated memory controller inside the processor die and support 192bit 3-channel DDR3 memory that delivers a 50% memory bandwidth enhancement and lower memory latency for incredibly fast memory access. Additionally, The EX58-UD4 features Intel  Turbo Boost Technology, which is able to power down idle processor cores and dynamically reroute the power to the active cores for significant performance boosts, and at the same time, maintain greater energy efficiency.
  Integrated Memory Controller
Intel  Core i7 Processors feature triple channel DDR3 support Intel Core i7 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance. Core i7 processors also provide additional memory support including.
  QPI , QuickPath Interconnect
Replacing the role of FSB
Intel uses the QPI to connect internal components of Core i7 processors , and to connect the CPU itself to the Northbridge and banks of memory.

QPI delivers:
Up to 25.6GB/sec of bandwidth between Core i7 processors and the rest of the system,providing exactly double the bandwidth of 1600 Hz FSB
  Intel Turbo Boost Technology
Dynamically reroutes power to improve performance For situations when all cores are not needed for a particular workload, Intel Turbo Boost Technology powers down the idle cores and dynamically reroutes the power to the active cores, boosting their performance without wasting power. This allows the active cores to achieve significant overclocks.
  ATI CrossFireX
With support for ATI CrossFireX, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded by power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI Express connectivity, the GA-EX58-UD4 allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible with a dual graphics card solution.

Attention: When attempting to enable ATI CrossfireX Technology on this board. In case of unable to get Crossfire Technology working normally, please make sure to use ATI graphic cards that have hardware Crossfire bridge. Please refer to ATI official website for more Crossfire Technology supporting details:
http://game.amd.com/us-en/content/images/crossfirex/CF_combo_chart_July08.jpg
Ultra Durable 3 Classic


GIGABYTE Ultra Durable 3 Classic design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
  Benefits of 2 oz Copper PCB
Cooler than traditional motherboards
Enhanced durability
Improved energy efficiency
Greater margins for overclocking
2X Lower Impedance

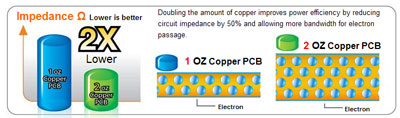

In addition, doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 Classic motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing for greater margins for overclocking.
  50,000 Hours Japanese Solid Capacitors
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.


Dynamic Energy Saver Advanced
GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the worlds only motherboard energy saving technology with hardware-based Dynamic 4-Gear Switching. GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.


DualBIOS - Patented Dual Hardware BIOS Protection
DualBIOS is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  Hardware OverVoltage Control IC - Enabling Extreme Overclocking
GIGABYTE Hardware Overvoltage Control ICs featuring more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control, which means there is no delay compared to the GPIO controller in past implementations. In addition, GIGABYTEs Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.
  EasyTune6
GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.

Specifications
CPU
  1. Support for an Intel  Core i7 series processor in the LGA 1366 package
    (Go to CPU Support List for the latest CPU support )
  2. L3 cache varies with CPU
QPI
  1. 4.8GT/s / 6.4GT/s
Chipset
  1. North Bridge: Intel  X58 Express Chipset
  2. South Bridge: Intel  ICH10R
Memory
  1. 6 x 1.5V DDR3 DIMM sockets supporting up to 24 GB of system memory (Note 1)
  2. Dual/3 channel memory architecture
  3. Support for DDR3 2000+/1333/1066/800 MHz memory modules
(Go to Memory Support List for the latest memory support list.)
Audio
  1. Realtek ALC888 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF In/Out
  5. Support for CD In
LAN
  1. 1 x Realtek 8111D chips (10/100/1000 Mbit)
Expansion Slots
  1. 2 x PCI Express x16 slots, running at x16 x16
    (The PCI Express slots conform to PCI Express 2.0 standard.)
  2. 1 x PCI Express x4 slot
  3. 1 x PCI Express x1 slot
  4. 3 x PCI slots
Storage Interface South Bridge:
  1. 6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
  2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 2x SATA 3Gb/s connectors (GSATA2_0, GSATA2_1) supporting up to 2 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1 and JBOD
iTE IT8720 chip:
  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394
  1. T.I. TSB43AB23 chip
  2. Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a brackets connected to the internal IEEE 1394a headers)
USB
  1. Integrated in the South Bridge
  2. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 8 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 3 x system fan headers
  8. 1 x power fan header
  9. 1 x North Bridge fan header
  10. 1 x front panel header
  11. 1 x front panel audio header
  12. 1 x CD In connector
  13. 1 x S/PDIF In header
  14. 1 x S/PDIF Out header
  15. 2 x USB 2.0/1.1 headers
  16. 1 x IEEE 1394a headers
  17. 1 x serial port header
  18. 1 x power LED header
  19. 1 x chassis intrusion header
  20. 1 x clearing CMOS jumper
Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x coaxial S/PDIF Out connector
  4. 1 x optical S/PDIF Out connector
  5. 2 x IEEE 1394a port
  6. 8 x USB 2.0/1.1 ports
  7. 1 x RJ-45 ports
  8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8720 chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System/North Bridge temperature detection
  3. CPU/System/Power fan speed detection
  4. CPU overheating warning
  5. CPU/System/Power fan fail warning
  6. CPU/System fan speed control (Note 2)
BIOS
  1. 2 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Virtual Dual BIOS
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune (Note 3)
  8. Support for Dynamic Energy Saver Advanced
  9. Support for Time Repair
  10. Support for Q-Share
Bundle Software
  1. Norton Internet Security (OEM version)
Operating System
  1. Support for Microsoft  Windows Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 24.4cm
Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
Note (Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 3) Available functions in EasyTune may differ by motherboard model.


* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.

* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
