ASUS Desktop Ethernet Switch - 16 Port 10/100Mbps

IMG 1 of 1
No Longer Available
Part Number:
102355
(?) Brand:
ASUS Web Site
Manuf No:
FX-D1161
FXD1161
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/2/2009
Details Files Images & Video
All stock codes associated to this product
FXD1161, FX-D1161

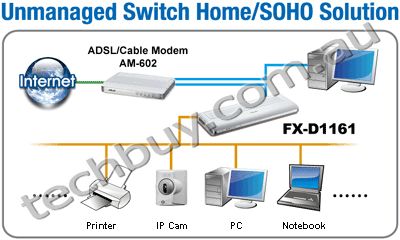

Asus new FX series desktop switch provides a simple solution for enjoying your lag-free network. The FX-D1161 provides 10 Mbps or 100Mbps auto-sensing connectivity for high-speed internet access. There is no software to configure and makes installation easier and faster. It also embedded energy-saving technology with full-features to satisfying your demand. The impact size without fan design is no more noise, which helps maintain a peaceful environment in your busy office. It can offer great performance and feature and cost-effective connection for corporate, SOHO and residential users.

Features

  • Enjoy high-speed internet up to 200 Mbps for fast connections and easy access.
  • Asus Green Network Technology embedded Advance power-saving function save money on energy
  • Non-Blocking architecture assures rapid packet delivery
  • Providing automatic cable detection on each port
  • Automatically detect speed and duplex odes of attached devices
  • Front panel LEDs allow users to monitor the switch status

  1. Simple to use
    Plug-and-Play functionality makes installation easier and faster

  2. Store and Forward
    Store and forward architecture ensure low latency and high data integrity

  3. Diagnostic LEDs
    Front panel LEDs allow users to monitor the switch status

  4. Multiple-placement
    Compact design save space and easily fits on a desk or mount on the wall.



Specifications
Performance
Transfer Rate (10 Mbps port): 14,800packets/sec
Transfer Rate (100 Mbps port): 148,000packets/sec
Switch Fabric: 3.2Gbps
Package Buffer Memory: 203KB
Packet Forwarding: 2.38Mpps
MAC Address Table: 4K
Safety
LVD
EMC
FCC,CE, VCCI,C-Tick
Data Transfer Rates
10Mbps and 100Mbps
Protocol
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3x Full Duplex Flow Control
Connector
16 x 10/100Mbps RJ-45 ports
Switch Fabric
Store and Forward
Power Consumption
6 W
Power Supply
DC 12V 1A Switching adaptor
Dimensions (app.)
280mm(L) x 103mm (W) x 25mm (H)
Net Weight (app.)
372g

  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year RTB

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
