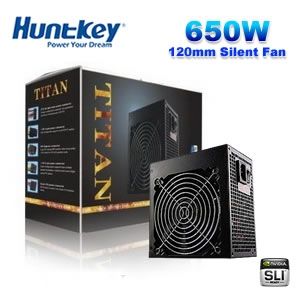

PSUHUNTITAN650W | HuntKey 650W True TITAN - ATX 12V, EPS12V v2.91, 120mm Fan

Features

Comply with ATX12V and EPS12V V2.91 Support PC, IPC, workstation, server
12cm ball bearing cooling FAN, Increases airflow & lifetime and reduces FAN speed and noise.
SLi Ready and support Intel & AMD Dual & Multi core
Easy moveable connector Plug and unplug the connectors easily & quickly
FAN speed auto control by thermal sensor inside power supply
Active Power Factor Correction Reduces line loss and power distortion, corrects power factor from typical 60% to theory-ideal 99%.
Four +12V output rails, Enhance +12V current capability and stable system operation under heavy operation.
Support Intel&AMD dual core&64bit CPUS
8pin connector for dual CPUS
PCI-E connector for GPU
MTBF: >50,000 hours at 25C
EMI: FCC part 15 Class B, EN55022 Class B

INPUT SPEC.

Input voltage: 90-264VAC
Input current: 4.0A (Max.)at 230VAC
Input frequency: 47-63Hz
Inrush current: <70A at 230VAC cold start at 25C

OUTPUT SPEC.

Output Max. power: 650W
Efficiency:70%Min,at full load 230VAC/50Hz
OVP: +3.3V +5V +12V
SCP: All output to GND

Environment Spec.

Turn on time 500msec. Max.
Hold up time 16ms. Min
Operation temperature 0Cto +50C
Storage temperature -40Cto +55C

Safety

CCC , CB, UL , TUV ,CB, CE, CSA,CUL, NEMKO,SAA,GS,VDE
