All stock codes associated to this product
, GERV1050EWT, G-ERV1050EWT
85PLUS ready!

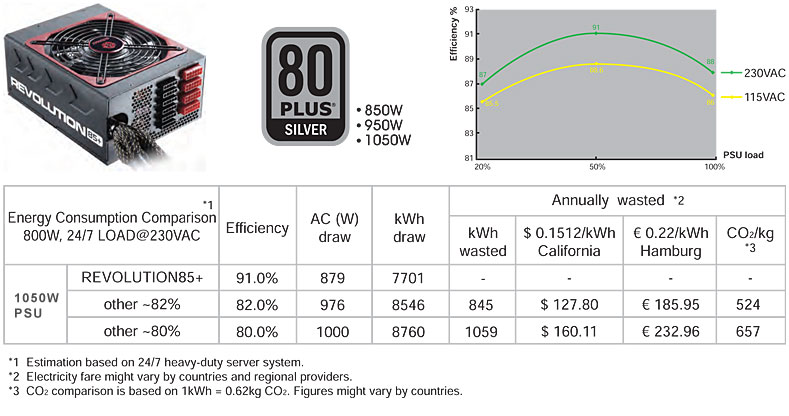

Worlds first PSU series with 85-91% efficiency @ 20-100% load and compliant with ENERGY STAR 5.0. Certified by 80 PLUS organizations. (88-91% for ERV1250EGT model)
FUTURE CPU ready!
Ready for most upcoming CPU generations by 12P sockets for possible connector changes, by complying to latest EPS12V PSU design guides for compatibility & by ZERO LOAD Design for C6 state functions.
FUTURE GPU ready!
Ready for most upcoming GPU generations by 12P sockets for possible connector changes, by six massive 12V rails for perfect load distribution & by ZERO LOAD Design for Hybrid Mode functions.
24/7 @ 50C ready!
Non-Stop industrial class performance at 50C/122F ambient.

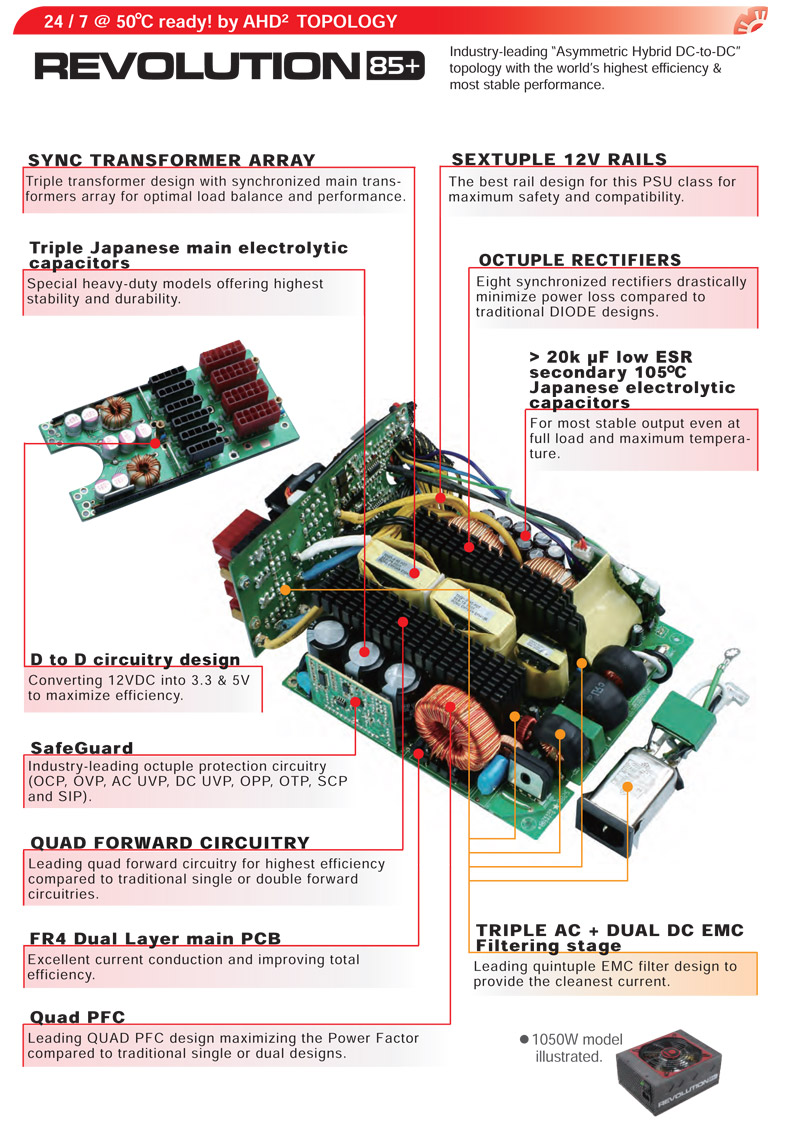

AHD Topology
Industry-leading Asymmetric Hybrid DC-to-DC topology with the worlds highest efficiency & most stable performance.
NVIDIA SLI certified.
(ENERMAX REVOLUTION85+ 1050W SLI, EVR1050EWT-00) NVIDIA, SLI are registered trademarks or trademarks of NVIDIA Corporation.
SILENT ready!
Ultra-quiet 13.5cm fan with intelligent RPM control guarantees cool performance and silent operation.
PowerGuard
PSU status monitor with 4-mode LED (Off / Stand-by / OK / Fail).

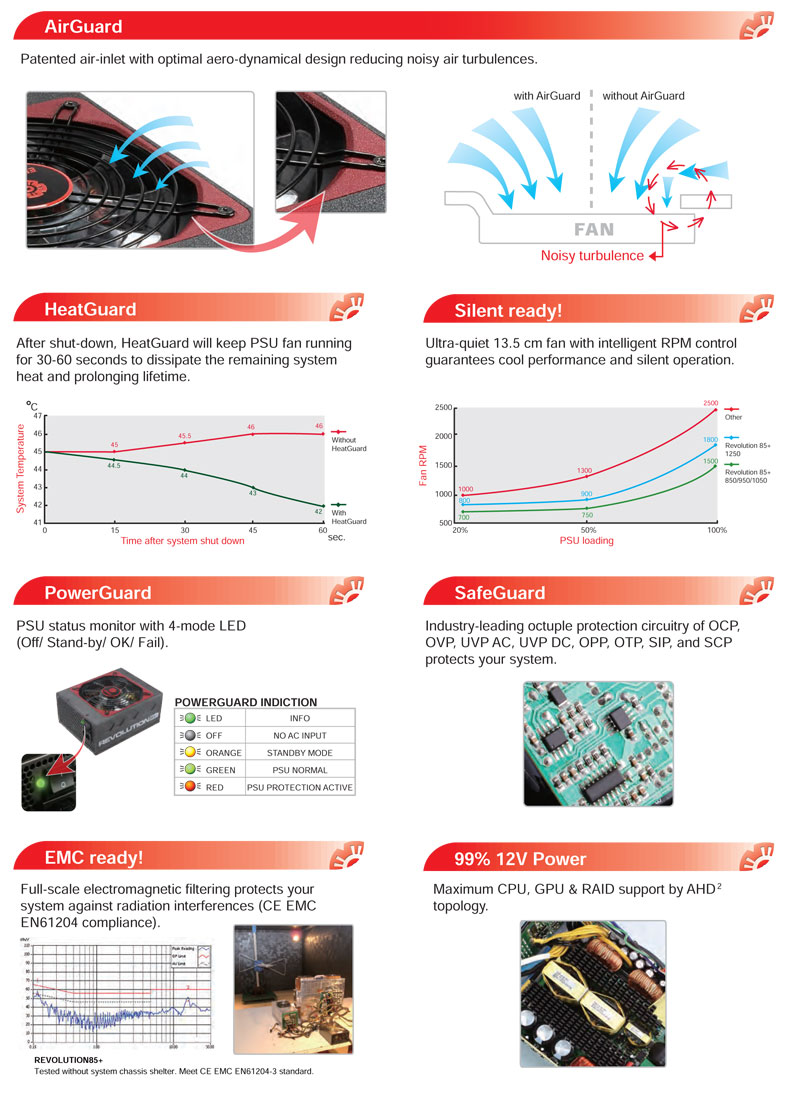

AirGuard
Patented air-inlet with optimal aero-dynamical design reducing noisy air turbulences.
HeatGuard
Keeping PSU fan running for 30-60 seconds after shut down to dissipate the remaining system heat prolonging lifetime by up to 20%.
99% 12V Power
World's first EPS12V PSU with 99% 12V output capability.
SERVER ready!
SSI PSDG 2009 support for latest Intel Core Extreme/i7, Xeon and AMD Opteron and SLI or CrossFireX and AMD GAME! or AMD GAME! Ultra systems and downward compatible with SSI PSDG 2008 1.0, EPS12V 2.92, 2.91, 2.8.
DXX ready!

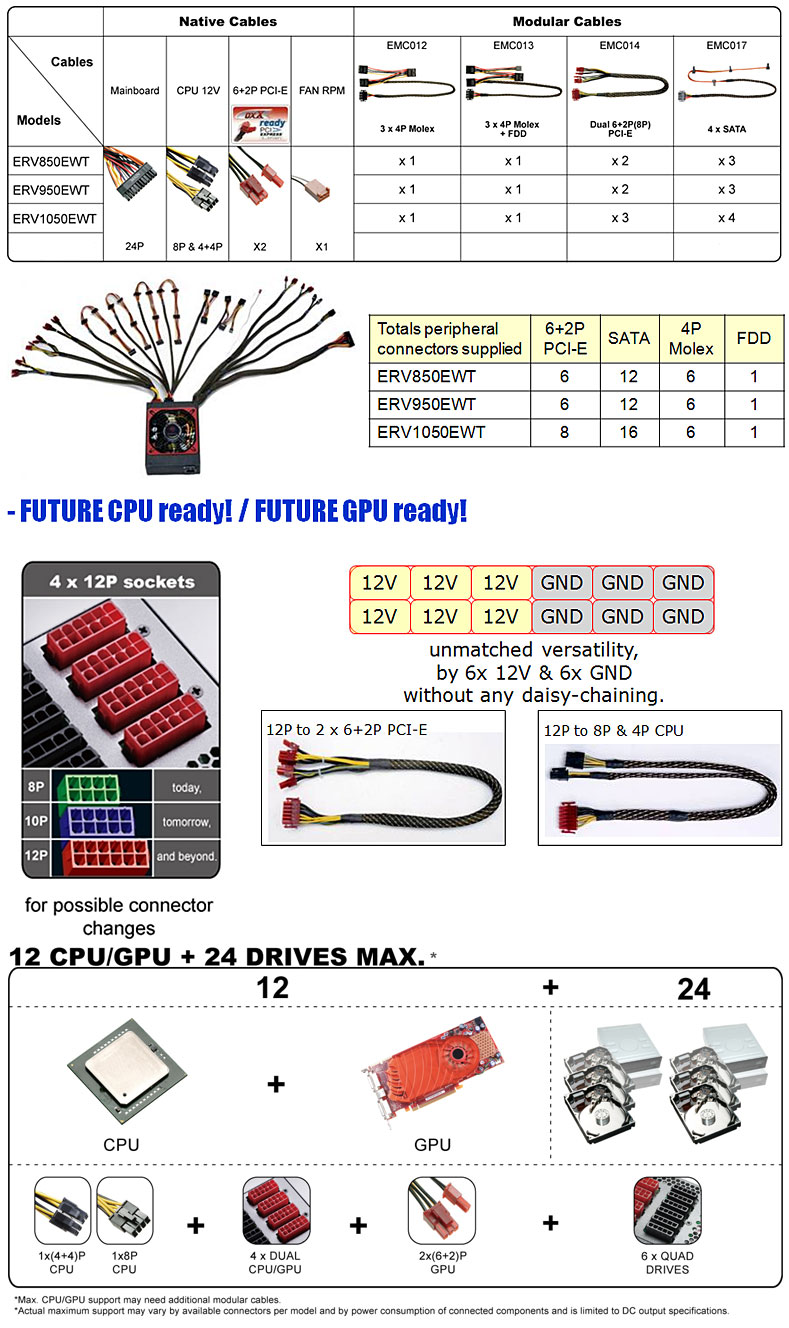

For PCI Express 2.0/DXX next-generation graphic cards with 6+2P (8P) PCIe connectors.
EMC ready!
Full-scale electromagnetic filtering protects your system against radiation interferences. (CE EMC EN61204 compliance).
Specifications
| AC input |
115-240VAC, 50-60hz, 11-5.5A, Active PFC (Maximum range: 100-264VAC, 47-63Hz) |
DC
output |
Rated |
3.3V |
5V |
12V1 |
12V2 |
12V3 |
12V4 |
12V5 |
12V6 |
-12V |
5Vsb |
| 0-25A |
0-25A |
0-30A |
0-30A |
0-30A |
0-30A |
0-30A |
0-30A |
0-0.6A |
0-5A |
| Combined |
170W |
1044W (87A) |
7.2W |
25W |
| Total Power |
1050W@50C |
| Peak Power |
1260W |
| Environment |
| Temperature |
Operation ambient: 0~50oC/32~122oF (for full rated output) |
| Storage ambient: -40~70 oC/-40~158 oF |
| Humidity |
Operation: to 85% relative humidity, non-condensing at 25 oC/77 oF |
| Storage: to 95% relative humidity, non-condensing at 50 oC/122 oF |
| Others |
| Cooling |
One 13.5cm two-ball bearing fan, speed auto controlled. |
| 850/950/1050W: 700-1500RPM |
| 1250W: 800-1800RPM |
| MTBF |
> 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25 oC |
| (MIL-HDBK-217F standard) |

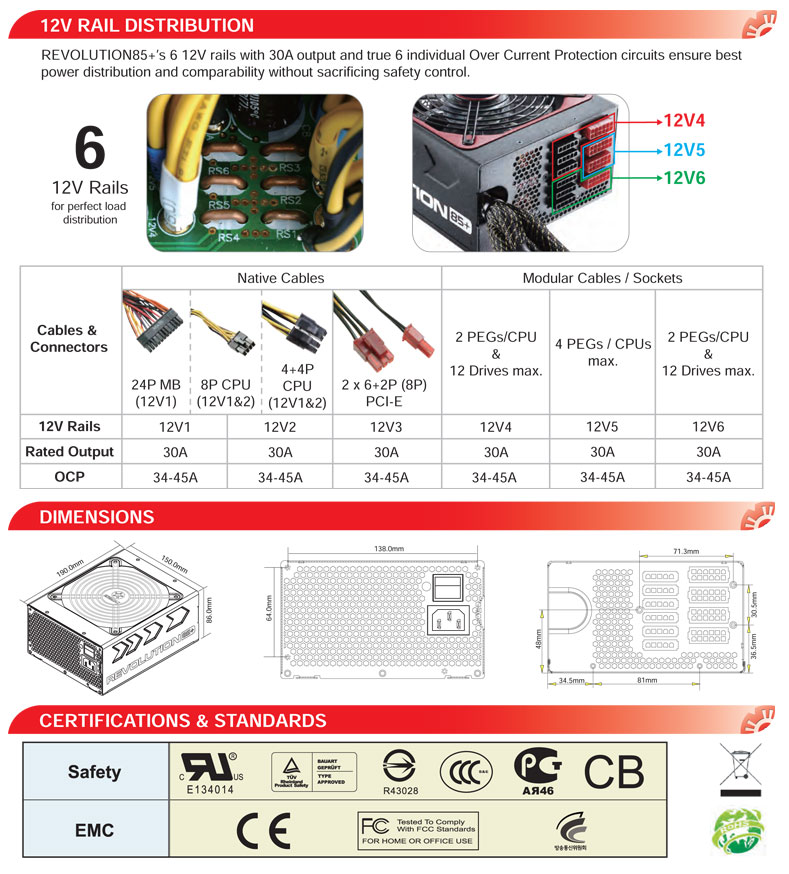

| Dimension |
150 (w) x 86 (h) x 190 (d) mm |
| Weight |
2.95kg (without modular cables) 50g |
| Safety |
UL/cUL(Level 6), TUV, CCC, GOST, CB, BSMI(850W only) |
| EMC |
CE, FCC, MIC |
