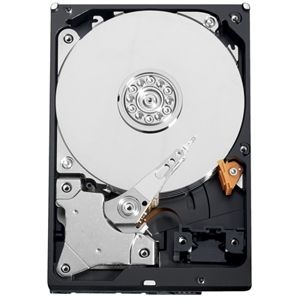

WD10EVDS | Western Digital 1000GB (1TB) 7200rpm Serial ATA-II-300 w. 32MB Cache

 WD AV-GP
AV Hard Drives
1 TB, Up to 120 Hours HD Video

Green Power for AV: Cool, quiet, reliable.



Power-conserving WD AV-GP SATA hard drives take advantage of WD's GreenPower technology to meet the extreme requirements of demanding audio and video environments. With power reduction of up to 40%, they deliver cool and quiet operation and reliability perfect for audio video applications such as PVRs, DVRs, set-top boxes (STBs) as well as surveillance video recording. Green drives from WD yield average drive power savings of 4-5 watts over competitors' drives while maintaining solid performance.

Long-Term Reliability - These drives are designed to last in high temperature always-on streaming digital audio/video environments such as PVR/DVR, DVR recorders and surveillance video recorders.

Quiet- Noise levels have been minimized to less than one sone* - virtually below the threshold of human hearing.

Reduced Power Consumption - WD has reduced power consumption by up to 40 percent compared to competitors' drives with the combination of WD's IntelliSeek, IntelliPark, and IntelliPower technologies.

Compatible - Tested for compatibility in a broad range of AV products including set top boxes, DVD recorders, and mainstream surveillance systems.

SilkStream - Optimized for smooth, continuous digital video playback of up to twelve simultaneous HD streams. SilkStream is compatible with the ATA streaming command set so CE customers can use standard streaming management and error recovery options.

IntelliSeek - Calculates optimum seek speeds to lower power consumption, noise and vibration.

IntelliPark - Delivers lower power consumption by automatically unloading the heads during idle to reduce aerodynamic drag.

Preemptive Wear Leveling (PWL) - The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio video streaming applications.

Use This Product When You Want To

• Set-top boxes (PVR, DVR and IPTV)
• Media servers
• Media centers
• Surveillance



Performance Specifications
	Rotational Speed	IntelliPower *
	Buffer Size	32 MB

Transfer Rates
	Buffer To Host (Serial ATA)	3 Gb/s (Max)

Physical Specifications
	Formatted Capacity	1,000,204 MB
	Capacity	1 TB
	Interface	SATA 3 Gb/s
	User Sectors Per Drive	1,953,525,168

Physical Dimensions
English
	Height	1.028 Inches
	Length	5.787 Inches
	Width	4.00 Inches
	Weight	1.32 Pounds

Metric
	Height	26.1 mm
	Length	147 mm
	Width	101.6 mm
	Weight	0.60 kg

Environmental Specifications
Shock
	Operating Shock (Read)	65G, 2 ms
	Non-operating Shock	250G, 2 ms

Acoustics
	Idle Mode	24 dBA (average)
	Seek Mode 3	25 dBA (average)

Temperature (English)
	Operating	32 F to 158 F
	Non-operating	-40 F to 158 F

Temperature (Metric)
	Operating	-0 C to 70 C
	Non-operating	-40 C to 70 C

Humidity
	Operating	5-95% RH non-condensing
	Non-operating	5-95% RH non-condensing

Vibration
	Operating
	Linear	20-300 Hz, 0.75 G (0 to peak)
	Random	0.004 g/Hz (10 to 300 Hz)

Electrical Specifications
Current Requirements
	12 VDC
	Read/Write	210 mA
	Idle	198 mA
	Standby	2.6 mA
	Sleep	2.6 mA

	5 VDC
	Read/Write	468 mA
	Idle	361 mA
	Standby	69 mA
	Sleep	69 mA

	Power Dissipation
	Read/Write	4.86 Watts
	Idle	4.18 Watts
	Standby	0.38 Watts
	Sleep	0.38 Watts

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.
