All stock codes associated to this product
SCKM02SL, SC-KM02-SL

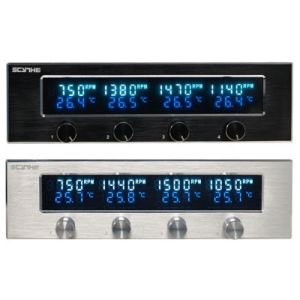

The small 5.25 " version of the new Kaze Master Ace Fan Controller. Noble brushed aluminum paired with a blue illuminated display makesthis to a premium fan-controller. Two fans can be independently regulated - two temperature sensors allow monitoring of the system temperature at two different points in the PC.
Precious aluminum design:
High-quality materials were used when producing the Kaze Master Ace. The front consists of brushed aluminum and accentuates the blue illuminated VFD display in an optimal way.
Fan control and temperature monitoring:
With the Kaze Master Ace, four fans can be controlled independently, and four temperatures (in either ° C or °F) can be monitored. An integrated acoustic alarm function (which can be deactivated by a jumper) warns the user from overheating and failure of a fan.
Wide range of fan controller:
The fan voltage can be independently controlled from 3.7 - 12 V, in addition, the fan can be switched off completely which allows the user to choose between high and ultra-cooling operation.
| Model Name: |
Kaze Master Ace 5.25 |
| Model Number: |
KM02-BK (Black)
KM02-SL (Silver)
|
| Manufacturer: |
Scythe Co., Ltd. Japan |
| Dimension (W x H x D) |
148.5 x 42.5 x 63 mm / 5.85 x 1.67 x 2.48 in |
| Display Dimension |
114 x 20 mm / 4.49 x 0.79 in
|
| DC Input |
5 V or 12 V (From PC Power Supply Unit) |
| Fan Adjustment Range |
3,7 V (10%) ~ 12 V (10%) |
| Fan Channel |
4 |
| Maximum Fan Ampere per Channel |
1 Ampere (= 12 W max.) |
| Fan Speed Range |
0 ~ 9990 rpm (Display: 30 rpm steps) |
| Temperature Module Channel |
4 |
| Temperature Range |
0 ~ 100C / 32 ~ 199,9F |
| Measurement Frequency |
Every 2 Seconds |
| Weight |
165 g / 5,35 oz. |
NOTICE: Please be aware that the KM01s panels have a thin layer of plastic that can be peeled off at your convenience.
