Specifications
CPU Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Celeron® E1000 Series and 400 Series CPU Support Intel® 45nm Multi-Core CPU
Support Enhanced Intel SpeedStep Technology (EIST)
*Refer to
www.asus.com for Intel CPU support list
Chipset Intel® G41 /ICH7
Front Side Bus 1333/1066/800 MHz
Memory 2 x240-pin DIMM, Max. 8 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Please refer to
www.asus.com or user manual for Memory QVL.
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Expansion Slots 1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA Integrated Intel Graphics Media Accelerator (Intel® GMA4500)
Supports Microsoft® DirectX 10
Supports RGB with max. resolution 2048 x
1536@75HzSupports DVI/HDMI with max. resolution 1920 X 1200 @60Hz
Storage Intel ICH7 controller
1 xUltraDMA 100/66
4 xSATA 3 Gb/s ports
LAN Atheros L1E PCIE Gb LAN controller
Audio ALC887 High Definition Audio 8 -Channel CODEC
Supports Jack-detect and Multi-Streaming teconologies
Support optical S/PDIF output
USB 8 USB 2.0 ports
Overclocking Features SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz to 800MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS AI NET 2
ASUS Q-Fan
ASUS Turbo Key
EPU 4-Engine
Back Panel I/O Ports 1 x DVI
1 x VGA
1 x PS/2 Keyboard
1 x HDMI
1 x PS/2 Mouse
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
4 x USB 2.0/1.1
8 -Channel Audio I/O
Internal I/O Connectors 2 x USB connectors support additional 4 USB 2.0 ports
1 x IDE connector
4 x SATA connectors
1 x S/PDIF Out connector
1 x CPU/1 x Chassis/ 1 x Power FAN connectors
COM connector
System Panel connector
1 x CD audio in connector
1 x High Definition front panel audio connector
1 x Printer connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
BIOS 8 Mb Flash ROM
AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a
Manageability WOL by PME,WOR by PME,WOR by Ring
O/S Compatibility Windows Vista
Windows XP
Accessories User's manual
1 x I/O Shield
1 x SATA cable
1 x UltraDMA 100/66 cable
Support Disc Drivers
ASUS PC Probe II
ASUS LiveUpdate Utility
Form Factor uATX Form Factor
9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm )
Product Details

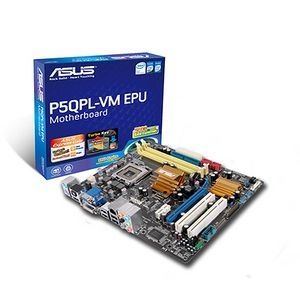

Product Name: P5QPL-VM EPU
Manufacture Code: P5QPL-VM EPU
Brand: Asus
Category: INTEL Socket 775
Achieva Code: MBDASUP5Q03F
Warranty: 3 Years
