ThermalTake 750W Evo Blue - ATX 12V v2.3, EPS 12V v2.91, 140mm Blue LED Fan, Modular Cables
  • 6xSATA, 2xPCI-E 8-Pin, 2xPCI-E 6-Pin

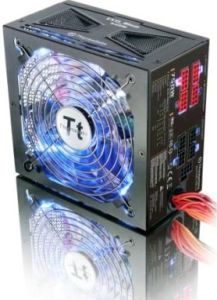

IMG 1 of 5
No Longer Available
Part Number:
112477
(?) Brand:
ThermalTake Web Site
Manuf No:
Shipping Weight:
3.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
W0308, SPTTW0308, SP-TTW0308
Overview

- Oversized 14cm whisper-quiet ball bearing fan dramatically reduces overall PC noise, increase system thermal efficiency.

- Intelligent variable speed controlled fan automatically increases or decreases fan speed to adjust to different system loading.

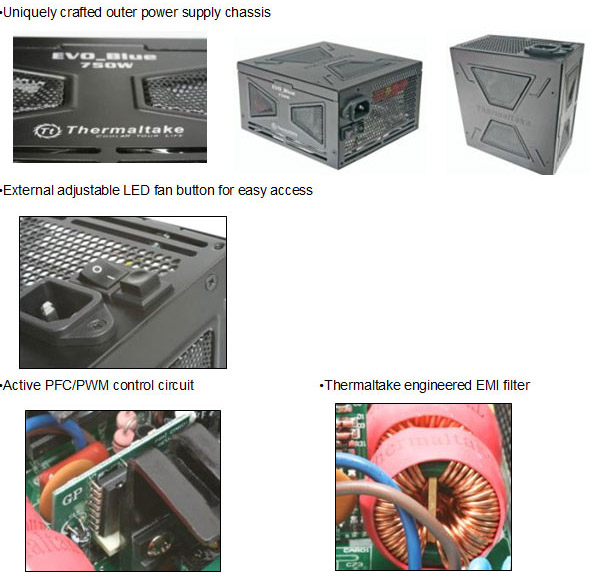

- Modular cable sockets with blue LEDs backlight & five user-adjustable LED environmental lighting effects

- Active PFC (PF>0.9) reduces heat build-up and energy loss to promote a more stable and efficient power conversion.

- Robust and dedicated single +12V output provides superior performance under all types of system loading.

- Cable Management improves internal airflow by reducing cable clutter within PC to promote accelerated heat removal.

- Features dual 8-pin PCI-E & dual 6-pin PCI-E connectors to support latest Nvidia 2-way / 3-way SLI & AMD 2-way / 3-way CrossFire X technologies.

- Uncompromised compatibility with all current and future system setup with Intel ATX 12V 2.3 & SSI EPS 12V 2.91 standards compliance.

- Individually tested to guarantee rock-solid continuous operation at 50 environment.

- Industrial-grade safety protections: Over Power, Over Voltage, and Short-Circuit protections.

- TT5Years Warranty:Thermaltake quality 5-years parts and labor warranty.

- Safety / EMI Approvals: UL,TUV, CE, FCC,BSMI and GOST certified.

- DIMENSION:150mm(W) x 86mm(H) x 160mm(L).
Features

Technology Feature:



Performance:


INPUT VOLTAGE: 550W 115V~230V
MODEL Voltage +3.3V +5V +12V -12V +5Vsb TOTAL POWER PEAK POWER
550W MAX Load 30A 28A 36A 0.8A 3A 500W 550W
Combined Wattage 140W 432W 9.6W 15W

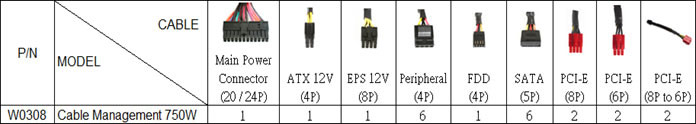

Cables Length & Connector:



MODELS
Connector Type
Connectors & Cable length
550W
650W
750W
24pin
1 x 20+4pin Main connector(650mm)
ATX 12V 4pin
1 x ATX 12V 4pin connector(650mm)
EPS 12V 8pin
1 x EPS 12V 8pin connector(650mm)
550W
650W
750W
Molex & FDD
3 x Peripheral & 1 x FDD connectors (500mm + 150mm + 150mm + 150mm) 3 x Peripheral (500mm + 150mm + 150mm)
550W
650W
SATA
2 x S-ATA connectors (500mm + 150mm) 2 x S-ATA connectors (500mm + 150mm)
750W
SATA
3 x S-ATA connectors (500mm + 150mm + 150mm) 3 x S-ATA connectors (500mm + 150mm + 150mm)
550W
PCI-E 6pin
2 x 6pin PCI-E connectors (500mm)
PCI-E 8pin
1 x 8pin PCI-E connectors (500mm)
650W 750W
PCI-E 6pin
2 x 6pin PCI-E connectors (500mm)
PCI-E 8pin
2 x 8pin PCI-E connectors (500mm)
550W
PCI-E 8pin to 6pin adapter
1 x 8pin to 6pin PCI-E adapter (100mm)
650W
750W
PCI-E 8pin to 6pin adapter
2 x 8pin to 6pin PCI-E adapter (100mm)

Specifications

Model W0308
Type Intel ATX 12V 2.3 & EPS 12V 2.91
Output Capacity 700W
Max. Output Capacity 750W
Color Black
Dimension ( W / H / D )
150mm x 86mm x 160mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) at 80% of full load at 230Vac input
Input Current 750W: 10A@115Vac,5A@230Vac
Input Frequency Range 47Hz ~ 63 Hz
Input Voltage 650W / 750W: 100Vac- 240Vac
Operation Temperature 10 to +50
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20 to +70
Storage Humidity 5% to 95%, non-condensing
Cooling System 140010%R.P.M.
Efficiency 75% (min.) at full load (typical) and 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval UL, TUV, CE, FCC,BSMI,GOST
PCI-E Connector 6Pin x 2, 8Pin x 2
