Key Features
USB 2.0 Support
A standard plug and play interface providing easy-to-use connectivity for USB devices.
PCI Express® 2.0 / 1.1 Support
Allows 500MB a lane or up to 8 GB/s at 16x speeds - allows for full support for new PCI-E 2.0 graphics cards.
Serial ATA - II
Also known as SATA2, features a 3.0 Gbit/s transfer speed, faster than Standard Serial ATA.
Solid Capacitors
Offers a longer lifespan, better stability when at high frequencies, can operate at higher temperatures, and no longer runs the risk of exploding.
Passive Heatsink
Consist of a metal heatsink.
On-Boad Clear CMOS Button
An onboard clear CMOS button which allows you to easily clear your BIOS without moving a jumper.
On-Board Power Button with Integrated Power Light
An onboard power button for easily powering on or off your system. Also shows a power indication light.
On-Board Reset Button with Integrated HDD Activity Light
An onboard reset button for easily rebooting your system as well as gives current status of your HDD via an activity light.
On-Board Diagnostics LED Readout
Helpful for when diagnosing a problem is needed.
2-Way SLI® Support
Feel free to turn up the eye candy and experience the performance of 2 Graphics Cards running together.
3-Way SLI® Support
Experience the amazing performance that only 3 Graphics Cards can deliver, a visual experience that will take you to the next level.
Windows XP™ Support
DDR3 Support
Full support for the latest in DDR technologies.
Triple-Channel Support
Supports Triple-Channel memory configurations for extreme amounts of system memory bandwidth.
Intel® X58/ICH10R Chipset
This chipset supports Triple-Channel DDR3 system memory configurations as well as Intel® Core i7 (Socket 1366) support and NVIDIA® 2-Way and 3-Way SLI® support.
Intel® Core i7 Support
With an integrated memory controller, Intel® Core i7 (Socket 1366) processors feature amazing performance for however you use your computer.
10 Phase Digital PWM
300% more gold content in the CPU socket
Super-low ESR and ESL film capacitors
Delivers up to 600w of CPU Power
Performance
Based on Intel X58/ICH10R chipset
Supports Intel Core i7 Processors
Memory
6 x 240-pin DIMM sockets
Triple Channel DDR3
Maximum of 24GB of DDR3 1600MHz+ Expansion Slot
4 x PCIe x16/x8, 1 x PCIe x1, 1 x PCI
1 x 32-bit PCI, support for PCI 2.1
Storage I/O
1 x UltraDMA133
9 x Serial ATA 300MB/sec with support for RAID 0, RAID1, RAID 0+1, RAID5, JBOD
Integrated Peripherals
8 Channel High Definition
2 x 10/100/1000
Multi I/O
1 x PS2 Keyboard
12 x USB2.0 ports (8 external + 4 internal headers)
Audio connector (Line-in, Line-out, MIC)
FireWire 1394A (1 external, 1 header)
Form Factor
EATX Form Factor
Length: 12in – 304.8mm
Width: 10.375in – 263.5mm
Notes:

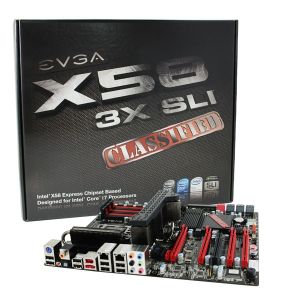

The ULTIMATE in X58 motherboards is here! The EVGA X58 Classified raises the bar for enthusiast grade motherboards everywhere.
With never before seen features such as 3-way SLI + PhysX + 1x PCIe device on a single board, 2 8pin +12V connectors capable of delivering 600 watts of power, 10 phase Digital PWM with a switching frequency of up to 1333KHz, three times the amount of normal gold content in the CPU socket and much, much more.
The EVGA X58 Classified motherboard is engineered for those who demand more than just the best!
