IMG 1 of 1
No Longer Available

Part Number:
118546
(?) Brand:
Manuf No:
167353
Shipping Weight:
1.2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
167353, 09E620KIT

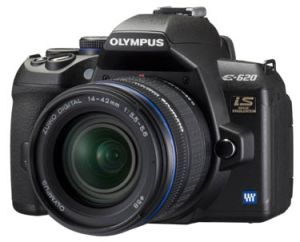

Olympus E-620 12.3MP DSLR Single lensKit Includes 14-42mm lens, 12.3 Megapixel Sensor, Dual axis 2.7 inch HyperCrystal III LCD Dual slot for CF and xD-Picture Cards 4 frames/sec sequential shooting


Superb portability, Built-in Image Stabiliser and Art Filters

The exciting new Olympus E-620 is designed for the photographer who seeks maximum portability in a DSLR camera and requires the convenience of built-in image stabilisation. Olympus in-camera Art Filters helps you to shoot with the creative edge, heightening the picture-taking experience and eliminates the hassles of computer-based picture manipulation.






In-camera Art Filters

Creative photography previously requiring the use of special lenses, optical filters, or the use of complex computer-based editing techniques can now be easily achieved at the moment of capture. The Art Filter shooting mode (Click on link to see how Art Filters work) in the E-620 provides real-time digital simulation of traditional film processing or optical filter effects that can be previewed in Live View, providing the photographer with a powerful tool for creative expression.

The set of six Art Filters consist of a colour intensifying filter (Pop Art ), a grainy black and white film filter (Grainy Film ), two filters that simulate soft lighting effects (Pale & Light Colour , Light Tone ), a soft focus filter (Soft Focus), and a pinhole camera effect filter (Pin Hole) - click on filter names to see actual user samples.

Soft Focus Filter acts as a beauty filter for portraiture

Pale Light & Color Filter gives a crossed-processed film look

Grainy Film Filter provides a high contrast B&W film pushed processed look with grain simulation

Pop Art Filter acts as a colour intensifying filter which preserves picture tonality





Sophisticated Multi-exposure shooting

Multi-exposure film photography is often tedious and challenging, requiring careful pre-capture planning by the photographer and a
rigid, linear process in execution. The E-620s intuitive multi-exposure function (Click on link to see how Multi-exposure works) simplifies multi-exposure photography by providing an overlay of a previous image onto a live preview of the current scene.



You can even combine previously captured raw pictures in playback review mode, providing the flexibility to create multi-exposures of scenes that can be far separated in time and location, without the use of a computer and time-intensive editing software.



New 7 point Autofocus with 5 twin cross AF points

The E-620 features fast autofocus with a newly designed wide area 7 point Autofocus system with 5 twin cross AF points. The single line sensors on the sides also feature twin-line sensor technology. The new AF sensor works in light levels between -1EV to 19EV.


Multi-aspect ratio shooting

The E-620 offers a choice of four aspect ratios for image capture: 4:3, 3:2, 6x6 and 16:9 formats. Live View photography with the High-Speed Imager AF enables auto-focusing with compact digital camera ease. The versatile flip-out swivel LCD screen makes both horizontal and vertically oriented Live View shooting easy and displays the live scene in the format chosen.




12.3 megapixels of quality

The E-620 features a 12.3 megapixel High-Speed Live Mos image sensor chip with improved dynamic range in highlights, and has the new Truepic III+ image engine.






Newly designed Image Stabiliser effective to -4 EV Steps

To maximise image capture quality, the E-620 features an image stabiliser with shake compensation up to four EV steps.** This capability provides the photographer with heightened confidence when shooting with long telephoto lenses or photographing in low light conditions. It also allows for ultrawide angle lenses to also benefit from image stabilisation.


This IS unit is brand new to the E-620, with an overall 20% decrease in weight compared to previous mechanisms, is signficantly reduced in dimensions and is more energy efficient than previous designs.


Installing a highly effective image stabiliser in-body instead of in-lens brings a compelling cost-performance advantage by providing stabilisation benefit to all system lenses. It further provides for compact lens designs which would otherwise be size-compromised by additional in-lens stabiliser components. In-body stabilisation further preserves the telecentric light path characteristics of Olympus Zuiko Digital lenses, ensuring that image quality even at picture corners is not sacrificed when stabilisation is activated.



Dust-free reliability

The world's most effective dust-reduction system, the proven Olympus Super Sonic Wave Filter (SSWF), is used to provide assurance of truly fuss-free, dust-free image captures.




Bright Optical Viewfinder and Swivel 2.7 inch Live View LCD

A new improved optical viewfinder with 95% viewing coverage and 0.96x magnification enables the photographer to see the scene clearly.




A favourite feature of many macro photographers and creative photographers who demand compositional freedom, a dual-axis LCD screen provides maximum Live View shooting flexibility in high and low-angle photography, both in vertical or horizontal shooting camera positions.



Illuminated buttons

For enhanced ease-of-use in low-light situations, frequently used buttons on the E-620 are illuminated.






Wireless Flash capable

Standard with all current Olympus DSLR cameras, wireless flash photography capability is integrated in the E-620.

With the built-in flash acting as commander, the E-620 can control up to three separate groups of wireless flash units. An unlimited number of FL-50R and FL-36R flash units may be used within each of the three flash groups to increase lighting power. The E-620's built-in flash commander makes buying a separate wireless flash trigger unit unnecessary.






Normal flash synchronisation speed with non-dedicated strobe units is 1/180th second. In the special Super FP mode with the new FL-50R, FL-36R, and current FL-50 and FL-36 strobe units, flash sync speed can be as high as 1/4000th second, providing the photographer with enhanced creative fill flash possibilities in bright daylight.



New HLD-5 battery grip

The E-620 sports a new compact optional battery grip that features an additional shutter release for vertically held shooting and an additional control dial. This grip accepts up to two BLS-1 batteries for enhanced battery endurance and provides ergonomic balance for use with longer or larger lenses.


Image quality begins with the lens

Olympus understands that image quality is not a function of the camera body alone. Without lenses designed for the unique demands of digital image sensors, even the best sensor technology in the world cannot deliver the best possible pictures.

To this end, the Olympus E-system lens catalog provides the widest range of uniquely designed-for-digital lenses, providing 35mm film format equivalent focal lengths from an ultra-wide 14mm to a super-telephoto range of 600mm (and up to 1200mm with the superb EC-20 converter).


Olympus Zuiko Digital lenses are renowned for class-leading compactness and performance at every focal length, and are surprisingly affordable, providing outstanding price-performance qualities through the range.





Product Name   Olympus E-620
Model   E-620
Type   Single-lens reflex Live View digital camera with interchangeable lens system
Compatible Lens   ZUIKO Digital, FourThirds System lens
Lens Mount   FourThirds mount
Media   CompactFlash card (Type I and II), Microdrive, xD picture card. (Dual slot). UDMA support
Effective Pixel Number   12.3 million pixels
Imager Size   17.3mm x 13.0mm
Type   High Speed Live MOS sensor
Total Pixel Number   Approx. 13.1 million pixels
Aspect Ratio   4:3
Filter Array   Primary colour filter (RGB)
LPF   Fixed type
IR Cut Filter   Hybrid type
Dust Protect Filter   SuperSonic Wave Filter
Viewfinder Type   Eye-level TTL Optical
Field Of View   95%
Magnification   Approx. 0.96x (-1m-1, 50mm lens, infinity)
Eye Point   Approx. 18mm (-1m-1) *from eyepiece
Diopter Adjustment   -3.0 to +1
Focusing screen   Fixed (Neo Lumi-Micro Mat screen)
Mirror   Quick return mirror
Viewfinder Information   Aperture value, Shutter speed, Record mode, AF confirmation mark, Flash, WB, AE lock, Number of storable still images, Exposure compensation value, Metering mode, Battery warning, Exposure mode, AF frame (super impose), IS, Bracket,
ISO value
Depth Of Field Preview   Yes
Eye Cup   Interchangeable type EP-5/6/7/8, EP-8 is supplied (Magnifier Eyecup ME-1 is available)
Eye Piece Shutter   Eye piece cover EPC-1 supplied
Live Preview Type   High speed Live MOS Sensor for still picture shooting is used, 100% field of view, Exposure adjustment pre-view, White balance adjustment pre-view, Gradation auto pre-view, Face detection pre-view, Perfect shot pre-view, Grid line displayable, 5x/7x/10x magnification possible, MF/S-AF,
AF frame display, AF point display, Shooting information, Histogram, IS activating mode.
Image stabilizer   3 modes (2 dimensional activation, 1 dimensional activation in landscape frame for horizontal pan shooting, 1 dimensional activation in portrait frame for horizontal pan shooting). Manual input of lens focal length setting possible for image stabilisation of OM Zuiko lenses when lens adapter MF-1 is used.
Autofocus Type   High speed imager AF, Phase-difference detection AF
Focus Modes   Single AF (S-AF) / Continuous AF (C-AF) / Manual Focus (MF) / S-AF + MF / C-AF + MF * C-AF mode is not available with the contrast detection system
AF Detection Range   EV -1 to 19 EV (at 20 degrees C; ISO 100)
Focus Areas   7 points AF sensor with the phase-difference detection system 5points cross AF sensor / 7 points twin AF sensor ) 7-area multiple AF with the contrast detection system (Auto, selectable in option)
Focus Area Selection   Single target, All targets with the phase-difference detection system Single, all 7 area, or Face detection with the contrast detection system
AF Assist Lamp   Built-in flash (can be deactivated), or AF assist beam on optional Olympus dedicated flashes
AF Lock   Locked at first position of Shutter button in Single AF mode / AEL button (customizable)
Focus Tracking   Interlocked with Continuous AF mode
Focus Aid   Available
Manual Focus   Available by rotating focus ring, available for setting manual focus operation in AF mode (customised)
Metering System   TTL open aperture light metering with 49-zones multi-pattern sensing system
Metering Modes   (1) Digital ESP metering (49-point multi pattern metering)
(2) Centre weighted average metering
(3) Spot metering (approx. 2% of the viewfinder screen)
(4) Spot with Highlight bias
(5) Spot with Shadow bias
Metering Range   EV -1 to 20 (Digital ESP metering, Centre weighted average metering, Spotmetering)
(Normal temperature, 50mm f2, ISO 100)
Exposure Modes   (1) Auto (2) P: Programme AE (Programme shift can be performed) (3) A: Aperture priority AE (4) S: Shutter priority AE (5) M: Manual (6) Scene programme AE (7) Scene select AE
Scene Program AE   Portrait, Landscape, Macro, Sport, Night + Portrait
Scene Select AE   Children, High Key, Low Key, DIS mode, Nature Macro, Candle, Sunset, Fireworks, Documents,
Panorama* (* Available with the Olympus xD-Picture Card), Beach & Snow,Underwater Wide, Underwater Macro
Exposure Compensation   5 EV in 1/3, 1/2, 1 EV steps selectable
AE Lock   AEL button (customizable)
Exposure Bracketing   3 or 5 frames in 0.3, 0.5, 0.7, 1EV steps selectable
ISO Sensitivity (Auto)   AUTO: ISO 200 - 3200 (customizable, Default 200-800)
ISO Sensitivity (Manual)   ISO 100 - 3200, 1/3 or 1 EV steps
Shutter Type   Computerised focal-plane shutter
Shutter Speed   P(Ps), S, A, M mode: 60 - 1/4000 sec.

Bulb: up to 30 min. (selectable longest time in the menu. Default: 8 min.

1/3, 1/2, or 1EV steps selectable.
X-sync speed   1/180 sec. or longer, Super FP up to 1/4000 sec.
Shutter release   Soft-touch electromagnetic release
Self-Timer   Operation time: 12 sec., 2 sec. (cancel available)
Remote Cable Release   Available (with optional RM-UC1 Remote cable.)
Remote Control   Operation time: 2 sec., 0 sec., bulb control available (with optional RM-1 remote control)
Drive Modes   Single-frame shooting, Sequential shooting H, Sequential shooting L, Self-timer, Remote control
Sequential Shooting Speed   Approx. 4 frames/sec. in sequential shooting H, 1 to 3 fps selectable in sequential shooting L.
Max. Frame Number On Sequential Shooting   RAW mode: 5 frames

JPEG mode: Depends on compression ratio and no. of pixels
(Large normal mode: approx. up to card capacity with SanDisk Extreme IV 4GB)
Auto WB System   Hybrid detection system with High speed Live MOS sensor and dedicated external sensor.
Preset WB   8 settings (3000K - 7500K)
Lamp (3000K), Fluorescent 1 (4000K), Fluorescent 2 (4500K), Fluorescent 3 (6600K), Daylight (5300K), Flash (5500K), Cloudy (6000K), Shade (7500K)
Custom WB   1 setting can be registered at Kelvin temperature (2000K - 14000K)
WB Compensation   7 steps in each A-B/G-M axis (in Auto WB / Preset WB mode / One touch WB)
One Touch White Balance   1 custom setting can be registered
WB Bracketing   3 frames in 2, 4, 6 steps selectable in each A-G/G-M axis.
Image Processing Engine   TruePic III+
Colour Space   sRGB / Adobe RGB
Picture Modes   Vivid, Natural, Muted, Monotone (default setting: Natural)
Monotone Filter Effect   Yellow, Orange, Red or Green filter available
Picture Tones   Sepia, Blue, Purple or Green tone available for Monotone
Gradation   4 levels (Auto, High key, Normal, Low key)
Built-in Flash Type   Retractable pop up flash
Pop up   Automatic or manual
Guide number   GN=17 at ISO200, (GN=12 at ISO 100m)
Flash intensity control   Up to 3 EV in 1/3 EV steps
Flash bracketing   3 frames in 0.3, 0.5, 0.7, 1 EV steps selectable.
Flash Modes   Auto, Red-eye reduction, Red-eye reduction slow sync., Slow sync at 1st curtain, Slow sync at 2nd curtain, Fill-in,
Manual (1/4, 1/16, 1/64), Off.
External Flash Control Type   Wireless (with FL-50R and FL-36R), TTL auto FP / TTL auto for Olympus dedicated flash, auto or manual
Wireless Flash Capable   Yes; with compatible external flash units FL-36R and FL-50R
Control panel information   Battery information, Exposure mode, Shutter speed, Aperture value, Expsosure compensation value, ISO sensitivity,
Exposure compensation indicator, Exposure indicator, Flash intensity compensation indicator, Date, BKT setting,
NR setting, WB, WB comensation value, Picture mode, Flash mode, Record mode, Image size, Card information,
Drive mode, Flash intensity compensation value, Metering mode, Recordable still image number, Focusing mode,
FP warning, AF frame, AF illuminator disactivated notification, , Colour space, Sharpness, Contrast, Saturation,
Gradation, IS activating mode, Face detection, RC mode setting, My Mode, Flash Charge, Multi Exposure, Aspect Ratio
Playback Monitor Type   Dual Axis Variable Angle, HyperCrystal LCD (transmissive TFT colour LCD)
Size   2.7 inch / 6.9cm
Pixel Number   Approx. 230,000 pixels
Playback Field Of View   100%
Brightness control   Brightness 15 levels; Colour Balance 15 levels
Playback Display mode   Single-frame, Index (4/9/16/25/49/100 frames), Calendar, Close-up ( 2 - 14X),
Slideshow, Picture rotation (auto mode available), Light box

Playback Information   Histogram (independent luminance / RGB available), Highlight / Shadow point warning, AF frame, Shooting information
Erase Modes   Single frame, All frames, Selected frames (with protect function)
Image Protect Mode   Single frame, Selected frames, Release protect (Single/All selected)
Copy Mode   Single frame, All frames, Selected frames
Type Of Recording Format   DCF, DPOF compatible/Exif, PRINT Image Matching III;

Aspect ratios available:
4:3(Default)3:216:96:6
Type Of File Format   RAW (12-bit lossless), JPEG, RAW+JPEG
RAW+JPEG Recording   Yes
File Size   RAW: 4032 x 3024 (approx. 1/1.5 lossless compressed) Approx. 13.9MB
Large: 4032 x 3024 Super fine (1/2.7 compressed) Approx. 8.2MB
4032 x 3024 Fine (1/4 compressed) Approx. 5.7MB
4032 x 3024 Normal (1/8 compressed) Approx. 2.7MB
4032 x 3024 Basic (1/12 compressed) Approx. 1.8MB
Middle 3200 x 2400 Super fine (1/2.7 compressed) Approx. 5.4MB
3200 x 2400 Fine (1/4 compressed) Approx. 3.4MB
3200 x 2400 Normal (1/8 compressed) Approx. 1.7MB
3200 x 2400 Basic (1/12 compressed) Approx. 1.2MB
2560 x 1920 Super fine (1/2.7 compressed) Approx. 3.2MB
2560 x 1920 Fine (1/4 compressed) Approx. 2.2MB
2560 x 1920 Normal (1/8 compressed) Approx. 1.1MB
2560 x 1920 Basic (1/12 compressed) Approx. 0.8MB
Small 1600 x 1200 Super fine (1/2.7 compressed) Approx. 1.3MB
1600 x 1200 Fine (1/4 compressed) Approx. 0.9MB
1600 x 1200 Normal (1/8 compressed) Approx. 0.5MB
1600 x 1200 Basic (1/12 compressed) Approx. 0.4MB
1280 x 960 Super fine (1/2.7 compressed) Approx. 0.9MB
1280 x 960 Fine (1/4 compressed) Approx. 0.6MB
1280 x 960 Normal (1/8 compressed) Approx. 0.3MB
1280 x 960 Basic (1/12 compressed) Approx. 0.3MB
1024 x 768 Super fine (1/2.7 compressed) Approx. 0.6MB
1024 x 768 Fine (1/4 compressed) Approx. 0.4MB
1024 x 768 Normal (1/8 compressed) Approx. 0.3MB
1024 x 768 Basic (1/12 compressed) Approx. 0.2MB
640 x 480 Super fine (1/2.7 compressed) Approx. 0.3MB
640 x 480 Fine (1/4 compressed) Approx. 0.2MB
640 x 480 Normal (1/8 compressed) Approx. 0.1MB
640 x 480 Basic (1/12 compressed) Approx. 0.1MB
In-Camera RAW Development   Yes
Image Editing   Shadow adjustment, Red-eye fix, Triming, Monotone, Sepia, Saturation (colour depth), Resize (producing another file), Aspect Change 2-3 pictures, merge gain step 0.1-2.0 0.1 step
PictBridge   Yes
Languages   English, French, German, Spanish, Italian, Japanese, Korean, Traditional Chinise, Simplified Chinise, Russian, Czech, Dutch, Danish, Polish, Portuguese, Swidish, Norwegian, Finnish, Croat, Slovenian, Hungarian, Greek, Slovakian, Turkish, Latvian, Estonian, Lithuanian, Ukrainian, Serbian, Bulgarian, Rumanian, Indonesian, Malay, Thai
User programmable custom settings   Custom reset - 2 settings are recordable
My mode - 2 settings are recordable

PC Interface   USB 2.0 High Speed; Dedicated multi-connector (Video: NTSC/PAL selectable, Optional Remote cable RM-UC1 is available)
Video Signal Output   NTSC or PAL selectable
Flash attachment   Hot shoe
Battery   BLS-1 Li-ion battery (included); Power battery holder HLD-5 compatible
Sleep Mode   Available (1, 3, 5, 10 min., off selectable)
Battery life   Approx. 500 shots using optical viewfinder only (with 50% flash shots) (with BLM-1 under CIPA testing standard) with BLS-1 (under CIPA testing standards)
Dimensions   130 mm (W) x 94.0mm (H) x 60 mm (D) (excluding protrusions)
Weight   475g (body only)
Operating Temperature   0 - 40; (operation) / -20 - 60; (storage)
Operating Humidity   30 - 90% (operation) / 10 - 90% (storage)
Box contents   Body, Li-ion battery BLS-1, Li-ion battery charger BCS-1, USB/Video Multi cable, Eye piece cover EPC-1, Shoulder strap, OLYMPUS Master CD-ROM, Instruction manual, Warranty card.


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

[ There are no visitor reviews for this product yet]

Review Product
Click on a thumbnail to view it below

No related products found.


L7: 1 | TM: 0 | LM: 0 | TY: 1 | T: 198
We accept the following with No surcharge on VISA, Mastercard and Paypal!
� Techbuy Pty Ltd 2000 - 2026 All rights reserved.
All prices shown on techbuy.com.au are in $AUD and inclusive of GST. Prices and availability are subject to change without prior notice. Images displayed are accurate to the best of our knowledge and we will not be held responsible for purchases based soley on these images. All brands and names are trademarks of their respective companies. Shipping Australia wide to all metro and regional areas (Sydney, Melbourne, Brisbane, Adelaide, Perth) and Internationally. For more information, please see our usage policies.
