Foxconn Renaissance Motherboard
LGA1366, Intel X58, ICH10R, QPI 6.4GT/s, 3x DDR3-1600, 4x PCI-Ex16 v2.0, 6x SATA-II, 2x eSATA, RAID, GigLAN, 8Chl, Firewire, ATX

Foxconn'Digital life aims to delivery high performance computing, connectivity and digital entertainment.With more options for accessing and managing other devices, enhanced reliability features and new PC multimedia technologies, Renaissance is the ideal choice for a digital lifestyle. This motherboard is based on the Intel X58chipset - providing ultimate performance for today's desktop computers. The X58 supports the latest industry technologies - Intel Bloomfield series processors, and DDR3 1600MHz(via overclocking) memory. 100% SOLID Capacitor design, Ferrite Choke power delivery and Cool Pipe design help to maximize performance and increase reliability.and provides digital audio outputs via S/PDIF OUT and Harp Audio Card. Supports DTS CONNECTTM and Dolby Digital LiveTM certigication,guarantees the highest quality fidelity for games and movies.

	DTS CONNECT & Dolby Digital Live audio ENABLING DIGITAL ENTERTAINMENT
	Exceptional audio quality, with 110dB SNR, DTS CONNECT and Dolby Digital Live certification guarantees the highest quality fidelity for games and movies.
	What is Dolby Digital Live? Converts PC audio to a Dolby Digital format for a dramatic, real-time audio experience for game play and simple (one plug) connection to other home theater devices How does Dolby Digital Live benefit the customer? Easy networking: enables a single digital connection to other devices. Realistic, cinematic gaming with the gamer in the center of the action.
	DTS CONNECT ENABLING DIGITAL ENTERTAINMENT

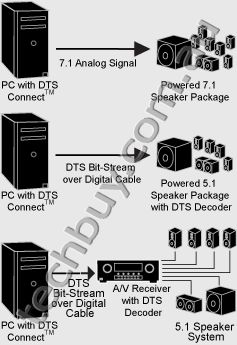

	DTS Connect includes DTS Neo:PC and DTS Interactive to bring new sound capabilities to the PC. DTS Neo:PC converts stereo sources into 7.1 channel sound DTS Interactive enables the user to re-encode multichannel sources into 5.1 channel DTS Digital Surround for playback through a home entertainment system.

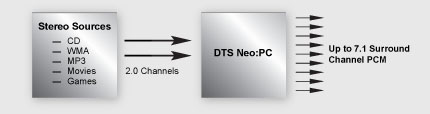

	Listen to Stereo Movies and Music in Surround Sound What is DTS Neo:PC DTS Neo:PC expands conventional stereo sources (CD, MP3, WMA, even Internet FM radio) into as many as 7.1 channels of surround sound. Virtually any stereo sound source connected to or stored on the PC can be expanded as shown in the following diagram:

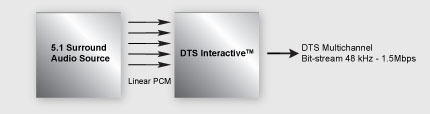

	What is DTS Interactive? DTS Interactive encodes any 5.1 channel audio source into full DTS Digital Surround and links a PC to a DTS capable home entertainment system. DTS Interactive connects a PC with a home entertainment system with a single digital cable, making setup simple. The diagram below illustrates the DTS Interactive encoding process.
	Dual Digital Audio ENABLING DIGITAL ENTERTAINMENT
	Digital Fibre/Optical and Coaxical S/PDIF outputs provide the highest quality sound output, and more flexibility for connecting audio systems. Dual Digital Audio enables you to isolate different sound sources on your PC and split them between either the two digital outputs or via analogue 7.1 channel audio and front panel audio outputs .

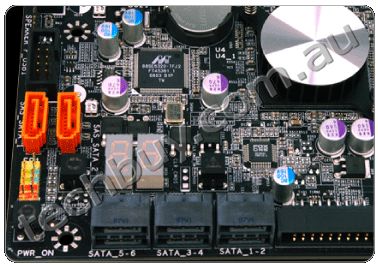

	Enhanced Connectivity CONNECTIVITY FOR THE DIGITAL WORLD SAS (Serial SCSI) interface supports up to 2 SAS devices

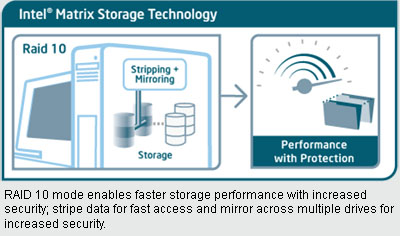

	Intel Matrix Storage Technology Easy configuration of RAID disk set-ups for improved performance, separate performance data (e.g. games), and valuable data (e.g. O/S) for the best performance and security solution. Intel Rapid Recover enables easy and automatic back-up of data , with the capability to immediately recover lost files.

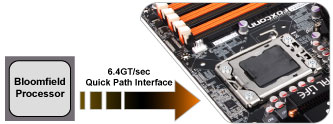

	Supports latest Intel socket 1366 processors ENGINEERED FOR PERFORMANCE COMPUTING AND RELIABILITY Supports latest Intel socket 1366 processors

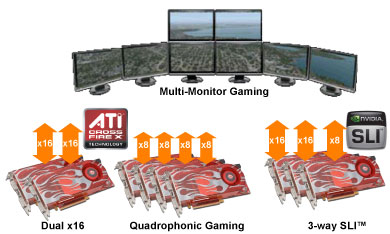

	Supports CrossFireX and 3-way SLI ENGINEERED FOR PERFORMANCE COMPUTING
	4* PCIe x16 Gen2.0 ( 2*x16 or 4* x8 mode) with CrossFireX and NVIDIA SLI TM support delivers unrivalled graphics expansion capability.
	PCIe Generation 2.0 PCI Express Gen2.0 technology doubles the available aggregate bandwidth between PCIe Generation 2 cards and the motherboard. This means a Gen2.0 16-lane (x16) link can provide up to 16GB/s of bandwidth , 8GB/s in each direction. PCIe2.0 is backwards compatible, and so existing PCIe Gen1 cards can be plugged into Gen eration 2.0 slots.

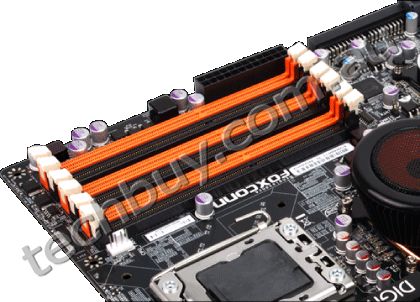

	Supports Triple Channel DDR3 1600(oc)/1333/1066 ENGINEERED FOR PERFORMANCE COMPUTING AND RELIABILITY
	Supports Triple channel DDR3 1600(oc)/1333/1066 MAX 24G DDR31600(oc)MHz support unlocks more performance when overclocking CPU with memory, by removing the bottleneck between memory and system bus.
	100% SOLID Capacitor & Ferrite Choke Design ENGINEERED FOR PERFORMANCE COMPUTING

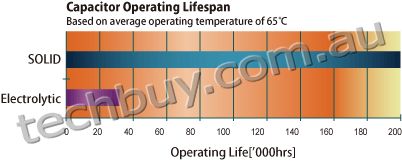

	Foxconn's 100% SOLID Capacitor design improves component reliability, by replacing electrolytic capacitors with solid versions, this removes the risk of capacitor failure damaging the PCB and surrounding components, whilst improving overall system performance and stability. Solid capacitors are much more durable than standard electrolytic versions, typically lasting around 6 times longer and withstanding higher operating temperatures.
	Ferrite Choke Ferrite Choke design improves power delivery to the motherboard. By using an iron-oxide core, the Ferrite Choke design can hold energy at a higher frequency than traditional iron cores, resulting in less power loss, and more stability and performance capability for your system, especially when under heavy loading.
	FoxOne Premium ENGINEERED FOR PERFORMANCE COMPUTING

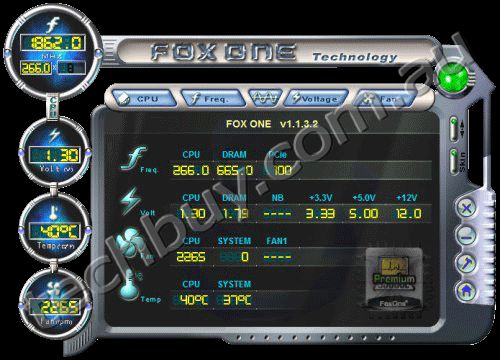

	FoxOne Premium technology enables easy overclocking, voltage adjustment, fan control and system monitoring from a dedicated Windows application
	LED Debug Display & Onboard On/Off/CMOS Reset Buttons ENGINEERED FOR PERFORMANCE COMPUTING AND RELIABILITY

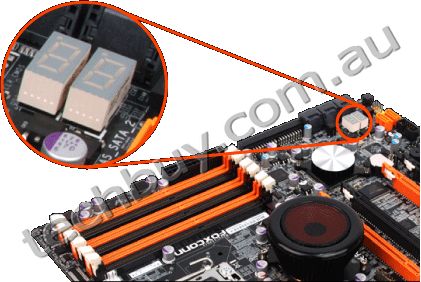

	2-digit LED readout displays hardware status and enables quick error diagnosis. Onboard power (on/off/reset) and CMOS Reset buttons are located directly on the motherboard PCB, so you can easily start and reset your system whilst testing it on the workbench, or clear CMOS after failed overclocking attempts.
