Pentium 4, Celeron D, Pentium D, Core 2 Duo, Core 2 Quad, Core 2 Extreme, Pentium Dual-Core, Core i7, Sempron, Athlon 64, Athlon 64 FX, Opteron, Dual-Core Opteron, Phenom, Athlon 64 X2 Dual-Core, Phenom II

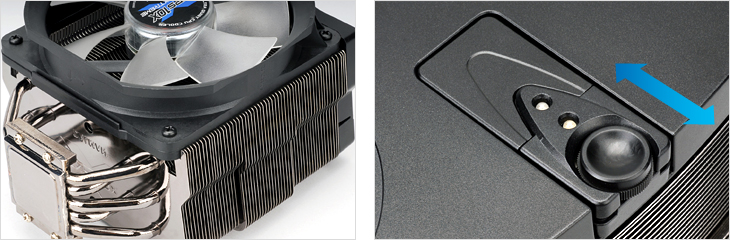

 Powerful Cooling Performance
Optimally designed aluminum fins disperse heat away from the CPU via 5 heatpipes, while the high capacity 120mm fan quickly cools the heatsink for stable operation of high performance CPUs.
|
PWM Fan with Auto/Manual Control
Includes PWM Mate, the worlds first RPM controllable PWM fan speed controller, with the options of 3-Speed Auto or Manual Control Modes.
PWM Mate can be installed on the cases exterior by connecting with the included Extension Cable.
|

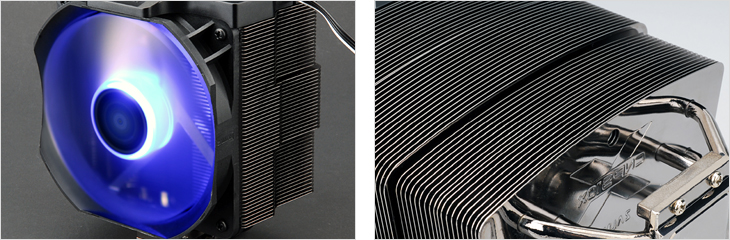

Ultra Quiet 120mm Blue LED Fan
Switching noise eliminated 120mm fan incorporated for ultra quiet operation and Blue LEDs for cool aesthetics.
Switching noise is the high frequency harmonic noise that can result from voltage regulation.
|
Black-Pearl Nickel Plating
The entire heatsink of CNPS10X Extreme is Black-Pearl Nickel Plated for long-term corrosion resistance, while the deep Black-Pearl tone along with the high intensity Blue LEDs reinforce its powerful aesthetics.
|

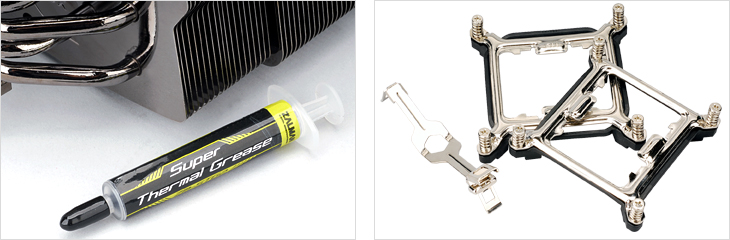

| High Performance Super Thermal Grease ZM-STG2
The included all new high performance thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS10X Extreme for intensified cooling performance.
|
Versatile Compatibility
CNPS10X Extreme accommodates a broad range of sockets.
Intel LGA1156/1366/775, AMD AM3/AM2+/AM2/754/939/940
|

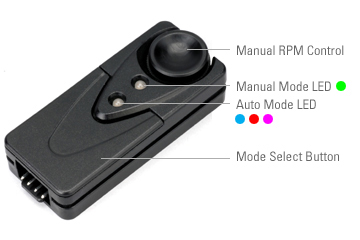

PWM Mate Features
 |
 |
Various mode change (Auto 3steps Mode) |
 |
Default Setting: Auto-Low Manual |
 |
Installable on the systems exterior or other preferred location. |
|
| Mode |
 |
LED Color |
|
Fan Speed / Noise Level |
|
Manual RPM Control |
|
| Auto |
Low(Default Setting) |
Blue |
1000 - 1500rpm / 20 - 28dBA |
Disabled |
| Mid |
Purple |
1000 - 1950rpm / 20 - 35dBA |
| High |
Red |
1000 - 2150rpm / 20 - 39dBA |
| Manual |
Green |
1000 - 2150rpm / 20 - 39dBA
(User Defined) |
Enabled |
|
|
 |
 |

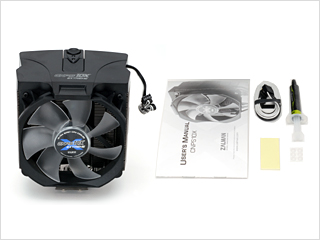

 Common Components |
- CNPS10X Extreme & PWM Mate
- Thermal Grease (ZM-STG2)
- Double-Sided Tape
- Extension Cable
- Washers
- Users Manual |
|

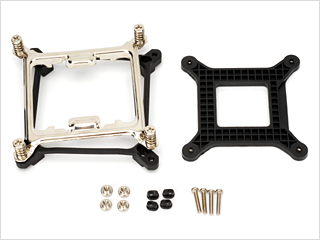

| Components for Intel Socket 1156/775 |
- Socket 1156/775 Clip
- Socket 1156/775 Clip Support
- Socket 775 Backplate
- Socket 1156/775 Bolt Guides
- Socket 1156 Nuts
- Socket 1156/775 Bolts (Silver) |
|
 |
 |

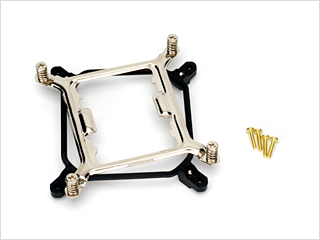

| Components for Intel Socket 1366 |
- Socket 1366 Clip
- Socket 1366 Clip Support
- Socket 1366 Bolts (Gold) |
|
Component for AMD
Socket AM3/AM2+/AM2/754/939/940 |
| - AMD Clip |
|
|
|
|
|
Socket |
|
CPU |
|
CPU Compatibility |
|
| Intel |
1156 |
- |
Supports all speeds |
| 1366 |
Core i7 |
Supports all speeds |
| 775 |
Celeron D |
Supports all speeds |
| Pentium 4 |
| Pentium D |
| Pentium Dual Core |
| Core 2 Extreme |
| Core 2 Duo |
| Core 2 Quad |
| AMD |
AM3 |
Phenom II |
Supports all speeds |
| AM2+ |
Sempron |
Supports all speeds |
| Athlon 64 |
| Athlon 64 X2 Dual Core |
| Athlon 64 FX |
| Phenom |
| Phenom II |
| AM2 |
Sempron |
Supports all speeds |
| Athlon 64 |
| Athlon 64 X2 Dual Core |
| Athlon 64 FX |
| 754 |
Sempron |
Supports all speeds |
| Athlon 64 |
| 939 |
Athlon 64 |
Supports all speeds |
| Athlon X2 Dual Core |
| Athlon 64 FX |
| Opteron |
| Dual Core Opteron |
| 940 |
Athlon 64 FX |
Supports all speeds |
| Opteron |
| Dual Core Opteron |
|
