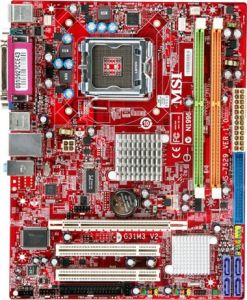

MSI G31M3-L V2 mATX Motherboard - VGA/PCIE16X/DDR2/PATA/SATA/Lan/Audio

Features

The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.

Key components status hardware monitor.
Monitor the CPU status.
Optimize System status define.
Auto speed up with system loading change.



Live Update 4 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.



Specifications

CPU Intel Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA775 package. We recommend using the following CPUs: 1. E8190 ~ E8600 2. E7200 ~ E7300 3. E6300 ~ E6850 4. E4300 ~ E4700 5. E2100 ~ E2200 6. E1200 ~ E1600 7. 420 ~ 460 Please refer to CPU Support for compatible CPU; the above description is for reference only.

Chipset   Intel G31 Chipset - Supports FSB 800/1066/1333MHz. - Supports dual channel, DDR2 667/800. Intel ICH7 Chipset - Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports. - 4 SATA ports with transfer rate up to 3Gb/s. - PCI Master v2.3, I/O APIC.

Main Memory Supports two unbuffered DIMM of 1.8 Volt DDR2 SDRAM Supports up to 4GB memory size. Supports dual channel DDR2 memory architecture. Supports DDR2 667/800 memory interface. Due to the limitation of G31 chipsets, dual channel support must meet some requirement in the specification of memory modules. please refer to Test Reports for detailed description.

Slots 1 x PCI Express x16 slot (PCI Express Bus SPEC V1.0a compliant) 2 x PCI slots (support 3.3V/ 5V PCI bus Interface)

On-Board IDE/SATA   One Ultra DMA 66/100 IDE controller integrated in ICH7 - Supports PIO, Bus Master operation modes. - Can connect up to two Ultra ATA drives. SATA controller integrated in ICH7 - Up to 3Gb/s transfer speed. - Supports four SATA ports.

Audio   Chip integrated by Realtek ALC888 - Flexible 7.1-channel audio with jack sensing - Compliant with Azalia 1.0 Spec - Meet Microsoft Vista Premium SPEC

LAN   Supports 10/ 100 Fast Ethernet by Realtek 8101E

TPM (Trusted Platform Module) The Trusted Platform Module Solution

On-Board Pinheaders/ Connectors - ATX 24-pin power connector - ATX 4-pin 12V CPU power connector - CPU / Systemx2FAN connectors - CD-in connector - Front panel audio connector - Front panel connector - Chassis intrusion switch connector -2 x USB 2.0 connector support additional4 ports - 1 x Floppy disk drive connector - 4 x Serial ATA II connectors - 1 x ATA133IDE connector - Clear CMOS jumper - 1 x Serial port connector - 1 x SPDIF-out header - 1 xSPI Debuggingconnector - 1 x TPM module header (optional)   MSI Reminds You... The floppy disk cable will be optional.

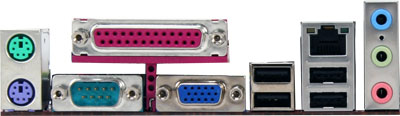

Back Panel I/O Ports   - 1 x PS/2 keyboard - 1 x PS/2 mouse - 1 x Parallel port - 1 x Serial port (COM 1) - 1 x Graphics Card port -  1 x3 in 1 audio jack - 4 x USB 2.0 ports - 1 x RJ45 LAN jack

BIOS The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically. The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

Dimension 24.4cm(L) x 19.3cm(W) Micro-ATX Form Factor Mounting 6 mounting holes.
