Intel DQ45CB Motherboard - Retail
  • LGA775, Q45+ICH10D, 1333FSB, 4x DDR2-800, 1x PCI-Ex16 v2.0, 5x SATA-II, 1x eSATA, RAID, GigLAN, 6-Chl, VGA, mATX

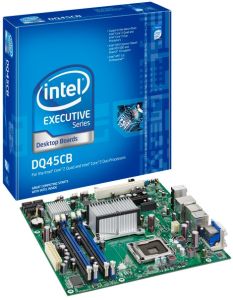

IMG 1 of 1
No Longer Available
Part Number:
119975
(?) Brand:
Intel Web Site
Manuf No:
DQ45CB
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
DQ45CB

Intel Desktop Board DQ45CB supporting Intel vPRO Technology is designed to bring users unprecedented ability to remotely maintain, manage, and protect their business PCs. Pair this board with any 45nm Intel Core 2 Quad or Intel Core 2 Duo processor to get the latest performance in an energy-efficient package. Enjoy new features such as dual-DVI video output and eSATA port on back-panel, as well as value add software enhancing security and remote management options of your system.

Intel Desktop Board DQ45CB supports Intel AMT 5.0 Professional, Intel Trusted Platform Module, and is Microsoft Windows Vista* Premium WHQL certified.

Features and benefits

Form Factor MicroATX (9.60 inches by 9.60 inches [243.84 millimeters by 243.84 millimeters])
Processor

Click View supported processors for the most current list of compatible processors.

At product launch, this desktop board supports:

  • Support for an Intel Core2 Quad processor in an LGA775 socket
  • Support for an Intel Core2 Duo processor in an LGA775 socket
  • Support for an Intel Pentium processor in an LGA775 socket
  • Support for an Intel Celeron processor in an LGA775 socket
  • Support for an Intel Celeron processor 400 sequence in an LGA775 socket
Memory
  • Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) socket
  • Support for DDR2 800/667 MHz DIMMs
  • Support for up to 8 GB  of system memory
Audio Intel High Definition Audio subsystem in the following configuration:
5.1 audio subsystem using the ADI AD1882 audio codec
Video Intel Graphics Media Accelerator 4500 onboard graphics subsystem with integrated DVI-I and DVI-D graphics output
LAN Support Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel 82567LM Gigabit Ethernet Controller
Peripheral Interfaces
  • Up to 12 USB 2.0 ports
  • Six Serial ATA 3.0 Gb/s ports, including 1 eSATA back port with RAID 0, 1, 5, 10 support
  • Two IEEE-1394a ports (1 external port, 1 internal header)
  • One serial port via header
Expansion Capabilities
  • One PCI Conventional* bus add-in card connector
  • Two PCI Express* x1 bus add-in card connectors
  • One PCI Express* 2.0 x 16 bus add-in card connector


Related products

Processors
  • Intel Core2 Quad processor
  • Intel Core2 Duo processor
  • Intel Pentium processor
  • Intel Celeron processor
  • Intel Celeron processor 400 Sequence
Chipsets
  • Intel Q45 Express Chipset




No additional files, specification sheets, guides or documentation found for product.

Warranty: 12-month Manufacturer

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
