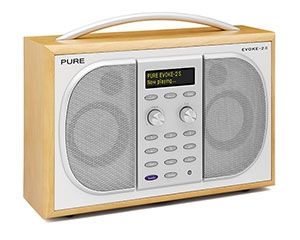

Pure Evoke-2S Digital Stereo Radio
Full DAB+ Band III, and FM reception. Supports FM RDS and RadioText.Sleep.220-240V AC power socket (power cable supplied

• Connect an iPod/MP3 player or portable CD.
• ChargePAK Ready optional fit-and-forget ChargePAK provides around 20 hours of portable DAB+ listening
• OLED display for superior contrast and readability.
• Light sensor for automatic display brightness adjustment.
• Bass and treble control.
• ReVu pause and rewind live DAB+ radio for up to 15 minutes.
• Intellitext browse stored scrolling text.
• textSCAN pause and control scrolling text.
• Dedicated countdown kitchen timer button.
• Easy to use tone or radio alarm (operates on mains power only) and sleep timer.
• Save up to 100 station presets (50 DAB+ & 50 FM).
• Add new features as they become available via USB.
• 30W RMS of class-leading audio.

---



Specifications: Stereo digital radio with full DAB+ Band III and FM reception. ETSI EN 300 401 compliant and capable of decoding all DAB+ transmission modes 1-4 up to and including 192 kbps. Supports FM RDS and RadioText.

Frequency ranges: DAB+ Band III 174240 MHz, FM 87.5108 MHz.

Speakers: Two mid-range 3" drive units + two " dome tweeters.

Audio power output: 15 RMS per channel; 30W RMS total.

Input connectors: 220-240V AC power socket (power cable supplied), ChargePAK connector, 3.5mm Line in for auxiliary devices. USB (mini B-type) connector for software upgrades.

Output connectors: 3.5mm headphone socket, 3.5mm line out (analogue).

Controls: Alarm/timer, Intellitext, ReVu, Volume, Tune, 5 dedicated one-touch presets, 1 combined preset, Tone, Info, Menu, Standby, Source and mains power switch on rear.

Alarms & timers: alarm with station or tone setting. Countdown timer for kitchen use. Sleep timer.

Display: High contrast yellow-on-black graphical 128 x 22 auto-dimming OLED display.

Mains power supply: 220-240V AC internal supply.

Battery power: Optional ChargePAK E1 gives you up to 20 hours battery life.

Power consumption: In standby 0.95W (industry average 2.64W); in operation 3.2W (industry average 5.49W).

Approvals: CE marked. Compliant with the EMC and Low Voltage Directives (2004/108/EC and 2006/95/EC). Australian C-Tick N1600 & Electrical Safety.

Dimensions (mm): 210 high x 290 wide x 120 deep.

Aerial: Removable telescopic aerial supplied.
