Foxconn Flaming Blade Motherboard
LG1366, Intel X58, ICH10R, QPI 6.4GT/s, 3xDDR3-1800, 2xPCI-Ex16v2.0, 6xSATA-II, 2xeSATA, 1xATA-133, RAID, 1xGigLAN, 8Chl-HD, ATX

Cart
Quantity:
Add Foxconn Flaming Blade Motherboard
to your wishlist
Click here to write a review on Foxconn Flaming Blade Motherboard

Product May Vary From Image
[Large image available]

Our Price:
$232.85
RRP:$269.00
You Save:$36.15

Techbuy Part No:121167
Usually Ships: 1-3 Days Details
Brand:Foxconn Web Site
Manuf No:FLAMING-BLADE
 FLAMINGBLADE
Shipping Weight:2 KG How Much?
Date Added:16/7/2009
Rating: Not Rated
Currency:AUD Convert

Product Description

FlamingBlade
Foxconn Quantum Force aims to deliver high performance computing, connectivity and digital enterainment. With more options for accessing and managing other devices, enhanced reliability features and new PC multimedia technologies. Bloodrage is the ideal choice for extreme performance or quantum force. This motherboard is based on the Intel X58 chipset - providing ultimate performance for today's desktop computers. TheFlamingBlade supports the latest industry technologies - Intel Bloomfield series processors and DDR3 1800MHz(via overclocking) memory. 100% SOLID Capacitor design, Ferrite Choke power delivery and Cool Pipe design help to maximize performance and increase reliability. And at the same time, provided the digital audio outputs via S/PDIF OUT and 7.1 HD Audio.guaratees the highest quality fidelity for games and movies.

i7 1.JPGi7 3.JPG
Support Intel Corei7 processors
Supports latest Intel Core i7 processors. QuickPath Interconnect technology for more bandwidth between CPU & system. Intel Turbo Boost Technology for improved single-threaded performance.

X58 chipset.JPG

Intel X58 & ICH10R Chipset
The Intel X58 Express Chipsets support the latest Intel Core i7 processors with FSB QPI 6.4GT/S, including 45nm processors, with its record breaking performance and greater energy efficiency. Intel X58 chipset, with optimized system memory capabilities, chipset over-speed protection removed for maximum overclocking, providing faster boot and application load times and additional power savings. Intel X58 chipset also offer options for DDR3 memory support, providing scalable options for users wanting to take advantage of higher memory performance with less power consumption to run next generation applications such as high-definition video and 3D visualization
Note:Please check our CPU compatibility table for full details
Triple Channel DDR3 1800


Supports 3 channel DDR3 memory up to 1800(oc)MHz for unprecedented memory performance. Install up to 12GB of memory with O.C. orientation 3 DIMM sockets onboard.


ATI CrossFireX & NVIDIA SLIsupport
ATI CrossFireX technology harnesses the power of up to 4 ATI graphics cards simultaneously to deliver ultra-smooth 3D graphics.NVIDIA 3-way SLI enables up to 2.8x performance gain over a single GPU and supports full HD gaming.

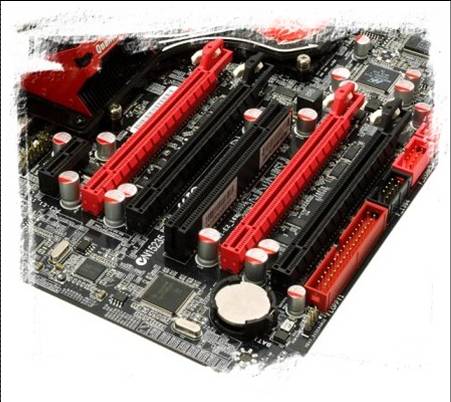

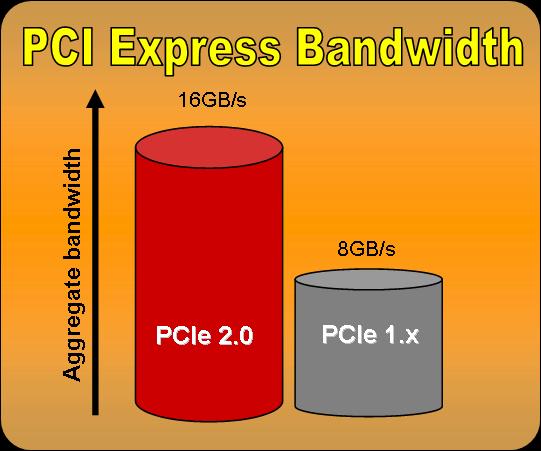

PCIe Generation 2.0 support
PCI Express Gen2.0 technology doubles the available aggregate bandwidth between PCIe Generation 2 cards and the motherboard. This means a Gen2.0 16-lane (x16) link can provide up to 16GB/s of bandwidth, 8GB/s in each direction. PCIe Gen2.0 is backwards compatible, and so existing PCIe Gen1 cards can be plugged into Gen2.0 slots. PCI Express Gen2.0 technology doubles the available aggregate bandwidth between PCIe Generation 2 cards and the motherboard. This means a Gen2.0 16-lane (x16) link can provide up to 16GB/s of bandwidth, 8GB/s in each direction. PCIe Gen2.0 is backwards compatible, and so existing PCIe Gen1 cards can be plugged into Gen2.0 slots.
pcie.jpgpcie 2.jpgpcie3.jpg

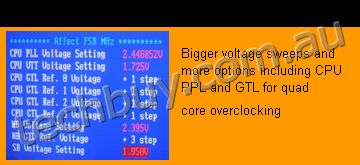

Quantum BIOS
Quantum BIOS provides new features and enhancements for overclocking including context-driven menus, more detailed memory configurations and enhanced quad-core overclocking support







6phaseHybrid PWM
In addition to the traditional analog PWM, digital phase timing provides accurate phase interleaving standing up to the demands of enthusiasts and overclockers. This finely-tuned digital power management system operates with better power efficiency, a faster and more stable response to changes in power consumption, and higher output current capability to support extreme overclocking.

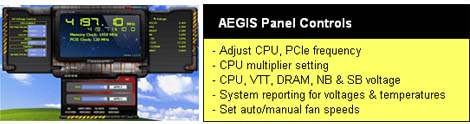

AEGIS Panel
AEGIS Panel is a Windows based innovation tool to provide monitoring system information about fan speeds, temperatures, voltages CPU Clock, etc. It also quick and easy overclocking options, with a range of frequency and voltage adjustments.

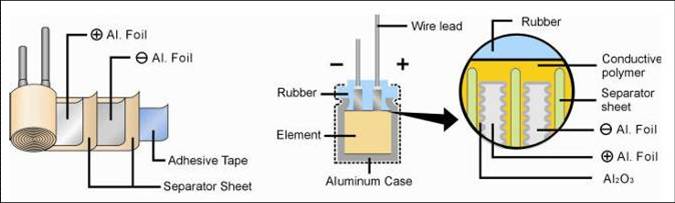

100% SOLID Capacitor & Ferrite Choke Design
Foxconns 100% SOLID Capacitor design uses only Japanese solid capacitors of the highest quality.

bloodrage solid.jpg

Ferrite Choke
Ferrite Choke design holds energy at a higher frequency with less power loss, providing more stability and efficiency for your system.







PCB Voltage Sensors
Handy on-PCB sensors allow users to quickly take voltage readings for the CPU, memory and northbridge.





Easily reset CMOS on the workbench, when recovering from failed overclock attempt.

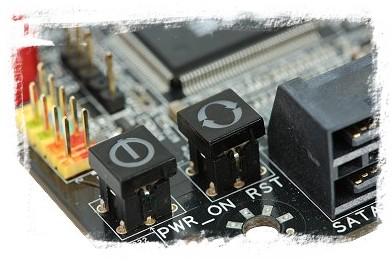

On/off/reset buttons are located directly on the motherboard PCB, so you can easily start and reset your system whilst testing it on the workbench.
ON OFF.JPG




2-digit LED readout displays hardware status and enables quick error diagnosis.

* The specification and pictures are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* All trademarks and logos are the properties of their respective holders.

Processor: Supports the newest Intel CoreTM i7 and CoreTM i7 Extreme (Bloomfield) processors, Socket T (LGA1366)
Chipset: Intel X58 + ICH10R Chipset
Front Side Bus: QPI 6.4GT/S
Memory: Triple DDR3 1800(**oc)/1600/1333x 3 DIMMs, Max.12GB
VGA on Die: Discreted
Expansion Slots: 2* PCIe2.0 x16,1* PCIe2.0 x1, 1* PCIe2.0 x4, 2* PCI
IDE: 1* ATA 133
Serial ATA(SATA)/RAID: 6* SATAII + 2* eSATA w / RAID 0, 1, 5, 10; Intel Matrix storage technology
Audio: 7.1 channel HDA by Realtek ALC888
LAN: Gigabit LAN by Realtek RTL8111C
IEEE1394: N/A
Back Panel I/O Ports: 1 x PS/2 keyboard port
1 x S/PDIF Fiber port
2 x eSATA ports
1 x Audio jack supports 6 jacks
2 x RJ45 LAN ports
8 x USB 2.0 ports
Internal I/O Connectors: 1 x ATX 24-Pin power connector
1 x 8-Pin ATX 12V power connector
1 x 4-Pin CPU Fan connector
1 x 3-Pin System Fan connector
1 x 3-Pin NB Fan connector
2 x Onboard On/Off/CCMOS/Force Reset buttons
1 x IDE connector
1 x Onboard power_LED
2 x USB 2.0 connectors support additional 4 ports
1 x Front Panel header
6 x SATAII connectors
1 x Floppy connector
1 x Front Audio Header
1 x Speaker header
1 x CD-in connector
BIOS Features: Dual 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Support CD: Drivers, Adobe Reader, Norton
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Special Features: ** Achieved by overclocking
* Quantum Force segment, based on Intel X58 chipset
* Supports the newest Intel CoreTM i7 and CoreTM i7 Extreme (Bloomfield) processors, Socket T (LGA1366)
* 2* PCIe x16 Gen 2.0 with ATI CrossFireX & NVIDIA SLI support
* Triple DDR3 1800(**oc)/1600/1333x 3 DIMMs, Max.12GB
* Quantum BIOS
* 100% SOLID Capacitor design and Ferrite Choke
Form Factor: ATX (12" x 9.6")


Product Warranty


3-year Manufact.
