ASUS P5P43TD-PRO Motherboard

for PC hardware - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

HOME / Back -> Motherboards -> Intel Socket 775 -> ASUS

ASUS P5P43TD-PRO Motherboard
LGA775, Intel P43, ICH10R, 1600FSB, 4xDDR3-1600, 1xPCI-Ex16 v2.0, 6xSATA-II, 1xeSATA, 1xATA-133, RAID, 1xGigLAN, 8Chl-HD, Firewire, ATX

No Longer Available

Part Number:

121591

(?) Brand:

ASUS Web Site

Manuf No:

P5P43TD-PRO
P5P43TDPRO

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

P5P43TDPRO, P5P43TD-PRO, AU45240

Overview

LGA775 Intel 45nm Processor Ready

This motherboard supports the latest Intel 45nm CPU which introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power management capabilities for new levels of energy efficiency.

Intel Core2 Extreme / Core2 Quad / Core2 Duo CPU support

This motherboard supports Intel LGA775 Core 2 Extreme / Core 2 Quad/ Core 2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1600 (O.C.)/1333/ 1066/ 800 MHz FSB. This motherboard also supports Intel CPUs in the 45nm manufacturing process.

Dual channel DDR3 1600 O.C.

DDR3 1600(O.C.) memory provides great performance for 3D graphics and other memory demanding applications on next generation memory technology.

PCI Express Architecture

PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 2 times higher than that of AGP 8X interface, PCI Express x8 bus performs much better in applications such as 3D gaming.

SATA 3Gb/s

This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification.

IEEE 1394a interface

IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.

High Definition Audio

Enjoy high-quality sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality audio output, jack-detect feature automatically.

S/PDIF-out on Back I/O Port

This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.

ASUS Express Gate

Instant Internet Access without Entering Windows!
Surf the Internet in 5-second-boot time without entering Windows. With a fast bootup speed of only 5 seconds, the ASUS Express Gate offers an optional Linux OS bootup that allows you to enjoy instant access to commonly used functions like accessing the Internet, VoIP, and Web emailing without entering the OS. * The actual boot time is subject to hardware configurations and product models

Turbo Key

Touch-n-Boost!
ASUS Turbo Key allows the user to turn the PC power button into a physical overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!

EPU

The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage for the CPU, VGA card, hard drives, and CPU/chassis fans- helping save power and money!

AI NET2

Diagnose LAN connection before entering OS!
AI NET2 remotely detects cable connection the second you turn on the system, and any faulty connections are reported back up to 100 meters at 1 meter accuracy.

Gigabit Lan

This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.

ASUS Q-Fan

ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.

C.P.R.(CPU Parameter Recall)

When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.

CrashFree BIOS 3

The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

EZ Flash 2

EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

MyLogo 2

You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

GreenASUS

The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.

Specifications

CPU	Intel Socket 775 Core2 Quad/Core2 Extreme/Core2 Duo/Pentium dual-core/Celeron dual-core Support Intel 45nm Multi-Core CPU
Chipset	Intel P43 / Intel ICH10R
Front Side Bus	1600(O.C)/1333/1066/800 MHz
Memory	4 x240-pin DIMM, Max. 16 GB, DDR3 1600(O.C.)/1333/1066/800 Non-ECC,Un-buffered Memory Dual Channel memory architecture
Expansion Slots	1 x PCIe x16 2 x PCIe x1 3 x PCI
Storage	Intel ICH10R controller 6 xSATA 3 Gb/s ports Support RAID 0,1,0+1,5 JMicron JMB361 PATA and SATA controller 1 xUltraDMA 133/100/66 1 xExternal SATA
LAN	L1E Gb LAN
Audio	ALC887 High Definition Audio 8 -Channel CODEC Audio Jack-detect/Multi-Streaming Technology Support S/PDIF output
USB	12 USB 2.0 ports
Special Features	Turbo Key EPU-4 Engine ASUS Express Gate ASUS EZ Flash2 ASUS Q-Fan ASUS MyLogo2

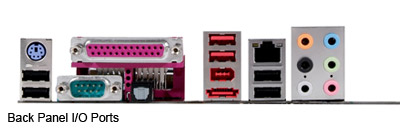

Back Panel I/O Ports	1 x Parallel 1 x External SATA 1 x S/PDIF Out (Optical) 1 x IEEE 1394a 1 x LAN(RJ45) port 1 x COM port 8 -Channel Audio I/O 1 x PS/2 KB/MS
Internal I/O Connectors	3 x USB connectors support additional 6 USB 2.0 ports 1 x IDE connector 6 x SATA connectors 1 x S/PDIF output connector 1 x System Panel connector 1 x Front Panel Audio connector 1 x CPU/ 1 x Chassis/1 x Power FAN connectors 1 x CD audio in connector 1 x 24-pin EPS12V Power connector 1 x 4-pin ATX 12V Power connector
BIOS	8 Mb Flash ROM AMI BIOS, Special H/W write protection, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a
Manageability	WOL by PME,WOR by PME,WOR by Ring
Accessories	User's manual 1 x I/O Shield 1 x UltraDMA 133/100/66 cable 2 x SATA cable
Support Disc	Drivers ASUS PC Probe II ASUS LiveUpdate Utility Bundle Software
Form Factor	ATX Form Factor 12 inch x 8.8 inch ( 30.5 cm x 22.4 cm )
