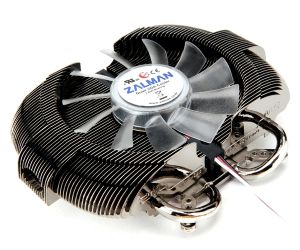

Zalman VF950 Video Card Cooler - Fansink, 80mm Blue LED Fan

IMG 1 of 1
No Longer Available
Part Number:
121849
(?) Brand:
Zalman Web Site
Manuf No:
VF950
Shipping Weight:
0.75 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
VF950
Features

The product is equipped with Zalmans patented VFP (Variable Fin Profile) technology.
Fan installed inside the heatsink maximizes the cooling efficiency and the products maximized dissipation surface area provides excellent performance.
Use of one high performance WBT(W Bending Technology) heatpipe maximizes heat transfer.
Heatsink weight has been minimized with the use of thin aluminum fins (0.3mm), which eliminates excessive force on the VGA card.
80mm Blue LED Fan for excellent performance and great aesthetics.
Cools not only the VGA chipset and VGA RAM, but all other VGA components as well.
Newly improved installation structure provides easy installation and broad compatibility.
Does not generate noise or vibration in Silent Mode.


Specifications

Dimensions 126(L) x 80(W) x 30(H) mm
Weight 190g
Base Material Dissipation Fins : Pure Aluminum
Base : Pure Copper, Heatpipe : Pure Copper
Dimensions 80(L) x 80(W) x 15(H) mm
Bearing Type 2 Ball-Bearing
Speed Silent Mode 1,400rpm 10 % Normal Mode 2,500rpm 10 %
Noise Level Silent Mode 19.0dBA 10 % Normal Mode 29.0dBA 10 %

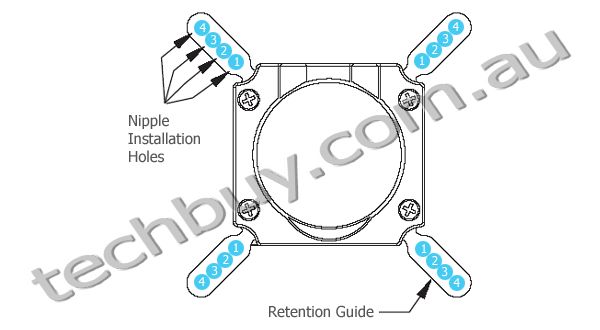

Nipple Installation Holes VGA Card
  NVIDIA GeForce4 TI 4 series
NVIDIA GeForce FX 5700(Ultra) series
NVIDIA GeForce FX 5800 series
NVIDIA GeForce 6600 series (6600 AGP series exception)

  NVIDIA GeForce 6600 series (6600 AGP series exception)

  NVIDIA GeForce FX 5900 series
NVIDIA GeForce FX 5950 series

  ATI Radeon HD 4850 series
ATI Radeon HD 4830 series
ATI Radeon HD 3850 series
ATI Radeon HD 2600XT (DDR4) series
ATI Radeon X1800XL series
NVIDIA GeForce 9800GT series
NVIDIA GeForce 9600GT series
NVIDIA GeForce 9600GSO series
NVIDIA GeForce 8800GT series
NVIDIA GeForce 8800GS series
NVIDIA GeForce 8600GTS series
NVIDIA GeForce 8600GT series
NVIDIA GeForce 7950 series(7950GX2 exception)
NVIDIA GeForce 7900 series
NVIDIA GeForce 7800 series(7800GS exception)
NVIDIA GeForce 7600 series
NVIDIA GeForce 6800 series



Components

- One (1) VGA Cooler
- Eight (8) RAM Heatsinks
- Four (4) Nipples
- Four (4) Fixing Nuts
- One (1) PVC Washer Plate
- Eight (4) Rubber Rings
- Four (4) Springs
- One (1) Thermal Grease
- One (1) Fan Controller (FAN MATE 2)
- One (1) Cable for FAN MATE 2
- One (1) Double-Sided Tape (to attach FAN MATE 2)
- One (1) Users Manual

Cationary Notes

By installing this product on a VGA (Video Graphics Array) card, a PCI slot adjacent to the PCIe (or AGP) slot will become unusable.
The product cannot be installed on Matrox VGA cards, NVIDIA PCX 5 , NVIDIA GeForce 6600/7600/7900 AGP series
and ATI Radeon 9550/9600 series.
If the VGA card and/or its components interfere with the installation of this product, then stop the installation, refer to the list of compatible VGA cards at Zalmans website, and install this product with one of the compatible VGA cards.
The use of a fan positioned on the front side of the case and an exhaust fan positioned on the rear side of the case is recommended for enhancement of product performance.
Zalman is not responsible for any damages caused by overclocking.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12-month Manufacturer

Full manufacturers warranty details are available at the manufacturers (Zalman) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
