Seagate 500GB 7200rpm 2.5" SAS HDD w. 16MB Cache (ST9500430SS) Constellation

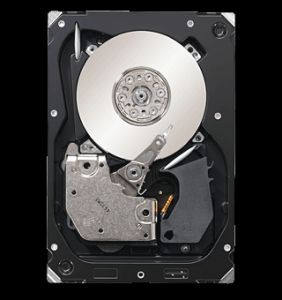

IMG 1 of 1
No Longer Available
Part Number:
122283
(?) Brand:
Seagate Web Site
Manuf No:
ST9500430SS
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ST9500430SS
Seagate Constellation enterprise hard drives offer the best combination of power savings, high capacity, high performance, rock-solid reliability and value for all enterprise storage application needs. Best suited for 24x7 business-critical multi-drive 2.5-inch server and storage system environments, Constellation enterprise drives feature a 3-Gb/s SATA or 6-Gb/s SAS interface and deliver best-in-class rotational vibration tolerance. Constellation hard drives offer maximum performance in high drive-count storage systems. Perpendicular recording technology increases capacity and reliability by storing data vertically instead of horizontally for maximum data density on the hard drive.

Key Features and Benefits:
  • Lowest operating power & enhanced power options with PowerChoice™ for even greater power savings during slow or idle periods
  • First 2.5", 15mm business critical drive on the market designed for enterprise reliability, vibration performance and high data integrity. Fits in more server & storage slots!
  • Fastest Tier 2/Nearline HDD on the market (SAS @ 6Gb/s speed). At a system level (with more drives) the performance will be >2x as compared to 3.5" HDD.
  • The highest capacity 2.5" enterprise drive with 500GB with both SAS and SATA interfaces. (160GB SATA also available for boot/entry server applications)
  • 6Gbps SAS 2.0 allows for easier integration, enhanced features and outstanding performance
  • Best performing nearline drive with Best-in-class Rotational Vibration
Best-Fit Applications:
  • High Density Nearline Storage
  • Internet Infrastructure, Backup & Restore, Medical Imaging, Nearline Storage, Disaster Recovery, Check Imaging, Video Editing
  • Blade Servers
    o Computation, Scientific Applications, Server Appliance, Web Content
  • Rack Servers
    o Graphics, Security, Firewalls, Email
  • Network Routers
  • Video Surveillance
  • 24x7 Availability
    o Kiosks, ATMs, Video Lottery Terminals, Video Serves, High Reliability Govt/Military
  • Workstations & Enthusiast PCs

SPECIFICATIONS

Model Number  ST9500430SS
Interface SAS 2.0 6.0Gb/s
Cache 16MB
Capacity 500 GB
Areal density (avg) 283 Gbits/inch2
Guaranteed Sectors 976,773,168

PHYSICAL

Height (max) 14.8 mm (0.583 inches)
Width (max) 70 mm (2.76 inches)
Length (max) 100.5 mm (3.957 inches)
Weight (typical) 227 grams (0.50 pounds)

PERFORMANCE

Spindle Speed 7,200 rpm
Average latency 4.16 msec
Random read seek time 8.0 msec
Random write seek time 8.4 msec

RELIABILITY

MTBF 1,200,000 hours
Annual Failure Rate 0.73%

POWER

12V start max current 1.03 amps
5V start max current  0.97 amps
