Zalman 500W ZM500-RS PSU - ATV 12V v2.3, EPS 12V, 120mm Fan, SLI Ready, 80 PLUS Bronze Certified
  • 4xSATA, 1xPCI-E 6+2-Pin, 1xPCI-E 6-Pin

IMG 1 of 4
No Longer Available
Part Number:
122971
(?) Brand:
Zalman Web Site
Manuf No:
ZM500-RS
ZM500RS
Shipping Weight:
3.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ZM500RS, ZM500-RS
Features


Resonant Switching Circuit Design
More advanced than two-forward switching, resonant switching minimizes switching power loss and dramatically reduces internal heat generation offering the highest level of reliability and durability.

80 PLUS  BRONZE Certified High Efficiency Design

This power supply is capable of reaching a maximum of 87% maximum efficiency (230VAC, Typical Load) through its high switching frequency and low power-loss circuitry design, and is 80 PLUS  BRONZE certified, guaranteeing higher efficiency compared to uncertified products.

80 PLUS  BRONZE is an energy efficiency certification program administered by Ecos Consulting of the U.S.A.

ATX12V v2.3

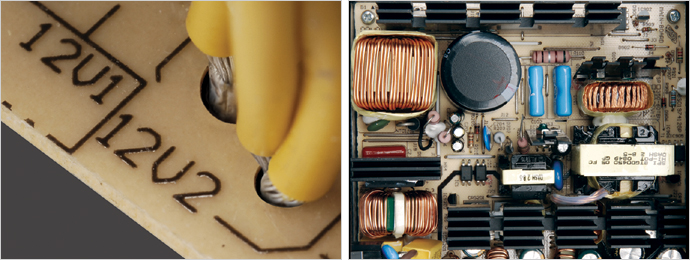

Implementing the latest standards, the ATX12V v2.3 specification offers the latest CPU, motherboard and graphic card compatibility. Dual Rail +12V DC Output
The +12C DC output is supplied by 2 rails for stable operation of core components. Supports Dual Graphic Card System

6-Pin and 6+2-Pin PCI-E connectors are provided for dual graphic card systems.

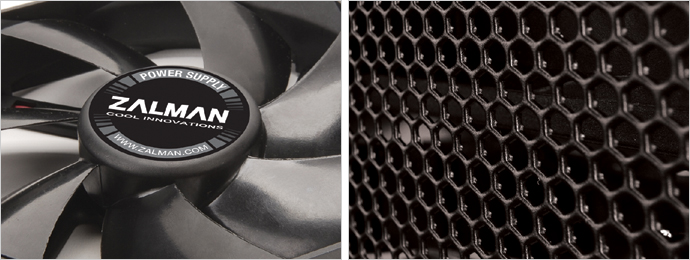

Ultra Quiet 120mm Fan
An ultra quiet Hydro Bearing cooling fan increases airflow while minimizing noise for a superb ultra quiet computing environment. Active PFC for Improved Power Factor & Reduced Harmonics
By implementing Active PFC (Power Factor Correction), the Power Factor (PF) is improved up to 99% while harmful harmonic frequencies are reduced to meet the Line Harmonic Distortion Requirement of IEC61000-3-2 Class D. ATX20+4 Pin Main Connector

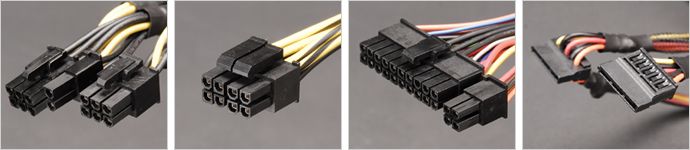

ATX20+4 pin main connector broadens the range of motherboard compatibility. Supports ATX12V CPU 4-Pin and EPS12V CPU 8-Pin
Two ATX12V CPU 22(4-Pin) power cables can be combined to form an EPS12V CPU 8-Pin power cable. Multiple Safety Features for the Highest Level of Safety
Over-Voltage Protection, Over-Current Protection, Short-Circuit Protection, Under-Voltage Protection, and Over-Temperature Protection features protect the system from potential electrical hazards. WEEE & RoHS Compliant
Complies with WEEE & RoHS environmental directives of the European Union.

- WEEE (Waste Electrical and Electronic Equipment)
- RoHS (Restriction of Hazardous Substances) International Safety and EMC Certifications

Specifications

Output Power Cable Specifications

Electrical & Physical Characteristics

AC Input Range Voltage 100VAC ~ 240VAC 10% DC Output
Frequency 50Hz~60Hz Output V. Output Load Rating Combined
Power
AC Input Current
(Rated)		 115VAC 8A Imin Imax Ipeak
230VAC 4A +3.3V 1A 24A 30A 130W 500W
PFC Type Active PFC +5V 1A 24A 30A
Power Factor 99% Maximum
 +12V1 1A 18A 22A 432W
Inrush Current Limit
(@ Cold start at 25C)		 115VAC 80A +12V2 1A 18A 22A
230VAC 60A -12V 0.0A 0.5A 21W
Efficiency 87% Maximum @230VAC, Typical load +5VSB 0.02A 3A 3.5A
DC Output
Voltage
Regulations		 Output V. Regulation Range At Full
Load		 Protection Features
+3.3VDC 5% +3.14V~+3.47V Over Voltage Protection(OVP)
+5VDC 5% +4.75V~+5.25V Over Current Protection(OCP)
+12V1DC 5% +11.4V~+12.6V Short Circuit Protection(SCP)
+12V2DC 5% +11.4V~+12.6V Over Temperature Protection(OTP)
-12VDC 10% -10.8V~-13.0V Under Voltage Protection(UVP)
+5VSB 5% +4.75V~+5.25V Ambient Temperature
DC Output
Ripple
& Noise		 Output V. Specification At Full
Load		 Operation 10C ~ +40C
+3.3VDC 100mV Storage -20C ~ +80C
+5VDC 100mV Ambient Humidily
+12V1DC 200mV Operation 5%RH ~ 95%RH
+12V2DC 200mV Storage 5%RH ~ 95%RH
-12VDC 200mV Dimensions
+5VSB 100mV 140(L) x 150(W) x 86(H) mm


Plugging the main power connector P1 into the motherboard while the product is connected to the AC power source may result in damage to the motherboard.
Make sure that the connectors are connected to their designated locations, and that the connectors are not oriented in the wrong direction when connecting the DC output connectors.

If the Power On light fails to light up when the main power button is pressed after completing the installation procedure, then some devices may be plugged in incorrectly or the motherboard may be faulty.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year RTB

Full manufacturers warranty details are available at the manufacturers (Zalman) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
