IMG 1 of 1
No Longer Available

Part Number:
123170
(?) Brand:
Manuf No:
ST9500530NS
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
ST9500530NS

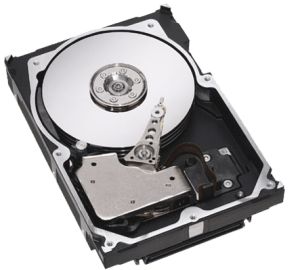

The Constellation 7200 hard drive enables manageable nearline storage solutions in 2.5" chassis either direct attach or in a tiered storage environment at the lowest power usage without compromising performance or reliability. Constellation 500GB SATA drives deliver cost-effective, eco-friendly nearline storage.

Key Features and Benefits

  • Lowest operating power & enhanced power options with PowerChoice for even greater power savings during slow or idle periods
  • First 2.5", 15mm business critical drive on the market designed for enterprise reliability, vibration performance and high data integrity. Fits in more server & storage slots!
  • Fastest Tier 2/Nearline HDD on the market (SAS @ 6Gb/s speed). At a system level (with more drives) the performance will be >2x as compared to 3.5" HDD.
  • The highest capacity 2.5" enterprise drive with 500GB with both SAS and SATA interfaces. (160GB SATA also available for boot/entry server applications)
  • 6Gbps SAS 2.0 allows for easier integration, enhanced features and outstanding performance
  • Government-grade self-encrypting drive (SED) on SAS models
  • Best performing nearline drive with Best-in-class Rotational Vibration

Best-Fit Applications

  • High Density Nearline Storage
    • Internet Infrastructure, Backup & Restore, Medical Imaging, Nearline Storage, Disaster Recovery, Check Imaging, Video Editing
  • Blade Servers
    • Computation, Scientific Applications, Server Appliance, Web Content
  • Rack Servers
    • Graphics, Security, Firewalls, Email
  • Network Routers
  • Video Surveillance
  • 24x7 Availability
    • Kiosks, ATMs, Video Lottery Terminals, Video Serves, High Reliability Govt/Military
  • Workstations & Enthusiast PCs
Specifications:

Specifications 500GB
Model Number ST9500530NS
Interface SATA 3.0Gb/s
Cache 32 MBytes
Capacity 500GB
Areal density (avg) 283 Gbits/inch2
Guaranteed Sectors 976,773,168
PHYSICAL
Height (max) 14.8 mm (0.583 inches)
Width (max) 70.0 mm (2.76 inches)
Length (max) 100.5 mm (3.957 inches)
Weight (typical) 196 grams (0.43 pounds)
PERFORMANCE
Spindle Speed 7,200 rpm
Average latency 4.16 msec
Random read seek time 8.0 msec
Random write seek time 8.4 msec
RELIABILITY
MTBF 1,200,000 hours
Annual Failure Rate 0.73%
POWER
12V start max current 0.87 amps
5V start max current 0.56 amps

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Seagate) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
