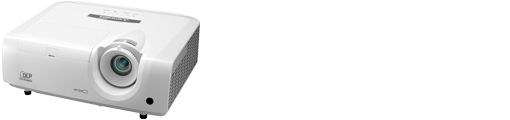

XD250U XGA Portable Projector
The XD250U from Mitsubishi Electric offers picture quality and features you wouldn't expect to find in a portable projector
Features
- Native XGA (1024 x768 pixel) resolution
- Up to 6000 hour lamp life
- High 2700 lumens brightness and 2000:1 contrast ratio
- 10 Watt speaker with "Audio Mix" feature
- Visual PA message system
- Network control and management with ProjectorView Global+ software
- BrilliantColorTM technology
- Auto Digital Keystone Correction
- Low operating cost - less than 1Watt in Standby mode
- Top loading lamp
- HDMI and Dual PC input
- Lightweight - only 3.3kgs
- Simplified menu operation
- Quiet 28dBA operation
With excellent functionality, stunning high-quality image reproduction and low running costs, the XD250U is ideal for use as a portable projection unit or in a permanent installation. Features include:
Excellent Brightness and Contrast - The XD250U delivers crisp, clear images thanks to its 2700 lumens brightness and 2000:1 contrast ratio.
Superb Colour Reproduction -A combination of BrilliantColorTM technology,optimised colour coding algorithmsandasix-segment colour wheel allow the XD250U todisplay images with rich, vibrant colours to keep your audience captivated.
Lamp Life up to an astonishing 6,000 hours - The XD250U is capable of running for up to 6,000 hours (in low mode), greatly lowering the cost of ownership.
Network Connectivity- The built-in RJ-45 Ethernet connection provides users withremotecontrol and management ofthe projector over a dedicated LAN system. The supplied ProjectorView Global+ software allows for the simultaneous control of multiple Mitsubishi projectors on the same network.
Visual PA system - Using the supplied projector control software,network administratorscan send messages in real-time to multiple Mitsubishi projectors connected to the LAN. Ideal for broadcasting important information school or campus-wide.
Built-in 10W speaker with "Audio Mix" feature- A high-volume 10W speaker is built in to the projector, eliminating the need for an external speaker in a classroom environment. The "Audio Mix" allows the user toadjust the volume of two separate audio outputs (e.g a wireless microphone and DVD player) independently, for greater audiocontrol during presentations.
Low Standby Power use- In keeping with Mitsubishi Electric's global green policies the XD250U uses less than 1W in standby mode, forbetter energy efficiencythat saves you moneywhile making the projector moreenvironmentally friendly.
HDMI and dual VGA inputs - Connect multiple devices to the projector at the same time - perfect for fixed installation units.
Filter free design - No filter to cleanmeans less projector downtime for maintenance.
Top Loading Lamp -For easy lamp replacement when the projector is suspended from the ceiling, as the projector does not need to be removed from its mount.
Quiet 28dBA* Operating Volume -Ensuring that your audience won't be distracted by a noisy projector.
Simplified On-screen menu system - For improved operation ease, the tool bar has only seven main menus, with onecustom menu for more specific operation.
*When running in low lamp mode
Specification Overview
| Model |
XD250U |
|
Display technology
|
0.55" 1-Chip DMD, 12deg.LVDS, DDP2230
|
|
Resolution
|
1024 x 768 (total 786,432 pixels)
|
|
Brightness (Maximum)
|
2700 ANSI lumens
|
|
Contrast Ratio
|
2000:1
|
| Colour Wheel |
6seg. Colour Wheel (R/G/B/W/Y/C) |
|
Picture Size
|
40" ~300"
|
| Zoom/Focus |
Manual Focus & Zoom Lens (Zoom Ratio 1.2:1) |
| Projection Lens |
f=18.4 ~22.0 mm, F=2.5-2.8, (3.3-4.0m@100") |
| Off set axis |
7.9:-1 , Hd=0.23m up @100" |
|
Source lamp
|
230W / 3,000 hours (Normal mode)*
190W / 6,000 hours (Low mode)*
|
|
Computer compatibility
|
Resolution ; 640 x480 (Expand) - 1024 x 768 (Real) - 1280 x 1024 (Compressed),Sync on green available
|
|
Video compatibility
|
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 60Hz), 1080i (1125i 50Hz), (1080i(1250i, 50Hz) is not available)
|
|
PC input terminals
|
RGB:mini D-sub 15 pin x 2; HDMI x 1; Audio: Stereo mini jack x 2(3.5mm)
|
|
Video input terminals
|
Composite RCA x 1, S-Video x 1; Audio: RCA L/R x 1
|
| Output terminals |
RGB: mini D-sub 15 x 1; Audio: Stereo mini jack x 1 (3.5mm)
|
|
Communication terminals
|
RS-232C: 8pin x 1; LAN(RJ-45) ; x 1 (Projector control)
|
| Scanning Rate |
[H] 15 - 80 kHz, [V] 50 - 85 Hz; [Dot clock] max.110 MHz |
| Audio Speaker |
10W Mono |
| Power consumption |
330W (less than 1W in Power Standby mode) |
| Power Supply |
AC100 ~ 240 V 10%, 50/60 Hz |
|
Fan noise
|
28dB(A) (Lamp low mode)
|
|
Dimensions (W x H x D)
|
325 x 118 x 251mm W x H x D (excluding all protrusions)
|
|
Weight
|
3.3kg
|
|
Optional lamp
|
VLT-XD280LP
|
|
Included accessories
|
AC Power Cable,VGA Cable, Remote Control (with batteries), User Manual CD, Safety Manual, Soft Carry Bag, Lens Cap
|
