Intel Core2 Extreme / Core2 Quad / Core2 Duo CPU support

This motherboard supports Intel LGA775 Core 2 Extreme / Core2 Quad/ Core2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/ 1066/ 800 MHz FSB. This motherboard also supports Intel CPUs in the 45nm manufacturing process.

Intel G41 Chipset

The Intel G41 Express Chipset is designed to support dual-channel DDR2 1066 (overclocking)/800/667 architecture, 1333/1066/800 Front Side Bus (FSB), PCIe 1.1, and mutli-core CPUs. It especially includes Intel Fast memory bandwidth and reduces the latency of the memory accesses.

DDR2 1066 (O.C.)/800/667 support

This motherboard supports DDR2 memory that features data transfer rates of 1066 (O.C.)/ 800/ 667 MHz providing great performance for 3D graphics and other memory-demanding applications.

Gigabit LAN solution

The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.

High Definition Audio

The onboard 8-channel ALC887 High Definition Audio CODEC enables high-quality audio that automatically detects peripherals plugged into the audio I/O jacks. ALC887 also supports the Windows Vista Premium OS.

Serial ATA 3Gb/s technology

This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.

ASUS EPU

The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage to save power and money.

Turbo Key

ASUS Turbo Key allows you to turn the PC power button into an overclocking button. After you easy setup, Turbo Key boosts performances without interrupting ongoing work or games, simply through pressing the button.

Express Gate
Express Gate is a unique OS built into the motherboard. Five seconds after bootup, you can instantly surf the Internet without entering the Windows OS.

  • ASUS Express Gate supports file uploading from SATA HDDs, ODDs, and USB drives. It supports file downloading to USB devices only.
  • The actrual boot time is subject to hardware configuration and product models.
  • Express Gate complies with the OpenGL standard. Refer to http://support.asus.com for Express Gate source codes.
EZ Flash 2

ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility.


ASUS CrashFree BIOS 3

ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to restore a corrupted BIOS file using the bundled support DVD or USB disk that contains the latest BIOS file.

ASUS AI NET2

ASUS AI NET2 remotely detects the cable connection immediately after turning on the system, and any faulty cable connections are reported back up to 100 meters at 1 meter accuracy.

ASUS Q-Fan

ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.

MyLogo 2

This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

C.P.R. (CPU Parameter Recall)

The BIOS C.P.R. feature automatically restores the CPU default settings when the system hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU parameters to their default settings.

GreenASUS

The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.

Specifications

CPU Intel Socket 775 Core2 Quad/Core2 Extreme/Core2 Duo/Pentium dual-core/Celeron dual-core/Celeron Processors
Support Intel 45nm Multi-Core CPU
Intel Hyper-Threading Technology ready
Support Enhanced Intel SpeedStep Technology (EIST)
*Refer to www.asus.com for Intel CPU support list
Chipset Intel G41 / ICH7
Front Side Bus 1333/1066/800 MHz
Memory 4 x DIMM, Max. 8 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Only the blue slots support memory overclocking to 1066 MHz.
**Due to chipset limitation, this motherboard only supports up to the total of 4 ranks (4 sides in total) of RAM at max.
***Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots 1 x PCIe x16
2 x PCIe x1
3 x PCI
Storage Southbridge
1 xUltraDMA 100/66/33
4 xSATA 3 Gb/s ports
LAN PCIE Gb LAN
Audio ALC887 8-Channel High-Definition Audio CODEC
USB 8 USB 2.0/1.1 ports (4 ports at mid-board, 4 ports at back panel)
ASUS Unique Features ASUS CrashFree BIOS 3
ASUS AI NET2
ASUS Q-Fan
ASUS EZ Flash 2
ASUS MyLogo 2
ASUS Turbo Key
ASUS Express Gate
ASUS EPU 4 Engine

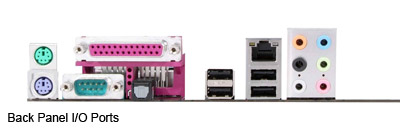

Back Panel I/O Ports 1 x Parallel port
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O
Internal I/O Connectors 2 x USB connectors support additional 4 USB ports
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Front panel audio connector
1 x S/PDIF Out connector
1 x 24-pin EATXPWR Power connector
1 x 4-pin ATX 12V Power connector
4 x Serial ATA connectors
1 x System Panel connector
1 x IDE connector
BIOS 8 Mb Flash ROM , AMI BIOS, PnP, DMI 2.0, Wfm2.0, ACPI 2.0, SMBIOS 2.5
Manageability WOL, PXE, RPL, WOR by Ring, PME Wake Up
Accessories User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
2 x SATA cable(s)
Support Disc Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
Form Factor ATX Form Factor
12 inch x 8.2 inch ( 30.5 cm x 20.8 cm )

No additional files, specification sheets, guides or documentation found for product.

No related products found.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
