Synology DX5 Network Storage Expansion - To Suit Synology DS509+
  • 5x3.5"SATA HDD, Hot-Swappable, RAID 0,1,5,5+S,6,JBOD, 1xeSATA (To Connect to DS509+)

IMG 1 of 0
No Longer Available
Part Number:
125250
(?) Brand:
Synology Web Site
Manuf No:
DX5
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
DX5, 9321886005554
DX5
Synology DX5 delivers an effortless solution for volume expansion and data backup for 2009 Synology Disk Station. It not only helps users smoothly expand the Synology Disk Station DS509+ capacity to 10 hard drives on the fly, but also can be used as a perfect backup solution.
  • Plug-n-use
  • Hot-swappable HDD design
  • Hibernation
  • Managed from Synology Disk Station Manager 2.2

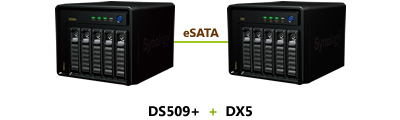

When running out of the hard drive capacity on Synology Disk Station DS509+, users can expand more storage with Synology DX5. By attaching it to Synology Disk Station DS509+, the plug-n-use connectivity and eSATA 3.0 Gb/sec definition allow users to expand volume from Synology Disk Station DS509+.

Synology DX5 delivers a perfect backup solution for Synology 2009 Disk Station, too. By attaching it to Synology 2009 Disk Station, the plug-n-use connectivity and eSATA 3.0 Gb/sec definition allows users to create an independent volume on the Synology Disk Station as a good backup target.

The HDD hibernation can be manually configured to take effect automatically when the system has been inactive for a period of time. This not only save energy but also extends the lifespan of the hard disk.

Synology DX5 can be directly managed from Synology Disk Station Manager 2.1. No firmware installation is needed.

Specifications

Hardware


Internal HDD: SATA(II) X 5 ( HDD not included)
eSATA port X 1
Hot Swappable HDD: Yes
Size (mm): 177 X 203 X 242
Weight: 4.75KG
System Fan: X 2(80x80mm)
Noise Level (fan-only): 26dB
Power Recovery: sync with the connected Disk Station
Power Consumption: 26W
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50 / 60Hz, Single Phase
Operating Temperature: 40 to 95F (5 to 35C)
Storage Temperature: 15 to 155F (-10 to 70C)
Relative Humidity: 5% to 95% RH
Maximum Operating Altitude: 10,000 feet

Certification




FCC: Class B
CE: Class B
BSMI: Class B

RAID Management




Volume Type: Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6
Upgrade from Basic to RAID 1 or RAID 5
Upgrade from RAID 1 to RAID 5
Upgrade from RAID 5 to RAID 5+Spare
Expand RAID 1/5/5+Spare/6 with Larger Hard Drives
Expand RAID 5/5+Spare/6 by Adding a Hard Drive on the Fly

Environment




RoHS Compliant

Package Content


Synology DX5 Main Unit
User's Guide
Assembling Kit
Power cord
eSATA cable







When running out of the hard drive capacity on Synology Disk Station DS509+, users can expand more storage with Synology DX5. By attaching it to Synology Disk Station DS509+, the plug-n-use connectivity and eSATA 3.0 Gb/sec definition allow users to expand volume from Synology Disk Station DS509+.

Synology DX5 delivers a perfect backup solution for Synology 2009 Disk Station, too. By attaching it to Synology 2009 Disk Station, the plug-n-use connectivity and eSATA 3.0 Gb/sec definition allows users to create an independent volume on the Synology Disk Station as a good backup target.


The HDD hibernation can be manually configured to take effect automatically when the system has been inactive for a period of time. This not only save energy but also extends the lifespan of the hard disk.

Synology DX5 can be directly managed from Synology Disk Station Manager 2.1. No firmware installation is needed.





No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Synology) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
