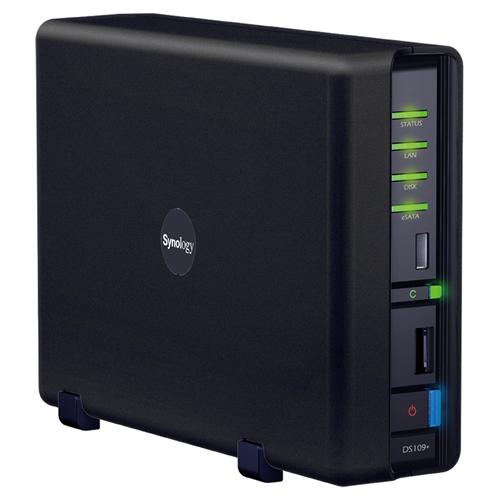

Synology DS-109+ Network Storage Device
  • 1x3.5"SATA HDD, Disk Station Manager 2.1, 3xUSB2.0, 1xeSATA, 1xGigLAN

IMG 1 of 0
No Longer Available
Part Number:
125255
(?) Brand:
Synology Web Site
Manuf No:
DS-109+
DS109+
Shipping Weight:
3.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
DS109+, DS-109+

Synology Disk Station DS109+ 2.12GHz (1.06 GHz x 2, 512MB RAM) offers PC server equivalent performance for efficient data sharing and backup. Its high performance coupled with sophisticated Synology Disk Station Manager 2.1 provides an ideal solution for cross platform sharing, secure server backup, Windows ADS integration, business mail server, and corporate surveillance.

  • High Speed
    50+ MB/Sec Windows Write
    51+ MB/Sec Windows Read
  • Windows + Mac + Linux
  • Power Saving (12W~21W)

Speedy 1-bay SATA NAS Server for Small-and-Medium Business Users

Product Code: DS-109+

Hardware Applications
CPU Clock Rate: 1.06GHz Surveillance Station 2
Memory: 512MB Photo Station 3
Internal HDD1: 3.5" SATA(II) X1 File Station 2
External HDD Interface: USB 2.0 port X3, eSATA port X1 Audio Station
Size: 160mm X 218mm X 63mm Web Station
Weight: 0.81kg PHP/MySQL
LAN: Gigabit X1 Download Station 2
Fan: X1(50mmX50mm) iTunes Server
Noise Level:2 25dB(A) Packages
Power Recovery Mail Station
AC Input Power Voltage: 100V to 240V SqueezeCenter
Power Frequency: 50Hz to 60Hz, Single Phase UPnP Multimedia Service Support
Max Capacity (Internal HDD): Up to 2TB (See All Supported HDD) Sony PS3, Microsoft Xbox360 (See All Supported DMA)
Max Supported IP Camera: 107 (See All Supported IP Cameras) Audio Format: AAC, FLAC, M4A, MP3, Ogg Vorbis, WAV, WMA, WMA VBR, WMA PRO, WMA Lossless
Operating Temperature: 5C to 35C (40F to 95F) Video Format: ASF, AVI, DAT, DivX, MP4, MPEG1, MPEG2, MPEG4, VOB, WMV, XviD
Storage Temperature: -10C to 70C (15F to 155F) Image Format: BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO
Relative Humidity: 5% to 95%RH Playlist Format: WPL, M3U
Maximum Operating Altitude: 10,000 feet iTunes Server Support
Power Consumption3 Audio Format: MP3, M4A, M4P, WAV4, AIF4
21W(Access); Playlist Format: M3U, WPL
12W(Hibernation) Audio Station Support
Certification USB Mode: (Audio) AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR (Playlist) M3U, WPL (Internet Radio) SHOUTcast, Radioio
FCC Class B, CE Class B, BSMI Class B Streaming Mode: (Audio) MP3 (Playlist) M3U, WPL
Networking Protocols Photo Station 3 Support
CIFS Video Format: ASF, AVI, MPEG1, MPEG4, WMV, XviD, DivX, FLV, DAT5, MP45, MPEG25, RM5, RMVB5, VOB5
AFP (3.1) Image Format: BMP, JPG (jpe, jpeg), GIF
FTP Management
NFS AJAX-based Management UI
Telnet/SSH Sub-folder Privileges Setting
Windows ADS Domain Integration User Home
ADS Support Applications privileges Setting
Domain users login via Samba/AFP/FTP BitTorrent Port Range Setup
Synology Data Replicator 3 for Domain Users BitTorrent DHT Support
Security CIFS Recycle Bin
"FTP over SSL (explicit)" or "FTP over TLS (explicit)" Download Station Bandwidth control
FTP Auto-Block Download Station Port Range Setup
Encrypted Network Backup Editable HTTP Error Page
Encrypted rsync Email Alert Message
HTTPS Connection Email Notification for New User
File System Package Management
EXT3 External HDD Hibernation (eSATA, USB)
FAT (External Disk Only) Scheduled Power On/Off
NTFS (External Disk Read Only) Firmware Upgrade
File Sharing FTP passive port range
Max User Accounts: 2,048 Hide-able Shared Folder
Max Groups: 256 Internal HDD Hibernation
Max Shared Folder: 256 Removable Default Shared Folder
Max Concurrent Connections(SAMBA, FTP, AFP): 256 System Temperature
Utilities Ez-Internet
Synology Assistant PPPoE
Synology Data Replicator 3 UPS Management (Over USB 2.0)
Synology Download Redirector User Quota
Add printer wizard Web-based Download Station 2
Backup Solutions
Network Backup
Local Backup
Desktop Backup (using Synology Data Replicator 3)
3rd-Party Backup Support
Supported Clients
Windows 2000 onward
Mac OS X 10.3 onward
Linux
Printer Support6
Max Printer #: 2
Supported Protocols: LPR, CIFS, AppleTalk
Languages
English, German, French, Italian, Spanish, Danish, Norwegian,
Swedish, Dutch, Russian, Korean, Polish, Traditional Chinese,
Simplified Chinese, Portuguese (Brazil), Portuguese (European), Turkish, and Hungarian
Environment
RoHS Compliant
Package Content
DS109+ Main Unit
Installation CD
Welcome Note
Assembling Kit
AC Power Adapter
AC Power Cord
2M RJ-45 LAN Cable
___
1.Hard drive not included.
2.FAN only. Measured at 2300~6200RPM, varied among models.






Management & Backup

When User Home is enabled, Synology Disk Station DS109+ automatically creates a home folder for every user account to provide each user with a private space to store data. This eliminates the need for the administrator to repeatedly create shared folders and user accounts.




Synology Network Backup allows users to back up files from one to another Synology Disk Station or any rsync-compatible server, the Local Backup allows backups to external hard drives via USB or eSATA, both providing flexible scheduling options.

Secure File Sharing



Synology File Station 2 simplifies file management with a web browser by introducing Windows-style user's interface and advanced features including drag-n-drop, sub-folder privilege settings, multiple files upload and download, and remote unzip features.

HTTPS provides a secure way for Internet access. When it's enabled, connections to the web-based Web Station, Photo Station 3, File Station 2, Surveillance Station 2, and Audio Station are all secured with SSL/TLS.



FTP service over SSL/TLS encryption ensures file sharing at a high security level. Unicode, write-only and sophisticated bandwidth management are also supported.

Office Applications

Synology Mail Station add-on provides a one step installation and enables Synology Disk Station to be a mail server that supports Outlook-like Web mail, SMTP, POP3, and IMAP.

Synology Surveillance Station 2 enables Synology Disk Station DS109+ to be an economical network video recording (NVR) solution. Over 130 popular IP cameras of varying brand names are supported.

Eco Friendly

Synology Disk Station is designed and developed perpetually with the concept of energy saving. Compared with average PC counterparts, Synology Disk Station DS109+ consumes a relatively low amount of power and hibernates when not in use. This not only helps to save energy but also extends the lifespan of the hard disk.

Additionally, all Synology products are produced with RoHS compliant parts and packed with recyclable packing materials. Synology recognizes its responsibility as a global citizen and is continually working to reduce the environmental impact of the products we create.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Synology) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
