System Architecture
|
|
|
|
|
Intel Dual Core 800/1200 MHz IOP348 I/O processor for RAID core and SAS microcode
|
|
|
|
256MB on-board DDR2-533 SDRAM with ECC protection (ARC-1680LP/1680i/1680x)
|
|
|
|
512MB on-board DDR2-533 SDRAM with ECC protection (ARC-/1680ix-8)
|
|
|
|
One 240-pin DDR2-533 DIMM socket with default 512MB of SDRAM with ECC protection, upgrade to 4GB (ARC-1680ix-12/16/24)
|
|
|
|
Support write-through or write-back cache
|
|
|
|
Support 4 to 24 internal and 4 to 8 external SAS ports
|
|
|
|
Multi-adapter support for large storage requirements
|
|
|
|
BIOS boot support for greater fault tolerance
|
|
|
|
BIOS PnP (plug and play) and BBS (BIOS boot specification) support
|
|
|
|
Support extreme performance RAID 6 function
|
|
|
|
NVRAM for RAID event & transaction log
|
|
|
|
Redundant flash image for adapter availability
|
|
|
|
Battery Backup Module ready (Option)
|
|
|
|
RoHS Compliant
|
|
|
|
|
|
RAID Features
|
|
|
|
RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD
|
|
|
|
Multiple RAID selection
|
|
|
|
Online array roaming
|
|
|
|
Online RAID level/stripe size migration
|
|
|
|
Online capacity expansion and RAID level migration simultaneously
|
|
|
|
Online volume set growth
|
|
|
|
Instant availability and background initialization
|
|
|
|
Automatic drive insertion / removal detection and rebuilding
|
|
|
|
Greater than 2TB per volume set (64-bit LBA support)
|
|
|
|
Disk scrubbing/ array verify scheduling for automatic repair of all configured RAID sets
|
|
|
|
Support spin down drives when not in use (MAID)
|
|
|
|
Support NTP protocol synchronize RAID controller clock over the on board Ethernet port
|
|
|
|
|
|
Disk Bus Interface
|
|
|
|
4/8/12/16/24 internal/SAS ports or 4/8 external SAS ports
|
|
|
|
Up to (128) SAS or SATA II drives using SAS expanders
|
|
|
|
Up to 3Gb/s per port
|
|
|
|
|
|
Host Connectivity
|
|
|
|
PCIe x8 lane width host interface
|
|
|
|
|
|
Monitors/Indicators
|
|
|
|
System status indication through global HDD activity/fault connector, individual fault connector, LCD/I2C connector and alarm buzzer
|
|
|
|
SMTP support for email notification
|
|
|
|
SNMP support for remote manager
|
|
|
|
Enclosure management (SES2,SMP and SGPIO) ready
|
|
|
|
|
|
RAID Management
|
|
|
|
Field-upgradeable firmware in flash ROM
|
|
|
|
In-Band Manager
|
|
|
|
Hot key "boot-up" McBIOS RAID manager via M/B BIOS
|
|
|
|
Web browser-based McRAID storage manager via ArcHttp proxy server utility
|
|
|
|
Support Command Line Interface (CLI)
|
|
|
|
API library for customer to write monitor utility
|
|
|
|
Single Admin Portal (SAP) monitor utility
|
|
|
|
Disk Stress Test (DST) utility for production
|
|
|
|
Out-of-Band Manager
|
|
|
|
Firmware-embedded web browser-based McRAID storage manager, SMTP manager and SNMP agent and Telnet function via Ethernet port
|
|
|
|
API library for customer to write monitor utility
|
|
|
|
Support Push Button and LCD display panel
|
|
|
|
|
|
Operating System
|
|
|
|
Windows 2000/XP/Server 2003/Vista
|
|
|
|
Linux
|
|
|
|
FreeBSD
|
|
|
|
Novell Netware 6.5
|
|
|
|
Solaris 10 x86/x86_64
|
|
|
|
SCO Unixware 7.x.x
|
|
|
|
Mac OS 10.4.x/10.5.x (EFI BIOS support)
|
|
|
|
|
|
|
Environmental/Physical
|
|
|
Mechanical
|
|
|
|
Dimension:
|
ARC-1680-i/1680LP/1680x: 62(H) x 168(L) mm
ARC-1680ix-8: 62(H) x 210(L) mm

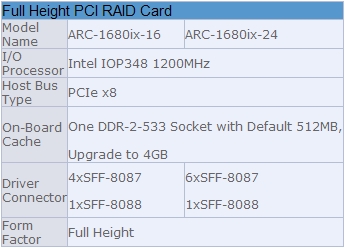

ARC-1680ix-12/16/24: 98.4(H) x 227.5(L) mm
|
|
|
|
|
|
|
|
Environmental Specifications
|
|
|
|
Operating:
|
Temperature:+5c to +50c
|
|
|
Humidity: 15-80%
|
|
|
non-condensing
|
|
|
|
Storage Temperature:
|
Temperature:-40c to 70c
|
|
|
Humidity: 5-90%
|
|
|
non-condensing
|
|
|
|
|
|
|
Electrical
|
|
|
|
Power Requirements:
|
1.10W max. +3.3V
|
|
|
10.92W max. +12V
|
|
