Zalman CNPS10X-E CPU Cooler - 2 Ball-bearing, Multi Socket (1156/1366/775/AM3/AM2+/AM2/754/939/940), w. low-noise 120mm Blue LED CPU Cooler, 5x U-Heatpipes

No Longer Available

Part Number:

125309

(?) Brand:

Zalman Web Site

Manuf No:

ZM-CNPS10X
ZMCNPS10X

Shipping Weight:

1.2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

ZMCNPS10X, ZM-CNPS10X

Socket

CPU

CPU Compatibility

Intel	1156	Core i5	Supports all speeds
		Core i7
	1366	Core i7	Supports all speeds
	775	Celeron D	Supports all speeds
		Pentium 4
		Pentium D
		Pentium Dual Core
		Core 2 Extreme
		Core 2 Duo
		Core 2 Quad
AMD	AM3	Phenom II	Supports all speeds
	AM2+	Sempron	Supports all speeds
		Athlon 64
		Athlon 64 X2 Dual Core
		Athlon 64 FX
		Phenom
		Phenom II
	AM2	Sempron	Supports all speeds
		Athlon 64
		Athlon 64 X2 Dual Core
		Athlon 64 FX
	754	Sempron	Supports all speeds
		Athlon 64
	939	Athlon 64	Supports all speeds
		Athlon X2 Dual Core
		Athlon 64 FX
		Opteron
		Dual Core Opteron
	940	Athlon 64 FX	Supports all speeds
		Opteron
		Dual Core Opteron

Dimensions	135(L) X 100(W) X 160(H)mm
Weight	920g
Materials	Fins: Aluminum / Base: Copper
Dissipation Area	8,544
Heatpipes	5 x U-shaped heatpipes
Fan	PWM 120mm Blue LED Fan
Fan RPM	1,000 - 2,150rpm 10 %
Noise	20.0 - 39.0dBA
Fan Bearing	2 Ball-Bearing
Nominal Fan Voltage	12V
Fan MTBF	Over 50,000 hrs
PWM Fan Control (PWM Mate)	PWM Fan Auto/Manual Control - PWM Duty Cycle(Fan Speed Control Range): 25 - 100% 5% - Connector Type: 4-Pin only

Color	Gray
Capacity	3.5g
Specific Gravity @23C	2.88
Thermal Resistance	8K/W
Thermal Conductivity	4.1W/mK
Temperature Stability	-40C ~ +150C (-40 ~ +302)

Powerful Cooling Performance

Optimally designed aluminum fins disperse heat away from the CPU via 5 heatpipes, while the high capacity 120mm fan quickly cools the heatsink for stable operation of high performance CPUs.

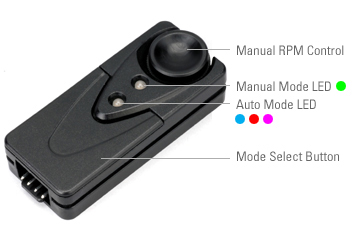

PWM Fan with Auto/Manual Control

Includes PWM Mate, the worlds first RPM controllable PWM fan speed controller, with the options of 3-Speed Auto or Manual Control Modes.

PWM Mate can be installed on the cases exterior by connecting with the included Extension Cable.

Ultra Quiet 120mm Blue LED Fan

Switching noise eliminated 120mm fan incorporated for ultra quiet operation and Blue LEDs for cool aesthetics.

Switching noise is the high frequency harmonic noise that can result from voltage regulation.

Black-Pearl Nickel Plating

The entire heatsink of CNPS10X Extreme is Black-Pearl Nickel Plated for long-term corrosion resistance, while the deep Black-Pearl tone along with the high intensity Blue LEDs reinforce its powerful aesthetics.

High Performance Super Thermal Grease ZM-STG2

The included all new high performance thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS10X Extreme for intensified cooling performance.

	Various mode change (Auto 3steps Mode)

	Default Setting: Auto-Low Manual

	Installable on the systems exterior or other preferred location.

Mode

LED Color

Fan Speed / Noise Level

Manual RPM Control

Auto	Low(Default Setting)	Blue	1000 - 1500rpm / 20 - 28dBA	Disabled
	Mid	Purple	1000 - 1950rpm / 20 - 35dBA
	High	Red	1000 - 2150rpm / 20 - 39dBA
Manual		Green	1000 - 2150rpm / 20 - 39dBA (User Defined)	Enabled

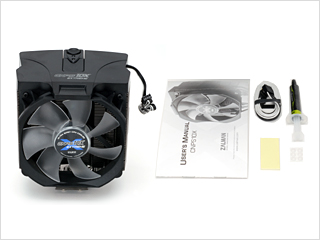

Common Components

- CNPS10X Extreme & PWM Mate
- Thermal Grease (ZM-STG2)
- Double-Sided Tape
- Extension Cable
- Washers
- Users Manual

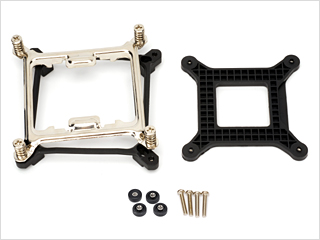

Components for Intel Socket 1156/775

- Socket 1156/775 Clip
- Socket 1156/775 Clip Support
- Socket 775 Backplate
- Socket 1156 Nuts
- Socket 1156/775 Bolts (Silver)

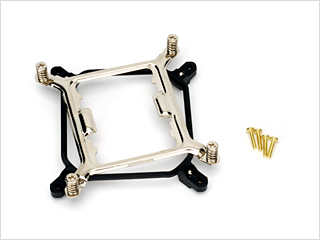

Components for Intel Socket 1366

- Socket 1366 Clip
- Socket 1366 Clip Support
- Socket 1366 Bolts (Gold)

Component for AMD Socket AM3/AM2+/AM2/754/939/940
	- AMD Clip

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year warranty

Full manufacturers warranty details are available at the manufacturers (Zalman) web site.
