All stock codes associated to this product
TPQ1200AP, TPQ-1200 AP, TPQ1200, TPQ-1200
Quattro 1200
1200W Continuous Power

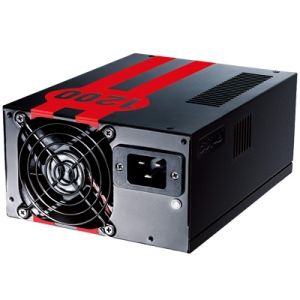

Take the lead with the TruePower Quattro 1200
Combining 1200 watts of stable and quiet power with cutting-edge efficiency and style, the TruePower Quattro 1200 blasts ahead of the competition. Six +12V rails deliver unbeatably stable power that earns the rare 80 PLUS Silver distinction, the highest independently certified standard in energy efficiency. Factor in the ultra-quiet Pulse Width Modulation fan, advanced cable management and the stylish racing stripe paint job, and the TruePower Quattro 1200 leaves every other power supply in the dust.
Features:
- PowerCache, a high-performance capacitor that delivers an extra power reserve when and where users need it most
- NVIDIA SLI - ready certified and ATI CrossFire certified
- 80PLUS Silver Certified - 85% or more efficiency at 20%, 50%, and 100% load
- Designed to support quad core, Core i7 and Core i5 CPUs, quad GPUs
- Six 12V output circuits and DC to DC Voltage Regulator Modules ensure supreme system stability
- 80mm cooling fan uses Pulse Width Modulation for whisper-quiet operation
- Advanced sleeved cable management improves airflow and reduces clutter
- Gold plated connectors for superior conductivity
- Industrial grade protection: OVP (Over Voltage Protection), UVP (Under Current Protection), SCP (Short Circuit Protection), and OCP (Over Current Protection)
- Universal Input and Active PFC allow the Quattro to operate efficiently on any power grid in the world
- Operating Temperature:
- Approvals: UL, CUL, FCC, TV, CE, C-tick, CCC, CB, BSMI
- TPQ-1200 OC edition available from select Antec resellers with the following overclocking features:
- Speed control knob for PSU cooling fan (Min. - Max.)
- +12V output voltage knob (11.8V - 12.4V)
- Two additional 6 PCI-E Connectors
- Two additional 8 (6+2) PCI-E Connectors
- Unit Dimensions:
- 3.4" (H) x 5.9" (W) x 7.9" (D)
- 86mm (H) x 150mm (W) x 200mm (D)
- Package Dimensions:
- 9.4" (H) x 12.4" (W) x 5.3" (D)
- 240mm (H) x 315mm (W) x 135mm (D)
- Net Weight: 7.0 lbs / 2.72 kg
- Gross Weight: 10.0 lbs / 4.53 kg
Certification:
Output table:
Output
Voltage Range
MAX Reg. OCP Set/
Point Ripple/
Noise
| |
+5V |
|
30.0A |
|
-3%~+5% |
|
40A |
50 |
| |
+12V1 |
|
38.0A |
|
-3%~+5% |
|
50A |
120 |
| |
+12V2 |
|
38.0A |
|
-3%~+5% |
|
50A |
120 |
| +12V3 |
38.0A |
-3%~+5% |
50A |
120 |
| +12V4 |
38.0A |
-3%~+5% |
50A |
120 |
| +12V5 |
38.0A |
-3%~+5% |
50A |
120 |
| +12V6 |
38.0A |
-3%~+5% |
50A |
120 |
| -12V |
0.5A |
-3%~+5% |
120 |
| +5VSB |
6A |
-3%~+5% |
50 |
| +3.3V |
25.0A |
-3%~+5% |
38A |
50 |
3.3V, +5V max. load: 170W
+12V1, 12V2, 12V3, 12V4, 12V5, 12V6 max. load: 100A
The continuous maximum total output power shall not exceed 1200W.
Input
| Input Voltage |
|
100~240VAC 10% |
| Input frequency Range |
|
47Hz ~ 63Hz |
| Efficiency |
|
85% or more |
