No Longer Available

Part Number:
126242
(?) Brand:
Manuf No:
W0355
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
All stock codes associated to this product
W0355, SPTTW0355, SP-TTW0355

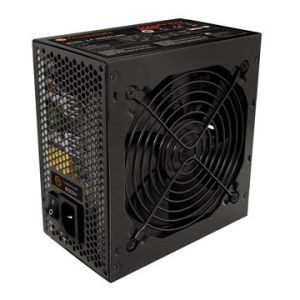

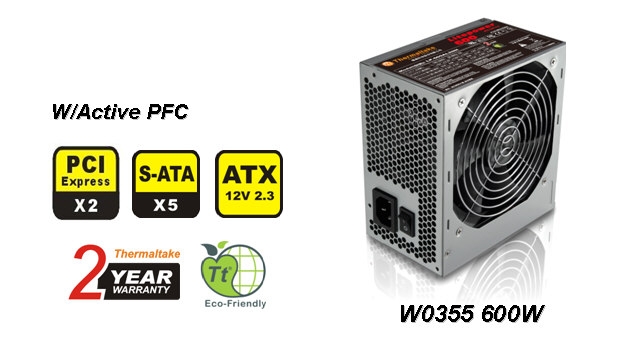

Litepower 600W

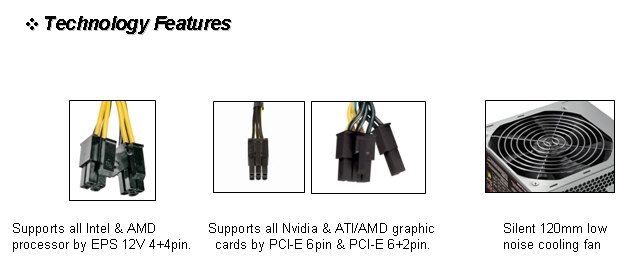

Features


Intel ATX 12V 2.3 enables most reliable and robust power delivery.
Intel & AMD CPU compliant.
Nvidia & ATI/AMD graphic card compatible.
Universal Input & Active PFC:100-240VAC input with automatic adjustment and active PFC for global usage.
Dedicated dual +12V rails ensures efficient power delivery to critical components within the PC.
High reliability: MTBF>100,000 hours.
Protections: Over Current, Over Voltage and short circuit protection.
Safety / EMI Approvals: UL/CUL, FCC, BSMI and GOST certified.
Dimension (W/H/D): 150mm x 86mm x 140mm

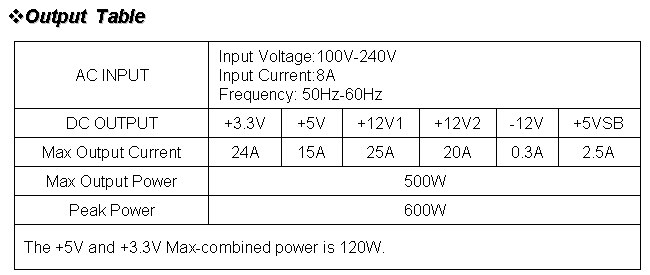

Specifications:

Model W0356 / W0355
Type Intel ATX 12V 2.3 & EPS 12V 2.91
Output Capacity 600W / 500W
Max. Output Capacity 700W / 600W

Dimension W / H / D 150mm x 84mm x 140mm
PFC Power Factor Correction Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum)@70% load,230Vac/50Hz
Input current 550W: 6A@115Vac, 3A@230Vac
Input Frequency Range 47Hz ~ 63 Hz
Input Voltage 700W: 10A@115Vac, 5A@230Vac
600W: 8A@115Vac, 5A@230Vac
Operating Temperature 10 to + 25
Operating Humidity 20% to 80%,non-condensing
Storage Temperature -40 to +70
Storage Humidity 5% to 95%, non-condensing
Cooling System 200010%R.P.M.
Efficiency 70% (min.) at normal AC input voltage and frequency
MTBF 100,000 hrs minimum
Safety Approval UL, TUV, CE, FCC,BSMI,GOST

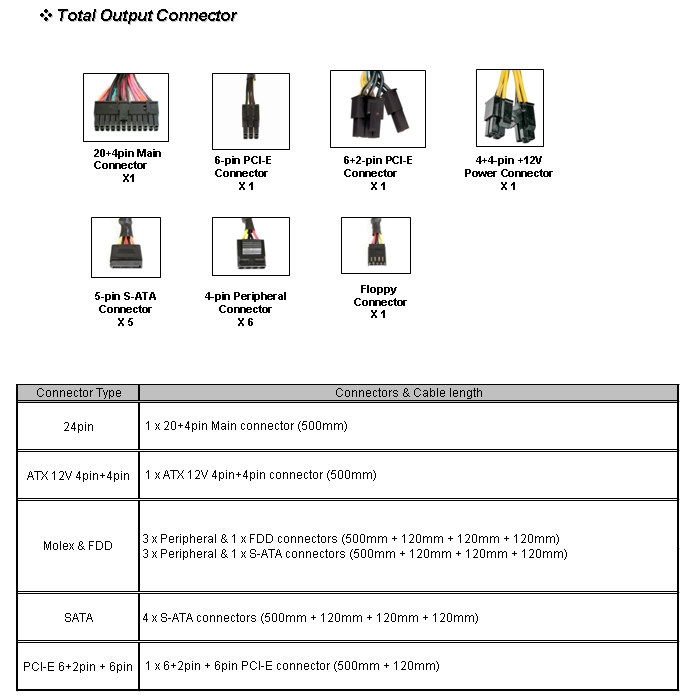

PCI-E adaptor cable 6Pin x 1, 8Pin x 1
Warranty 2 years




No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
