ASUS PCI-G31 Wireless Adapter - 802.11b/g, Up to 54Mbps, Windows 7 Ready - PCI

No Longer Available

Part Number:

126563

(?) Brand:

ASUS Web Site

Manuf No:

PCI-G31
PCIG31

Shipping Weight:

0.25 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

PCIG31, PCI-G31

PCI-G31

54Mbps 802.11b/g Wireless PCI Adapter

WPS(Wi-Fi Protected Setup) - Quickly set up a secure wireless connection
Software AP - Connects your notebook, PSP, or other game console to the Internet
Supports WEP, WPA, and WPA2 methods for enhanced security

Software WPS button

Just few clicks to setup an secure wireless environment!

Step 1: Click "WPS" icon on Utility and click "Next"	Step 2: Push WPS button* on ASUS wireless router	Step 3: Wireless setting done

*You are online!*

* Works with ASUS RT-N13U, WL-500GP_V2, WL-520GU, RT-G32 wireless router for WPS function

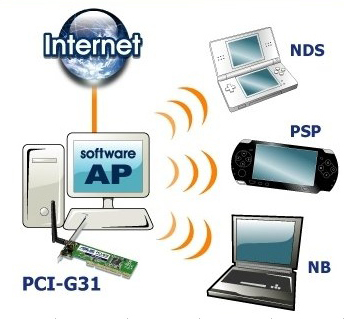

Software AP

Soft AP mode allows the WLAN card to act as a virtual access point.
The computer needs to be connected to a wired network using an Ethernet connection in order to provide network access to WLAN clients.

Specifications

Host interface	32-bit PCI v2.2
Standard	IEEE 802.11g IEEE 802.11b
Data Rate	802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps, TX burst mode support 802.11b: 1, 2, 5.5, 11Mbps
Modulation	OFDM, CCK (11Mbps, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps)
Solution	Direct Sequence Spread Spectrum
Network Architecture Types	Infrastructure and ad-hoc
Operating Frequency	2.412-2.462 GHz (N. America); 2.412-2.484 GHz (Japan); 2.412-2.472 GHz (Europe ETSI)
Operating Modes	11 for N. America, 14 Japan, 13 Europe (ETSI)
RF Output Power	11b: 15dBm, 11g: 12dBm
Antenna	Reverse connector (RP-SMA) with a detachable antenna
Power Adapter	Rx: 280mA Tx: 380mA
Receiver Sensitity	54Mbps: -72dBm @ 10% PER, 11Mbps: -85dBm @ 8% PER
Utilities	Wireless setting: Diagnose and configure your wireless network settings with on-line trouble shooting feature.
Windows XP Compatibility	Native support for all built-in WLAN functions, like Zeroconfig, Media Sense and 802.1X
Support OS	2000, XP(32/64), Vista(32/64) Linux, Mac 10.3/10.4/10.5
LED Indicator	Link
Security	64/128-bit WEP WPA-PSK,WPA2-PSK,IEEE802.1X,WPA,WPA2
Operating Temperature	0C ~40C
Operating Humidity	5 % ~ 95 % (non-condensing)
Storage Temperature	0C ~ 70C
Net Weight (app.)	54.4g
Coverage	Indoor 100m, outdoor 300 m

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
