Zalman ZM-MFC3 Fan Controller - 3x3-Pin, Power and temperature display

No Longer Available

Part Number:

127057

(?) Brand:

Zalman Web Site

Manuf No:

ZM-MFC3
ZMMFC3

Shipping Weight:

1.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

ZMMFC3, ZM-MFC3

	Real-Time Power Load Display

	FSTN Display for Wide Viewing Angles

	Temperature Monitoring of Up To 4 Components

	Fan RPM Monitoring & Control (3 x voltage, 1 x PWM)

	Timer Display

	Built-In Protection Circuit & Alarm

Dimensions	147(L) x 87(W) x 42(H) mm
Power & Temperature Display	10~999W/ -9.9 C~+99.9 C
Fan Compatibility	1 x 4-Pin(Supports fans with PWM function)
Fan Compatibility	3 x 3-Pin(Supports fans with RPM output function)
Fan RPM Control	PWM Regulation Method (Fan PWM)
Fan RPM Control	Voltage Control Method (Fan No.1~3)
Output Current	MAX 0.7A
Output Voltage	+4~11VDC
Input Voltage	+12VDC/+5VDC

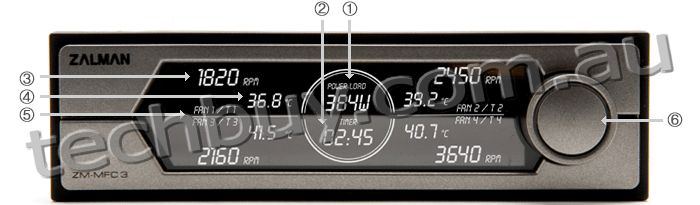

	Power Load Meter: Displays Power Load between 10 ~ 999W. Readings of 1 ~ 9W are shown as "Lo" and readings of 1000W+ are shown as "Hi".

	Timer: Timer shows Computer usage time and resets when Computer is turned OFF.

	RPM Display: RPM is displayed in units of 10RPM. Values of 200RPM and below are shown as "0". Values between 201 ~ 6000RPM are supported by the display.

	Temperature Display: Displays temperatures between -9C and 99C. Temperatures below -10C are shown as "Lo". The Display will blink temperatures between 80 ~ 99.9C and display "Hi" for temperatures above 99.9C.

	Fan Channel Display.

	Jog Wheel: Jog Wheel is used for adjusting Fan RPM and selecting a Fan Channel. RPM can be set from 60 to 6000RPM in units of 60RPM.

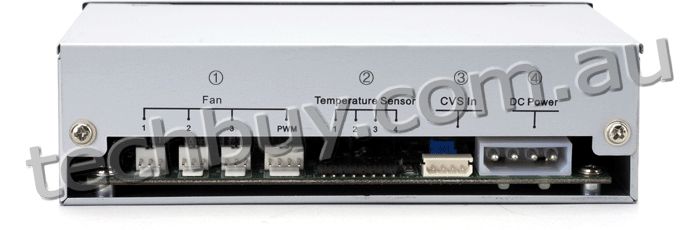

	Standard Fans (Fan 1~3): 3-Pin fans that support the RPM output function can be connected for use. PWM Fan : A 4-Pin fan that supports the PWM function can be connected for use.

	Temperature Sensor: Four temperature sensors can be connected.

	CVS Terminal: Receives the measured values of the CVS.

	Power Connector: Connects with the PSUs 4-Pin connector.

- One ZM-MFC3
- One CVS (Ampere/Voltage Sensor)
- One CVS Extension Bracket
- One Temperature Sensors
- One C3 Cable
- One Y Cable
- One 4-Pin Cable
- One 3-Pin Cable
- One Bracket Screw
- Four ZM-MFC3 Installation Screw
- One Users Manual

Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers.

	Plugging in the CVS Cable of the CVS into the motherboards USB port may damage the motherboard and CVS.

	If the current to be measured exceeds 10A (RMS), use a cable or conductor that allows current greater than the current to be measured to flow through it, and always connect protective grounding prior to use of this instrument.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12-month Manufacturer

Full manufacturers warranty details are available at the manufacturers (Zalman) web site.
