Socket |
|
CPU |
|
CPU Compatibility |
|
| Intel |
1156 |
Core i7 |
Supports all speeds |
| Core i5 |
| 1366 |
Core i7 |
Supports all speeds |
| 775 |
Core 2 Quad |
Supports all speeds |
| Core 2 Duo |
| Core 2 Extreme |
| Pentium Dual Core |
| Pentium D |
| Pentium 4 |
| Celeron D |
| AMD |
AM3 |
Phenom II |
Supports all speeds |
| Athlon II |
| AM2+ |
Phenom II |
Supports all speeds |
| Phenom |
| Athlon FX, Athlon 64 FX |
| Athlon X2, Athlon 64 X2 |
| Athlon, Athlon 64 |
| Sempron |
| AM2 |
Athlon FX, Athlon 64 FX |
Supports all speeds |
| Athlon X2, Athlon 64 X2 |
| Athlon, Athlon 64 |
| Sempron |
| 940 |
Dual-Core Opteron |
Supports all speeds |
| Opteron |
| Athlon FX, Athlon 64 FX |
| 939 |
Dual-Core Opteron |
Supports all speeds |
| Opteron |
| Athlon FX, Athlon 64 FX |
| Athlon X2, Athlon 64 X2 |
| Athlon, Athlon 64 |
| 754 |
Athlon, Athlon 64 |
Supports all speeds |
| Sempron |
|
| |
 |
| |
 |
| |
| Dimensions |
135(L) X 100(W) X 160(H)mm |
| Weight |
750g |
| Base Material |
Pure Aluminum and Pure Copper |
| Dissipation Area |
6,817 |
| Heatpipes |
5 x U-shaped heatpipes |
|
| |
 |
| |
| Bearing Type |
2 Ball-Bearing |
| Speed |
700 ~ 1400 rpm 10% (FAN MATE 2 connected) |
| Noise Level |
Not Measurable ~ 26 dBA 10% (FAN MATE 2 connected) |
| Input Voltage |
12V |
|
| |
| The fan operates at 1500 rpm 10%(28 dBA 10%) if directly connected to the motherboards power connector without the use of FAN MATE 2. |
| |
 |
| |
| Dimensions |
70(L) x 26(W) x 26(H) mm |
| Weight |
20g |
| Output Voltag |
5V ~ 11V 2% |
| Allowable Power |
6W or lower |
| Connector |
3-Pin |
|
| |
 |
| |
| Color |
Gray |
| Capacity |
3.5g |
| Specific Gravity @23C |
2.88 |
| Thermal Resistance |
8K/W |
| Thermal Conductivity |
4.1W/mK |
| Temperature Stability |
-40C ~ +150C (-40 ~ +302) |
|
| |
 |
 |
 Designed for Quiet Operation
The heatsink is optimized for high performance during quiet operation, incorporating a switching noise eliminated high capacity 120mm fan for intensified cooling performance and minimized noise.
Switching Noise is the high frequency harmonic noise that can result from voltage regulation.
|
|

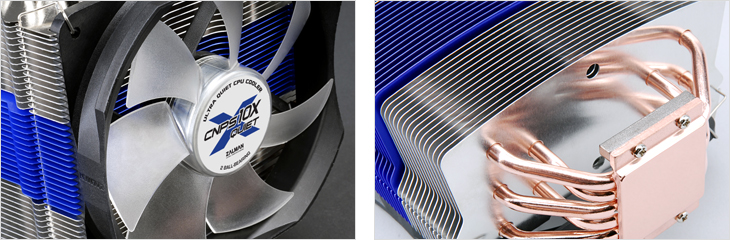

Powerful Cooling Performance
Optimally designed aluminum fins disperse heat away from the CPU via 5 heatpipes, while the high capacity 120mm fan quickly cools the heatsink for stable operation of high performance CPUs.
Fast & effective cooling for up to a maximum of 340W of heat.
|
|
| |
 |

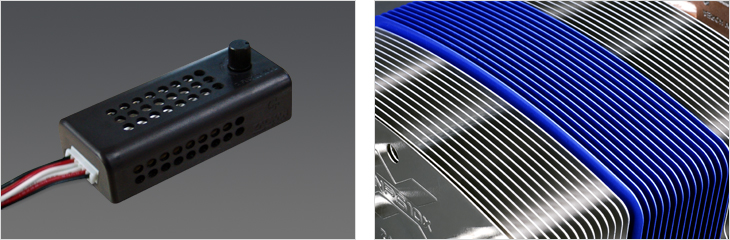

Adjustable Fan Speed Controller
FAN MATE 2 , an adjustable fan speed controller, is included for performance and noise level setting according to user preferences.
FAN MATE 2 can be installed on the enclosures exterior with the included extension cable.
|
|
Differentiated Design
Differentiated from typical U-shaped heatpipe coolers, a central band of blue anodized fins adds a sleek and cool aesthetic finish.
|
|
| |
 |

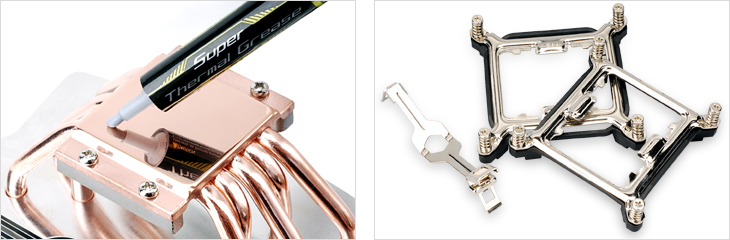

| High Performance Super Thermal Grease ZM-STG2
The included all new high performance thermal grease ZM-STG2 maximizes heat transfer from the CPU to the base of CNPS10X Quiet for intensified cooling performance.
|
|
Versatile Compatibility
CNPS10X Quiet accommodates a broad range of sockets.
Intel LGA1156/1366/775, AMD AM3/AM2+/AM2/754/939/940
|
|
| |
 |
 |
 |
| |

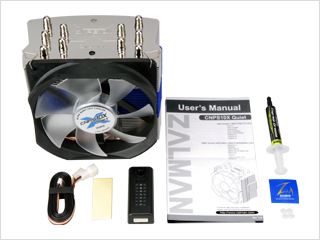

 Common Components |
| |
- CNPS10X Extreme & PWM Mate
- Thermal Grease (ZM-STG2)
- FAN MATE 2
- Double-Sided Tape
- FAN MATE 2 Cable
- Washers
- Users Manual |
|

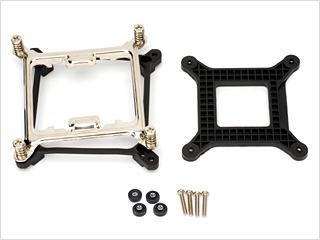

| Components for Intel Socket 1156/775 |
| |
- Socket 1156/775 Clip
- Socket 1156/775 Clip Support
- Socket 775 Backplate
- Socket 1156 Nuts
- Socket 1156/775 Bolts (Silver) |
|
| |
|
 |
 |
| |

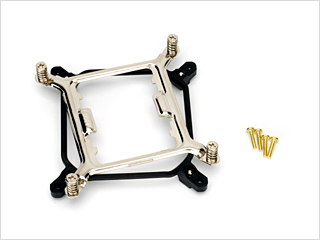

| Components for Intel Socket 1366 |
| |
- Socket 1366 Clip
- Socket 1366 Clip Support
- Socket 1366 Bolts (Gold) |
|
Component for AMD
Socket AM3/AM2+/AM2/754/939/940 |
| |
| - AMD Clip |
|
|
|
| |
 |
| Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers. |
| |
 |
 |
Use and keep product away from reach of children and pets. |
| |
 |
Do not ingest the Thermal Grease, and avoid its contact with skin and eyes. If contact is made with skin, wash off with water. If ingested or irritation persists, seek medical attention. |
| |
 |
To prevent possible injuries, gloves must be worn while handling this product. |
| |
 |
Excessive force exerted on the fan may cause damage to the fan and/or system. |
| |
 |
Avoid inserting objects into the fan while it is in operation. |
| |
 |
Check the components list and condition of the product before installation. If any problem is found, contact the retailer to obtain a replacement. |
| |
 |
Zalman is not responsible for any damages caused by overclocking. |
| |
 |
During transportation of the system, the cooler must be removed. |
| |
 |
Zalman is not responsible for any damages that occur during the transport of a system. |
| |
 |
Product design and specifi cations may be revised to improve quality and performance. |
|
