User Guide
|

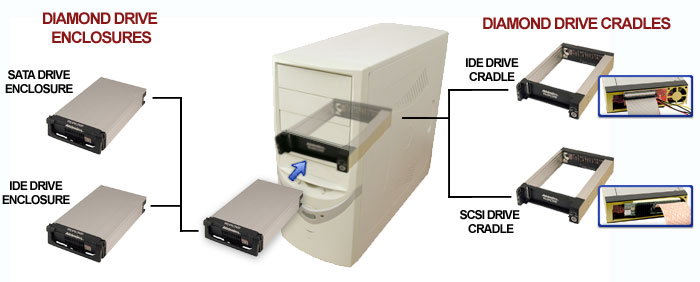

The Diamond Mobile Rack (MR) is designed to enable any SATA or IDE hard drive to be use as a removable hard drive via an Diamond IDE or SCSI drive cradle installed inside the standard 5 1/4" drive bay of a computer. Constructed in heavy gauge aluminum with precision finish for smooth operation, the Diamond MR is built to last while at the same time providing excellent heat dissipation for the hard drive.
With size slightly larger than a VCR cassette, the Diamond drive enclosure comes with both eSATA and SATA connector. The eSATA connector allows the Diamond drive enclosure to be used as an external eSATA hard drive using a standard eSATA cable and an optional power adapter. The Diamond drive enclosure can also be attached to the USB port of any computer with an optional USB - eSATA adapter.
The Diamond drive enclosure comes with built in eSATA port that allows the SATA or IDE hard drive to be used as an external eSATA hard drive by connecting with an optional eSATA cable and external power adapter. The SATA direct bridge inside the drive enclosure also isolates the SATA hard drive power and data connectors from the wears and tears incurred in some of the removable SATA or IDE hard drive system. 2.5" SATA or IDE hard drive can also be installed into the Diamond drive enclosure using the optional 2.5" hard drive mounting bracket.
Product Features
Drive enclosures features
- eSATA connector for external eSATA connection
- Can attach to USB port using optional USB - eSATA adapter
- Regular SATA connector for use as a removable hard drive via the Diamond Drive Cradle installed in a 5 1/4" drive bay
- Choice of SATA / SATAII or IDE hard drive enclosures
- Hard drive connectors are isolated by a Direct SATA bridge from wear and tear in removable drive application
- Support large hard drive beyond 137G with single partition.
- No interface cabling between drive and enclosure for reliable connection.
- No switch to set between internal and external hard drive application
- Compact size for easy transportation - slightly larger than a VCR cassette
- Sturdy aluminum body for use in rough environments
- Well ventilated design, good heat conduction without fan for quiet operation
- LED for both power and drive access
- Optional cooling fan available
- Simple hard drive installation
- Optional 2.5"/1.8" converter kit
Drive Cradle
- Mount inside any standard 5 1/4" drive bay
- Aluminum construction for effective heat dissipation inside any system
- Choice of IDE or SCSI LVD160 interface
- 4-pin Molex and 15-pin SATA power connector
- Drive Cradle keylock to secure Drive Enclosure and power on the drive
- Drive Cradle LED can be set to come from hard drive or from controller
- LED for both power and drive access
- OS support: DOS, Windows 95, NT(SP6), 98SE, Me, 2000, 2003 server, XP, Vista, Mac, Linux and Solaris
