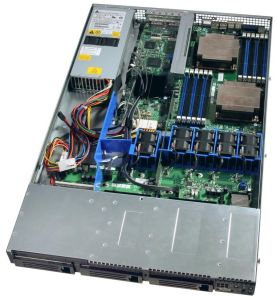

Intel SR1600URHS Barebones Server - 1U
  • Dual Xeon 55xx, 12xDDR3 Reg-ECC, 3xHot Swap SATA-II HDD Bays, RAID-0,1,10, 2xGigLAN, VGA, 600W PSU

IMG 1 of 1
No Longer Available
Part Number:
128083
(?) Brand:
Intel Web Site
Manuf No:
SR1600URHS
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
SR1600URHS

Intel Server System SR1600URHS (1U Hot-swap)
Intel Xeon Processor 5500 Series

Tech Specs
Product Description
Intel Server System SR1600URHS includes:
- One Intel Server Board S5520UR
- Front Panel Cable
- Three 3.5 Hot-swap Hard Drive carriers
- One full-height riser with PCI Express slot
- One fixed high-efficiently 600W power supply
- Three SATA and power cables
- Two processor heat-sinks

NOTE: Backplane not included, must be ordered sepparately

Chipset Supported
Intel 5520 Chipset with ICH10R
Form Factor
1U rack
Memory Capacity
12 DIMMs sockets supporting up to 96GB of DDR3 memory
Supported memory type:
800/166/1333 MT/s ECC Registered (RDIMM), or ECC Unbuffered (UDIMM) DDR3 memory

NOTE: Mixed memory is not tested or supported. Non-ECC memory is not tested and is not recommended for use in a server environment

See product Technical Specification for memory configuration details
Number of Processor
Two
Redundant Power Capable
No
Server Management
Integrated IPMI 2.0 compliant Baseboard Management Controller with remote management and KVM option
Slot Type
One x16 PCI Express* Gen 2 PCI riser slot capable of supporting a full-length full-height PCI Express* add-in card
Supported Operating System
- Microsoft Windows Server 2008* (32Bit & 64 Bit)
- Microsoft Windows Server 2003* Release 2; Service Pack 2 (32Bit & 64 Bit)
- Microsoft Windows Small Business Server 2003*; Release 2 (32Bit & 64 Bit)
- Red Hat* Enterprise Linux 5.2; Update 3 (32Bit & 64 Bit)
- SuSE* Linux Enterprise Server 10; Service Pack 2 (32Bit & 64 Bit)
Supported Processor
Two Intel Xeon processors 5500 series
System Bus Speed
Intel QuickPath Technology

Target Market
The high-performance, 1U rack-optimized system is ideal for enterprise data centers, with high-speed PCI Express* 2.0 and multiple I/O expansion modules that enable a wide array of flexible capabilities.

Technical Specifications
  Intel Server Board S5520UR
Front Bezel Features Power LED, hard-drive activity LED, two network activity LEDs, system-ID LED, system-status LED; power on/off button, system reset button, system ID button, and NMI switch
Dimensions 1.703 x 16.93 x 27.25
Drive Bays One slim-line SATA optical device
Front Connectors 1 USB and 1 Video connector
Hot Swap Drive Bays Three 3.5" (hot-swap)
Integrated Graphics On-board ServerEngines* LLC Pilot II BMC Controller with Intergrated 2D Video Controller and 64MB memory
Integrated LAN Two 10/100/100 Intel 82575 NICs with Intel I/O Acceleration Technology
Integrated RAID Intel Embedded Server RAID Technology, with SW RAID levels 0/1/10; with optional support for SW RAID 5 with activation key
Integrated SCSI N/A
Integrated SAS N/A
Integrated SATA Supports two SATA/SATA II SATA ports (3 Gb/ps)
Power Supply One 600W high efficient power supply
Serial Port N/A
Storage 6-port SATA (3 Gb/s) via ICH10R
Supported Operating System - Microsoft Windows Server 2008* (32Bit & 64 Bit)
- Microsoft Windows Server 2003* Release 2; Service Pack 2 (32Bit & 64 Bit)
- Microsoft Windows Small Business Server 2003*; Release 2 (32Bit & 64 Bit)
- Red Hat* Enterprise Linux 5.2; Update 3 (32Bit & 64 Bit)
- SuSE* Linux Enterprise Server 10; Service Pack 2 (32Bit & 64 Bit)
System Cooling Five non-redunant system fans
Total Slots One
USB Connections Four USB 2.0 connectors on the back and one on the front
Warranty Three-year limited

Items Included With This Product
Item Part Number MM# # Required Description
Intel Server System SR1600URHS (1U Hot-swap) SR1600URHSNA (Includes power cord for North America) and SR1600URHS 901126 (power cord included) or 900985 1 Intel Server System SR1600URHS includes:
- One Intel Server Board S5520UR
- Front Panel Cable
- Three 3.5 Hot-swap Hard Drive carriers
- One full-height riser with PCI Express slot
- One fixed high-efficiently 600W power supply
- Three SATA and power cables
- Two processor heat-sinks

NOTE: Backplane not included, must be ordered sepparately

No additional files, specification sheets, guides or documentation found for product.

Warranty: Three-year limited

Full manufacturers warranty details are available at the manufacturers (Intel) web site.
