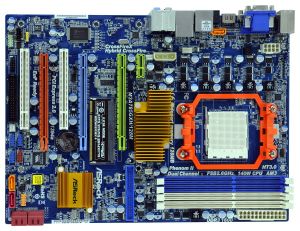

Asrock M3A785GXH/128M Motherboard
  • AM3, AMD 785G, SB710, HT 5200, 4xDDR3-1600, 3xPCI-Ex16 v2.0, 6xSATA-II, 1xeSATA, 1xATA-133, RAID, 1xGigLAN, 8Chl-HD, VGA/DVI/HDMI, ATX

IMG 1 of 1
No Longer Available
Part Number:
128842
(?) Brand:
Asrock Web Site
Manuf No:
M3A785GXH/128M
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
M3A785GXH/128M
  1. Support for Socket AM3 processors: AMD Phenom II X4 / X3 / X2 (except 920 / 940) and Athlon II X4 / X3 / X2 processors
  2. ASRock DuraCap (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
  3. Supports CPU up to 140W
  4. AMD 785G + SB710 Chipsets
  5. Supports AMD OverDrive with ACC feature (Advanced Clock Calibration)
  6. FSB 2600 MHz (5.2 GT/s)
  7. Supports Hyper-Transport 3.0 (HT 3.0) Technology
  8. Supports Dual Channel DDR3 1600(OC)/1333/1066/800 (4 x DIMM slots) non-ECC, un-buffered memory, Max. capacity up to 16GB
  • Integrated AMD Radeon HD 4200 graphics, DX10.1 class iGPU, Shader Model 4.1, Max. shared memory 512MB
  • Built-in 128MB DDR3 1333(OC)/1200MHz SidePort Memory
  • 3DMARK 06 3499 marks by Integrated AMD Radeon HD 4200 graphics
  • Supports ATI CrossFireX, Hybrid CrossFireX and 3-Way CrossFireX
  • 3 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8 mode, orange @ x4 mode)
  • Three VGA Output options: D-Sub, DVI-D and HDMI
  • Supports HDCP function
  • Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
  • 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions
  • 1 x eSATAII Port
  • Supports 2 x IEEE1394 ports (one port on back panel, one header on board)
  • PCIE Gigabit LAN 10/100/1000 Mb/s
  • Supports ASRock Instant Boot, Instant Flash
  • Supports Smart BIOS, EZ OC, ASRock OC Tuner, Intelligent Energy Saver
  • EuP Ready
  • 7.1 CH Windows  Vista Premium Level HD Audio (ALC888Audio Codec).
  • Windows  Vista Premium 2008 Logo Ready
  • I/O Panel: 1 x VGA/D-Sub Port, 1 x VGA/DVI-D Port, 1 x HDMI port, 1 x Optical SPDIF Out Port, 1 x IEEE 1394 port, 1 x eSATAII Port,1 x RJ-45 LAN Port with LED, 6 x USB 2.0 Ports


Product Specifications

General
CPU - Support for Socket AM3 processors: AMD Phenom II X4 / X3 / X2 (except 920 / 940) and Athlon II X4 / X3 / X2 processors
- Supports CPU up to 140W
- Supports AMD OverDrive with ACC feature (Advanced Clock Calibration)
- AMD LIVE! Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology
Chipset - Northbridge: AMD 785G
- Southbridge: AMD SB710
Memory - Dual Channel DDR3 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 1600(OC)/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows  XP and Windows  Vista. For Windows  XP 64-bit and Windows  Vista 64-bit with 64-bit CPU, there is no such limitation.
BIOS - 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
- CPU, NB, mGPU, Sideport, VCCM Voltage Multi-adjustment
- Supports Smart BIOS, EZ OC
Audio, Video and Networking
Graphics - Integrated AMD Radeon HD 4200 graphics
- DX10.1 class iGPU, Shader Model 4.1
- Max. shared memory 512MB
- Built-in 128MB DDR3 1333(OC)/1200MHz SidePort Memory
- Three VGA Output options: D-Sub, DVI-D and HDMI
- Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)
- Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports HDCP function
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
- 3DMARK 06 3499 marks by Integrated AMD Radeon HD 4200 graphics*

*System Configuration
AMD Athlon II X3 405e(OC), GPU@ 1100MHz(OC), DDR3-2133(OC) 2GB x 2, 128MB DDR3-1066 SP, Windows  Vista 32, 3DMark 06 (1024x768)
Audio - 7.1 CH Windows  Vista Premium Level HD Audio (ALC888 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111DL
- Supports Wake-On-LAN
Expansion / Connectivity
Slots - 3 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8 mode, orange @ x4 mode)
- 1 x PCI Express 2.0 x1 slot
- 2 x PCI slots
- Supports ATI CrossFireX, Hybrid CrossFireX and 3-Way CrossFireX
Connector - 6 x SATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions
- 1 x eSATAII 3.0 Gb/s connector (shared with 1 SATAII port)
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x COM port header
- 1 x IEEE 1394 header
- 1 x HDMI_SPDIF header
- CPU/Chassis/NB/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- SLI/XFire power connector
- CD in header
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Rear Panel I/O I/O Panel
- 1 x PS/2 Keyboard Port
- 1 x VGA/D-Sub Port
- 1 x VGA/DVI-D Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 1 x IEEE 1394 Port
- 1 x eSATAII Port
- 6 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Unique Feature - ASRock OC Tuner
- Intelligent Energy Saver
- Instant Boot
- ASRock Instant Flash
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD OverDrive Utility, AMD Live! Explorer, AMD Fusion
Accessories - 1 x ASRock SLI/XFire Switch Card
- Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 Cables
- 2 x SATA Data Cables (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/NB/Power Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)
OS - Microsoft  Windows  7 / 7 64-bit / Vista / Vista 64-bit / XP / XP Media Center / XP 64-bit compliant
Certifications - FCC, CE, WHQL
- EuP Ready (EuP ready power supply is required)
