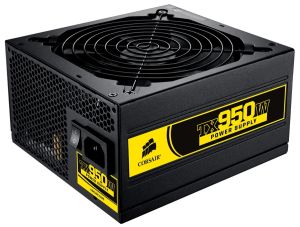

CMPSU-950TX | Corsair 950W TX-950 - ATX 12V v2.3, EPS 12V v2.91, 140mm Fan, SLI Ready, 80 PLUS Certified

The TX Series 950W is part of Corsairs best price-performance range of power supplies, designed to meet the exacting standards and performance needs of demanding gamers. TX Series power supplies are ideal for gamers and performance enthusiasts who require anaffordable, high-wattage, reliable and highly efficient PSU for their home and gaming PCs. Corsair TX Series PSUs are compatible with the latest Intel and AMD platforms and Nvidia and ATi multi-graphics configurations.

Corsair TX950W Features:

• Guaranteed to sustain its full rated wattage at an ambient temperature
  of 50C
• Up to 85% energy efficiency under real-world load conditions
• Single +12V rail design providing up to 78A
• Multi-GPU ready
• 105C solid-state capacitors
• Active Power Factor Correction (PFC) with PF value of 0.99
• Supports ATX12V 2.3 and EPS12V 2.91 standards, and is backward compatible with ATX12V 2.01
• Auto switching circuitry for universal AC input from 90-264V
• Over Current/Voltage/Power Protection, Under Voltage Protection and Short Circuit Protection provide complete component safety
• Dimensions: 150mm(W) x 86mm(H) x 160mm(L)
• MTBF: 100,000 hours
• Safety Approvals: UL, CUL, CE, CB, FCC Class B, TV, CCC, C-tick

Corsair TX950W Connectors:

Connectors Included	#
ATX 24 pin & 20 pin compatible	x1
EPS/ATX12V 8-4 pin	x1
PCI-E 6+2 pin	x6
SATA	x12
4 pin Peripheral	x8
Floppy	x2
