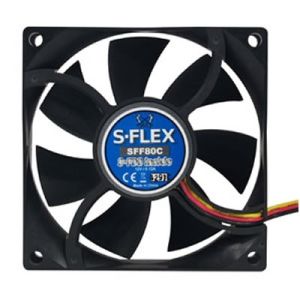

SC-SFF80C-2000rpm | Scythe S-Flex Fan - 80x80x25, Fluid Dynamic Bearing, 2000rpm

Model #	Dimension (mm)	Fan Speed	Fan Noise	Air Flow	Rated Current
SFF80A	80x80x25	1,000 rpm	4.5 dBA	14.3 CFM 24 m/h	0.04 A
SFF80B	80x80x25	1,500rpm	12.2 dBA	21.5 CFM 37 m/h	0.08 A
SFF80C	80x80x25	2,000rpm	20.0 dBA	28.7 CFM 49 m/h	0.12 A
SFF80D	80x80x25	2,800rpm	32.4 dBA	40.2 CFM 68 m/h	0.20 A

Weight: 80 g | 2.82 oz|
Rated Voltage: DC12V
Connector: 3-pin (4-pin adaptor included)
-FDB (Fluid Dynamic Bearing by SONY Corporation)

MTBF: 150,000 hours

The following environment factors are advised for S-FLEX Quiet Fan.
Operating Temperature: -10C ~ 70C (14F ~ 158F)
Storing Temperature: -25C ~ 70C (-13F ~ 158F)
Avoid extreme humid environment and non condensing environment.

* S-FLEX is registered trademark of SONY Corp.

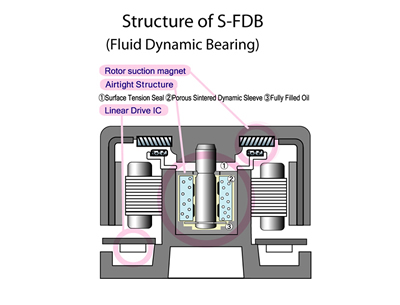

Equipped with Genuine S-FDB* Bearing
This fan is equipped with genuine S-FDB (SONY Fluid Dynamic Bearing) made by SONY corporation.

Market Leading Low-Noise Level
S-FDB technology drastically eliminates the friction between the bearing and the shaft which makes this fan nearly inaudible to human ears. Additional suction magnet optimizes the magnetic force balance within the rotor to achieve absolute silence. To even further achieve the absolute silence, the fan is equipped with the Linear drive IC for reducing electromagnetic noise.

Outstanding Long Life of 150,00 Hours
Patent Pending "S-FDB" structure allows the fan to last up to 150,000 hours.

Anti-Shock Ability
Conventional ball bearing carries a point contacting structure for rotation. This gives a point supporting situations and dropping impact which can damage the ball bearing surface leading to irregular noise. The S-FDB carries a surface contact mechanism for improved anti-shock structure, which is 5 times stronger than the conventional ball bearing.
