- AMD Phenom II processor
- AMD OverDrive provides tuning options using the new Advanced Clock Calibration overclocking feature.
- Socket 938 AM3+ 45nm
|
|
|
|
|
- HyperTransport 3.0 (5200MT/s)
|
|
|
|
|
- AMD chipset
- Northbridge: AMD 785G
- Southbridge: AMD SB710
|
|
|
|
|
- Four 240-pin DDR3 DIMM sockets
- Supports DDR3 1600(O.C.)/1333/1066/800 MHz
- Dual channel (128-bit wide) memory interface
- Supports non-ECC unbuffered DIMMs
- Supports up to 16GB system memory
- 128MB DDR3 Sideport memory
|
|
|
|
|

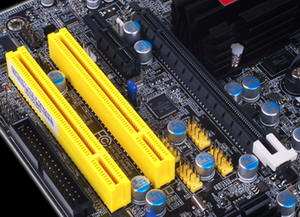

- 1 PCI Express (Gen 2) x16 slot
- 1 PCI Express x1 slot
- 2 PCI slots
|
|
|
|
|
- Award BIOS
- CMOS Reloaded
- 8Mbit SPI Flash ROM
|
|
|
|
|
- Integrated ATI Radeon HD 4200 graphics core
- Onboard graphics interface
- HDMI port for both digital audio and video HD display
- DVI-I port for digital LCD display (DVI-D signal only)
- Microsoft DirectX 10.1
- CrossFireX (Hybrid Graphics) technology combines the onboard GPU and a discrete PCIE graphics card
- Onboard Performance cache for added performance
|
|
|
|
|
- Realtek ALC885 High Definition audio CODEC
- 8-channel audio output
- DAC SNR/ADC SNR of 106dB/101dB
- Full-rate lossless content protection technology
- Optical S/PDIF-out and coaxial RCA S/PDIF-out interfaces
|
|
|
|
|
- JMicron JMC250 PCIE Gigabit LAN controllers
- Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards
|
|
|
|
|
- Supports up to 6 SATA devices
- SATA speed up to 3Gb/s
- RAID 0, RAID 1 and RAID 0+1
|
|
|
|
|
- One IDE connector allows connecting up to two UltraDMA 133Mbps hard drives
|
|
|
|
|
- 1 mini-DIN-6 PS/2 mouse port
- 1 mini-DIN-6 PS/2 keyboard port
- 1 HDMI-out port
- 1 coaxial RCA S/PDIF-out port
- 1 optical S/PDIF-out port
- 1 VGA port
- 1 DVI-I port (DVI-D signal only)
- 4 USB 2.0/1.1 ports
- 1 RJ45 LAN port
- Center/subwoofer, rear R/L and side R/L jacks
- Line-in, line-out (front R/L) and mic-in jacks
|
|
|
|
|
- 4 connectors for 8 additional external USB 2.0 ports
- 1 connector for an external COM port
- 1 front audio connector
- 1 S/PDIF connector
- 6 Serial ATA connectors
- 1 40-pin IDE connector
- 1 floppy connector
- 1 24-pin ATX power connector
- 1 8-pin 12V power connector
- 1 front panel connector
- 1 download flash BIOS connector
- 6 fan connectors
|
|
|
|
|
- ACPI and OS Directed Power Management
- ACPI STR (Suspend to RAM) function
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard/Mouse
- Wake-On-Ring
- Wake-On-LAN
- RTC timer to power-on the system
- AC power failure recovery
|
|
|
|
|
- Monitors CPU/system/chipset temperature
- Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages
- Monitors the speed of the cooling fans
- CPU Overheat Protection function monitors CPU temperature during system boot-up
|
|
|
|
|
- microATX form factor
- 24.5cm (9.64) x 24.5cm (9.64)
|
|
|
