Introduction
The P55A-UD5 motherboard is designed to offer a stable, high-speed platform for delivering amazingly fast data transfer via the GIGABYTE 333 onboard acceleration technologies. Featuring the worlds first USB 3.0 logo certified host controller from NEC Electronics, P55A-UD5 allows users to take advantage of super fast USB transfer rates of up to 5Gbps, delivering 10x faster data transfer compared to USB 2.0.
Utilizing the industry's first Serial ATA Revision 3.0 solution, the Marvell 88SE9128 controller, GIGABYTE P55A-series motherboards offer support for next generation high speed data storage devices with data transfer speeds of up to 6 Gbps. Coupled with RAID 0 (Stripe) mode, SATA Revision 3.0 enables a data transfer boost of up to 4x the speed of SATA Revision 2.0.
The P55A-UD5 introduce a unique hardware design with lower resistance fuses for ensuring lower voltage drops and providing more stable and plentiful power delivery. All USB ports also benefit from a 3x power boost for better power delivery to power hungry USB devices. |
 |
 |
|

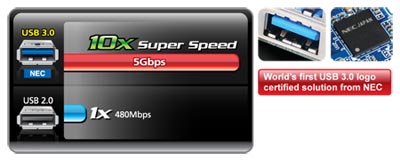

USB 3.0 Support
The GIGABYTE P55A-series motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard NEC uPD720200 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard NEC SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.
 |
|
 |
|

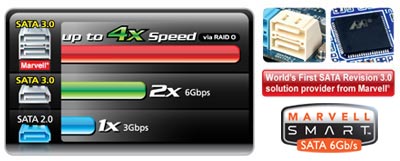

SATA 6 Gbps Support
Yet another onboard feature of GIGABYTE P55A motherboards are Marvells new SE9128 chips for high-speed SATA Revision 3.0 compatibility, delivering superfast 6Gbps link speeds for twice the data transfer rates of SATA Revision 2.0 (3 Gbps). When used in RAID 0 (Stripe) mode, GIGABYTE P55A series motherboards offer even faster data transfer rates of up to 4x the speed of current SATA interfaces.
 |
|
 |
|

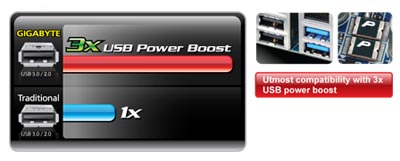

3x USB Power Boost
GIGABYTE P55A-series motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTEs unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
 |
|
| |
|
Ultra Durable 3
GIGABYTE Ultra Durable 3 design, featuring 2 ounces of copper for both the Power and Ground layers which dramatically lowers system temperature by delivering a more efficient spreading of heat from critical areas of the motherboard such as the CPU power zone throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2oz Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking...more |
|
| |
|
Benefits of 2 oz Copper PCB
Cooler than traditional motherboards
Enhanced durability
Improved energy efficiency
Greater margins for overclocking... more |
|
| |
|
Smart 6- A Smarter way for PC system Management
GIGABYTE Smart 6 is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6 allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.
|
|
| |
|
Windows 7 WHQL Certified
The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft for an Intel-based motherboard, setting the standard for future Windows 7 certified motherboards...more |
|
 |
|
Smart Dual LAN
GIGABYTE Smart Dual LAN technology features intelligent LAN port auto-switching between the 2 physical Gigabit LAN chips; offering hassle free, zero downtime, high speed network connectivity. |
|
 |
|
Dynamic Energy Saver 2
GIGABYTE Dynamic Energy Saver 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button. |
|
| |
|
Intel Core i7/ Core i5 LGA 1156 Processors
The Intel brand new computing architecture based on the innovation of micro-architecture transforms 3-chip solutions to a 2-chip platform. The next generation Intel Core i7/ Core i5 processors with LGA1156 package integrate graphics and memory controller to support dual channel DDR3 memory. Supporting Intel Turbo Boost technology and Hyper-Threading Technology, Intel Core i7/ Core i5 processors provide the overwhelming performance with optimized power efficiency. |
|
| |
|
DDR3 2600+ Support
P55A-UD5 support Intel Core i7/ Core i5 processors delivering native support for DDR3 memory up to 2600+MHz by the enhanced design of GIGABYTE, Intel Core i7/ Core i5 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance.
* Please refer "Memory Support List" for memory support information |
|
 |
|
Smart TPM - A smarter , better way to protect your data
TPM function is optional due to different regional policy
GIGABYTE Smart TPM provides the industry's highest level of data protection with 2048 bit hardware encryption. Smart TPM allows users to store their digital key on a USB thumb drive. In addition, Smart TPM allows users to lock the protected data remotely using a Bluetooth enabled mobile phone. |
|
 |
|
eSATA/USB combo
eSATA/USB combo ports provides significant convenience by supporting eSATA and USB devices in one port, and requires no additional power source when connecting eSATA/USB combo devices through the applicable cable. |
|
 |
|
XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease
Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive. |
|
 |
|
AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power for you simply by your bluetooth cell phone when you are away from your computer |
|
| |
|

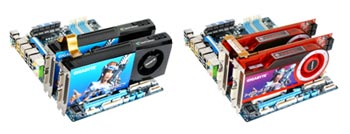

Multi-display support with ATI CrossFireX and NVIDIA SLI
P55A-UD5 supporting both ATI CrossFireX and NVIDIA SLI delivers the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
 |
|
| |
|
Thermal Design
Inspired by the performance and sleek lines of today's modern racing vehicles, GIGABYTE's stylish thermal solution is designed for extreme performance and ultra coolness |
|
 |
|
Dolby Home Theater Support
Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones |
|
 |
|
Norton Internet Security
Fast, comprehensive, and up-to-the-minute protection against online threats. It safeguards your computer, identity, and home network without slowing you down. It sets a new standard for speed and makes online shopping, banking, and browsing safer and more convenient than ever. |
