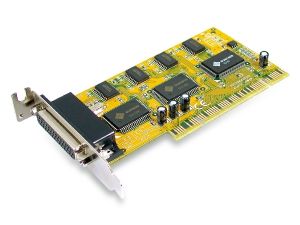

Sunix SER4056AL Serial IO Card - 4-Port Serial (via 1-Port Breakout Cable) , Low Profile - PCI

IMG 1 of 1
No Longer Available
Part Number:
129174
(?) Brand:
Sunix
Manuf No:
SER5056AL
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
29/10/2009
Details Files Images & Video
All stock codes associated to this product
SER5056AL, IDSUNCOMCARD4LP, IDSUN-COMCARD-4LP, 47107473882741, 4710747388274
SUNIX SER4056AL, Universal PCI serial communication board, allows users to add or expand four RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER4056A card has 32-bytes onboard FIFO buffer and compatible with 16C650 UART specification. SUNIX GoldenIO card series is designed with SUNIX UART controller, SUN1889 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.

Features

  • Expands 4 independent RS-232 serial ports with communication speeds up to 115.2Kbps
  • High speed SUN1889 16C650 compatible UART controller on-board
  • Compliance with PCI 33MHz Ver 2.2 & 2.1 specification
  • Supports both 64-bit 32-bit PCI bus slot and 3.3V & 5V power
  • On-chip hardware auto flow control to guarantee no data loss
  • Built-in ?2KV ESD protection for all serial signals
  • Plug-n-Play, I/O address and IRQ assigned by BIOS
  • Certified by CE, FCC, RoHS, and Microsoft WQHL approval
  • Support Microsoft Windows, Linux, and DOS

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 months*

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
