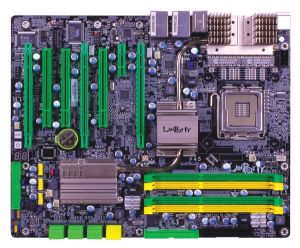

DFI Lanparty UT P45-T3RS Motherboard
LGA775, P45, ICH10R, 1333FSB, 4xDDR3-1800, 2xPCI-Ex16 v2.0, 8xSATA-II, 1xATA-133, RAID, 1xGigLAN, 8Chl-HD, Firewire, ATX

No Longer Available

Part Number:

129180

(?) Brand:

DFI Web Site

Manuf No:

LANPARTY UT P45-T3RS
LANPARTY UT P45T3RS

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

LANPARTYUTP45T3RS, LANPARTY UT P45-T3RS, UT-P45-T3RS

LANParty P45 series has become the first choice of the over-clock player. In order to meet the player who wants to challenge the extreme performance, LANParty launches P45 Flagship Edition [UT P45-T2RS] and [UT P45-T3RS]. Excellent efficiency is the basis for [UT] products, which is named as Ultra Tweak; the comprehensive over-clock design, top materials, and fine work are where the UT spirit is.

Intel P45 with ICH10R

Supports Intel Core 2 Duo / Quad / Extreme processors

Supports CrossFire X

8-Phase Volterra Full Digital PWM

LANParty adopts solid capacitors & MLCC for the best stability.

EZ Clear
When you have to clear CMOS setting into default, you don't need to open the case anymore! There is a unique circuit in LANParty UT series, just press "Power" & "Reset" buttons in the motherboard or PC case at the same time, the CMOS will be set into default.

Realtek ALC885 for 8CH HD Audio in Bernstein card

Debug LED
How to know system status when crash or unstable? With LANParty digit diagnosis LED, user can get system status information immediately.

8 SATAII Ports with RAID Function

Supports Intel SATAII with RAID 0/1/0+1/5 and JMB363 controller supports additional 2 SATAII ports and 1 IDE port with RAID 0/1, which intends to provide multiple H.D.D RAID function for enthusiastic users.

Dual Gbe LAN with Teaming by Marvell 88E8052+8053

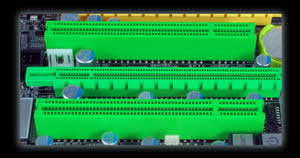

Fluorescent Slot & Connectors

We adopt fluorescent slots and connectors in all LANParty series. With installing UV light into PC case, LANParty motherboards become more stylish.

	Auto Boost System
	ABS is "two-step" over-clocking software. Simply install the software, reboot the computer, press to improve FSB frequency, and your CPU will be upgraded automatically! With ABS, you can enjoy the performance of the high-end CPU at the entry-level cost.

	Genie BIOS
	Genie BIOS is the best BIOS in the world. There are hundreds of setting of CPU, memory, FSB, multiple, and great voltage setting with the most intervals.

CMOS Reloaded
"CMOS Reloaded" helps you to backup or reload BIOS setting as text file under operation system. Wanna manage your OC records? Just try "CMOS Reloaded"

1 PCIe x4, 1 PCIe x1, 3 PCI, 1 IDE

2 IEEE1394 Ports & 12 USB 2.0 Ports

LANPARTY UT P45-T3RS

CPU

LGA 775 socket for: - Intel Core2 Quad and Intel Core2 Duo
Supports Intel Enhanced Memory 64 Technology (EMT64T)
Supports Enhanced Intel SpeedStep Technology (EIST)
Supports Intel Hyper-Threading Technology

FSB/QPI/HT

1333/1066/800MHz FSB

Chipset

Intel chipset
- Northbridge:
Intel P45 Express chipset
Intel Fast Memory Access technology
- Southbridge: Intel ICH10R

System Memory

Four 240-pin DDR3 DIMM sockets
Supports DDR3 1800(O.C.)/1600/1333/1066 MHz
Delivers up to 21Gb/s bandwidth at 1333MHz
Supports dual channel (128-bit wide) memory interface
Supports non-ECC unbuffered DIMMs
Supports up to 8GB system memory
Windows 32-bit operating system is unable to accurately detect more than 4GB system memory. Therefore, if you are using this operating system, we strongly recommend that you install a less than 3GB system memory.

Expansion Slots

2 PCI Express (Gen 2) x16 slots dimensionally (PCIE 1 and PCIE 3)
- With x16 transfer rate lanes for PCIE 1 (16-lane ports)
- With x8 transfer rate lanes for PCIE 3 (8-lane ports)
- 2-way CrossFire at x8/x8 (8-lane ports) bandwidth
- 2-way CrossFire + Physics at x8/x8/x4 bandwidth
1 PCI Express x16 slot dimensionally with x4 transfer rate lanes for PCIE 4 (4-lane ports)
1 PCI Express x1 slot with x1 transfer rate lane for PCIE 2 (1 lane port)
3 PCI slots

BIOS

Award BIOS
8Mbit SPI flash memory
CMOS Reloaded

Audio

Bernstein audio module
- Realtek ALC885 8-channel High Definition Audio CODEC
- Center/subwoofer, rear R/L and side R/L jacks
- Line-in, line-out (front R/L) and mic-in jacks
- 2 coaxial RCA S/PDIF-in/out jacks
- 1 optical S/PDIF connector
- 1 CD-in connector
- 1 front audio connector
DAC SNR/ADC SNR of 106dB/101dB
Full-rate lossless content protection technology

LAN

Marvell 88E8052 and Marvell 88E8053 PCIE Gigabit LAN controllers
Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards

Serial ATA

Intel ICH10R chip
- Intel Matrix Storage technology
- Supports up to 6 SATA devices
- SATA speed up to 3Gb/s
- RAID 0, RAID 1, RAID 0+1 and RAID 5
JMicron JMB363 PCI Express to SATA and PATA host controller
- Supports 2 SATA devices
- SATA speed up to 3Gb/s
- RAID 0 and RAID 1

IDE

2 UltraDMA 100Mbps IDE devices

IEEE 1394

VIA VT6307
Supports two 100/200/400 Mb/sec

Rear Panel I/O

1 Mini-DIN-6 PS/2 mouse port
1 Mini-DIN-6 PS/2 keyboard port
1 IEEE 1394 port
6 USB 2.0/1.1 ports
2 RJ45 LAN ports

Internal I/O

3 connectors for 6 additional external USB 2.0 ports
1 connector for an external COM port
1 connector for an IEEE 1394 port
1 connector for the Bernstein audio module
1 IrDA connector
1 CIR connector
8 Serial ATA connectors
1 40-pin IDE connector
1 floppy connector
1 24-pin ATX power connector
1 8-pin 12V power connector
2 4-pin 5V/12V power connectors (FDD type)
1 front panel connector
6 fan connectors
1 diagnostic LED
EZ touch switches (power switch and reset switch)

Power Management

ACPI and OS Directed Power Management
ACPI STR (Suspend to RAM) function
Wake-On-PS/2 / Wake-On-USB Keyboard/Mouse
Wake-On-LAN and Wake-On-Ring
RTC timer to power-on the system
AC power failure recovery

Hardware Monitor

Monitors CPU/system/Northbridge temperature and overheat alarm
Monitors Vcore/Vdimm/Vnb/VCC5/12V/V5sb/Vbat voltages
Monitors the speed of the cooling fans
CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat

PCB

6 layers, ATX form factor;
24.5cm (9.64") x 30.5cm (12")

All specifications above are subject to change without prior notice.
